DATAVIDEO SE-900 8 Channel Modular SD Vision Mixer / Switcher (Does not include Input Cards)

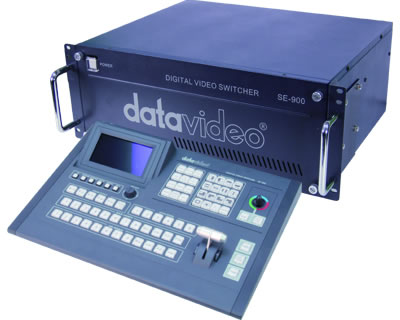

Datavideo SE-900 is a modular 8-channel SD switcher with a feature set that may be expanded with additional input cards and accessories. The two piece unit consists of a 19-inch rack mountable main frame, that holds up to 8 input cards, and a control panel. The modular switcher accepts a mix of 8 SD input of your choice including DV, SDI, YUV and Composite Video. Standard outputs include DV,  YUV, S-Video (Y/C) and Composite Video.

SE-900 features a built in frame synchroniser and TBC for each channel for flicker free switching between all 8 inputs - in any format.

The preview output includes both next source and next effect, enabling the producer to preview any effects in confidence before "going live" SE-900 features a down stream keyer for easy integration with character generator software such as Datavideo CG-100.

The SE-900 can connect / control the DN-200 (using the included GPI cable).
For more information click here.

To accommodate for any delay in DV or SDI equipment SE-900 includes an audio delay function as well as a DV/SDI audio embedder.

• Up to 8 inputs available for any format including SDI, DV, YUV,
• Composite Video
• Outputs include SDI, DV, YUV, S-Video (Y/C) & Composite Video
• Multi image preview panel allows the producer to monitor all live sources
  (up to 8 input) as well as Program & Next source
• Easy adjustable audio delay for perfect video/audio sync with DV & SDI sources
• SDI Audio embedder
• Audio input & output includes RCA (phono) and balanced audio via XLR
• Optional dual chromakeyer, where each keyer can accept two foreground inputs and two background inputs.
• Picture in Picture
• Tally output
• GPI & RS-232 control interface for integration with existing equipment (GPI Cable included)
• SDI Graphics overlay interface for optimal quality of character generator software such as Datavideo CG-100.
• No genlock is required - for flicker free switching

Input / Output Cards (optional)

• DV Input Board (With audio de-embedding)
• CV/SV/YUV Input Board
• SDI Input Board (With audio de-embedding)
• 4 Channel Chromakey Board (from any input)
• SDI Output Board
• DVI Input Board
