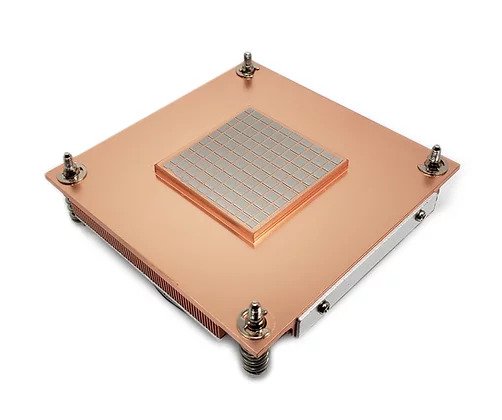

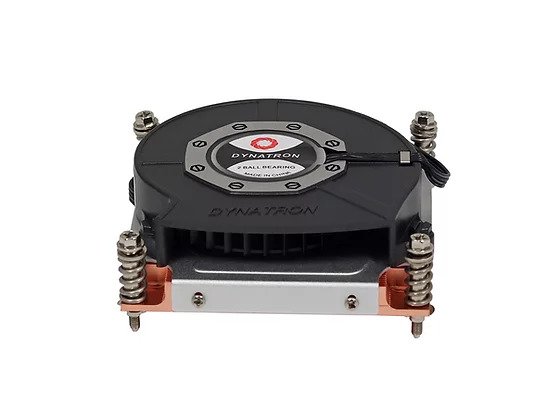

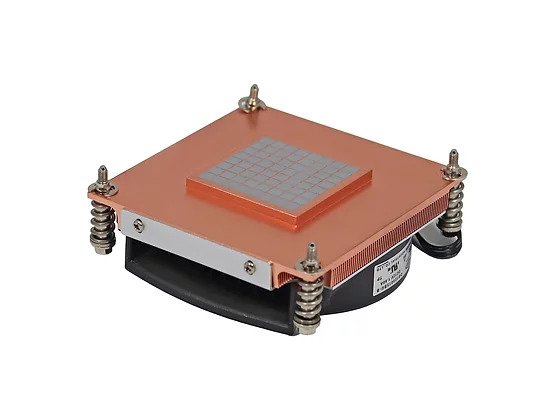

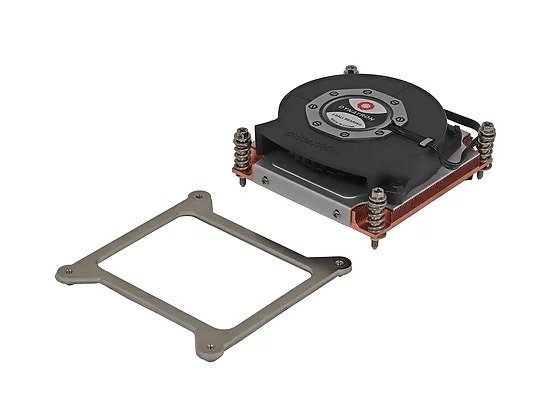

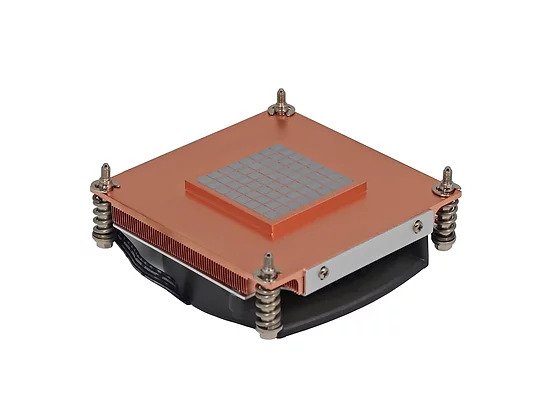

Dynatron Q3 Intel 1700 Blower with PWM function, All-Copper Active Cooler for 1U Server Solution, Support 125 Watts CPU TDP

CPU Support

Intel

CPU Socket

LGA 1700

Solution

1U Server

Dimensions

90.0 x 90.0 x 28 mm

Weight

444 ± 5 g

Material

Copper Heatsink with Skiving Fins

Fan Dimension

Ø80.0 x 15.0 mm

Speed

At Duty Cycle 0~20%: 1000±200 RPM

At Duty Cycle 50%: 3500±10% RPM

At Duty Cycle 100%: 7000 RPM

Bearing

Double Ball

Rated Voltage

12V

Power

At Duty Cycle 0~20%: 0.60 W

At Duty Cycle 50%: 3.84 W

At Duty Cycle 100%: 19.2 W

Air Flow

At Duty Cycle 0~20%: 6.5 CFM

At Duty Cycle 50%: 11.2 CFM

At Duty Cycle 100%: 22.28 CFM

Noise Level

At Duty Cycle 0~20%: 21.5 dBA

At Duty Cycle 50%: 43.0 dBA

At Duty Cycle 100%: 59.14 dBA

Static Pressure

At Duty Cycle 0~20%: 2.27 mm-H2O

At Duty Cycle 50%: 18.56 mm-H2O

At Duty Cycle 100%: 74.18 mm-H2O

Lead Wire Pin Out

Pin1-Black (-)
Pin2-Yellow (+)
Pin3-Green (Techometer/Signal output)
Pin4-Blue (PWM)
