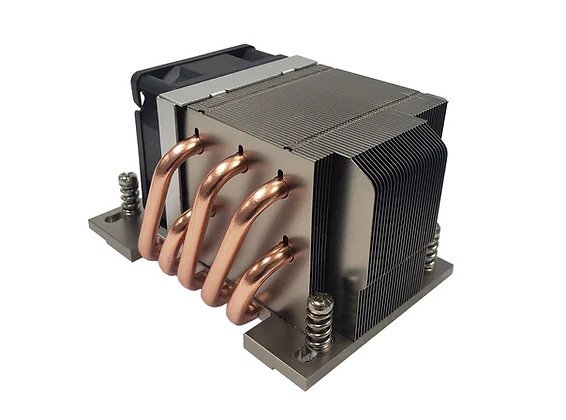

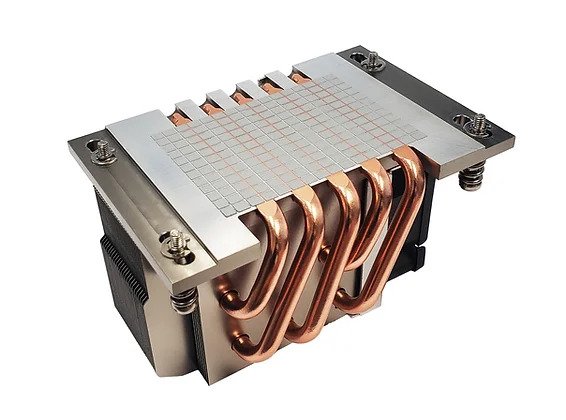

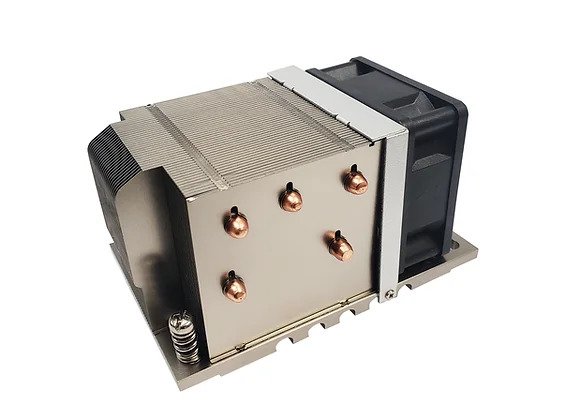

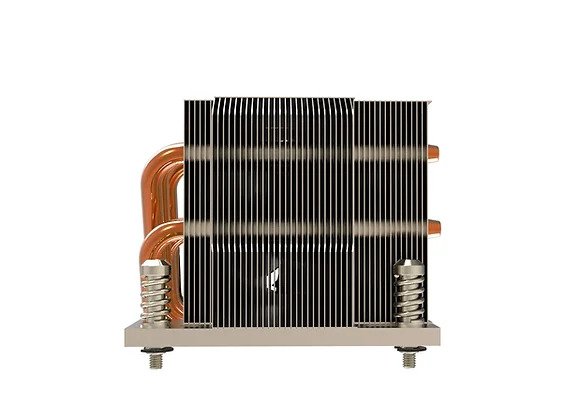

Dynatron T17 AMD EPYC/Threadripper Processor, Socket SP3, Side-Blower 60x60x25mm PWM fan, Support CPU power up to 280 Watts

CPU Support

AMD

CPU Socket

sWRX8/sTRX4/TR4/SP3

Solution

2U Server and Up

Dimensions

119.0 x 79.0 x 66.0 mm

Material

Aluminum Heatsink with Heatpipe Embedded

Fan Dimension

60 x 60 x 25 mm

Speed

At Duty Cycle 20%: 2300 ± 200 RPM
At Duty Cycle 50%: 5400 ± 10% RPM
At Duty Cycle 100%: 11000 ± 10% RPM

Power

At Duty Cycle 20%: 0.84 W
At Duty Cycle 50%: 2.76 W
At Duty Cycle 100%: 18.0 W

Bearing

Ball Type, Double

Rated Voltage

12V

Air Flow

At Duty Cycle 20%: 11.91 CFM
At Duty Cycle 50%: 28.38 CFM
At Duty Cycle 100%: 58.31 CFM

Noise Level

At Duty Cycle 20%: 25.8 dBA
At Duty Cycle 50%: 44.4 dBA
At Duty Cycle 100%: 59.8 dBA

Air Pressure

At Duty Cycle 20%: 1.48 mm-H2O
At Duty Cycle 50%: 7.54 mm-H2O
At Duty Cycle 100%: 28.8 mm-H2O
