8 Ports 6Gb/s SAS/SATA RAID Adapters

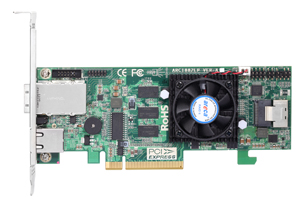

ARC-1882i/1882x/1882LP
( 8 Ports 6Gb/s SAS/SATA RAID Adapters)

ARC-1882ix-12/16/24
(16-28 Ports 6Gb/s SAS/SATA RAID Adapters )

SAS 2.0 is designed for much higher speed data transfer than previous available and backward compatibility with SAS 1.0. The 6Gb/s SAS interface supports both 6Gb/s and 3Gb/s SAS/SATA disk drives for data-intensive applications and 6Gb/s or 3Gb/s SATA drives for low-cost bulk storage of reference data. The ARC-1882 family includes 8 ports low profile as well as full height 12/16/24 internal ports with additional 4 external ports models.



	6Gb/s SAS PCI RAID Card Model Name ARC-1882i ARC-1882x ARC-1882LP I/O Processor Dual Core RAID-on-Chip 800MHz On-Board Cache 1GB on-board DDR3-1333 SDRAM Driver Connector 2 x SFF-8087 2 x SFF-8088 1 x SFF-8087 1 x SFF-8088 Form Factor (LxH) Low Profile: 169.5 x 64.4 mm
	6Gb/s SAS PCI RAID Card Model Name ARC-1882-ix-12 ARC-1882-ix-16 ARC-1882-ix-24 I/O Processor Dual Core RAID-on-Chip 800MHz On-Board Cache One 240-pin DIMM socket with default 1GB of ECC DDR3-1333 single rank registered SDRAM (1Rx8 or 1Rx16), upgradable to 4GB Driver Connector 3 x SFF-8087 1 x SFF-8088 4 x SFF-8087 1 x SFF-8088 6 x SFF-8087 1 x SFF-8088 Form Factor (LxH) Full Height: 250 x 98.4 mm
	*	Purchasing Information: ARC-1882DIX-12/16/24 means default 1GB DDR3-1333 SDRAM with ECC protection, upgradable to 4GB.
	For the products photo link: http://www.areca.com.tw/support/photo_gallery.htm
	Adapter Architecture
		Dual Core RAID-on-Chip (ROC) 800 MHz processor
		PCIe 3.0/2.0 x8 lane host interface (PCB version 3.0 supports PCIe 3.0 x8 lanes)
		1GB on-board DDR3-1333 SDRAM with ECC (ARC-1882LP/1882i/1882x)
		One 240-pin DIMM socket for DDR3-1333 ECC single rank registered SDRAM module using x8 or x16 chip organization (1Rx8 or 1Rx16), upgrade from 1GB (default) to 4GB (ARC-1882ix-12/16/24)
		Write-through or write-back cache support
		Support up to 4/8/12/16/24 internal or 4/8 external 6Gb/s SAS ports
		Multi-adapter support for large storage requirements
		BIOS boot support for greater fault tolerance
		BIOS PnP (plug and play) and BBS (BIOS boot specification) support
		Support EFI BIOS for Mac Pro
		NVRAM for RAID event & transaction log
		Redundant flash image for controller availability
		Battery Backup Module (BBM) ready (Optional) Model: ARC-6120BA-T121
		RoHS compliant
	RAID Features
		RAID level 0, 1, 10(1E), 3, 5, 6, 30, 50, 60, Single Disk or JBOD
		Multiple RAID 0 and RAID 10(1E) support (RAID 00 and RAID100)
		Multiple RAID selection
		Online array roaming
		Offline RAID set
		Online RAID level/stripe size migration
		Online capacity expansion and RAID level migration simultaneously
		Online volume set growth
		Instant availability and background initialization
		Support global and dedicated hot spare
		Automatic drive insertion/removal detection and rebuilding
		Greater than 2TB capacity per disk drive support
		Greater than 2TB per volume set (64-bit LBA support)
		Support intelligent power management to save energy and extend service life
		Support NTP protocol synchronize RAID controller clock over the on board Ethernet port
		Multiple pairs SSD/HDD disk clone function
		SSD automatic monitor clone (AMC) support
		Controller level hardware encryption function support
	Monitors/Notification
		System status indication through global HDD activity/fault connector, individual activity/fault connector, LCD/I2Cconnector and alarm buzzer
		SMTP support for email notification
		SNMP support for remote manager
		Enclosure management (SES-2, SMP and SGPIO) ready
	RAID Management
		Field-upgradeable firmware in flash ROM
	In-Band Manager
		Hot key "boot-up" McBIOS RAID manager via M/B BIOS
		Web browser-based McRAID storage manager via ArcHttp proxy server for all operating systems
		Support Command Line Interface (CLI)
		API library for customer to write monitor utility
		Single Admin Portal (SAP) monitor utility
		Field-upgradeable firmware in flash ROM
	Out-of-Band Manager
		Firmware-embedded web browser-based McRAID storage manager, SMTP manager, SNMP agent and Telnet function via Ethernet port
		API library for customer to write monitor utility
		Support push button and LCD display panel (option)
	Operating System
		Windows 8/Server2012/7/2008/Vista/Server 2003/XP
		Linux
		FreeBSD
		VMware (only driver package available w/o management utility)
		Solaris 10/11 x86/x86_64
		Mac OS X 10.4.x/10.5.x/10.6.x/10.7.x/10.8.x
	Environmental Specifications
	Operating: Temperature:+5°c to +60°c   Humidity: 15-80%   non-condensing   Storage Temperature: Temperature:-40°c to 70°c   Humidity: 5-90%   non-condensing
	Electrical
	Power Dissipation: 12V+3.3V ARC-1882i/x/LP 12.51W (11.6W+0.91W) ARC-1882ix-12/16/24 28.81W (26.91W+1.9W)
