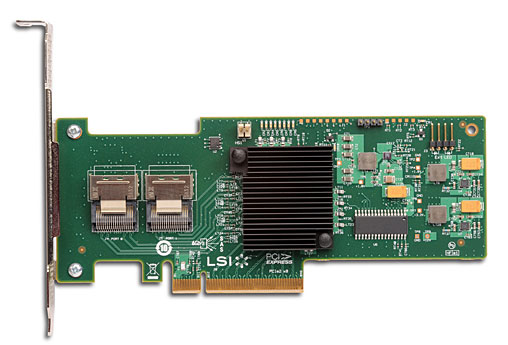

LSI MegaRAID SAS 9240-8i SGL
LSI00200
LSI MegaRAID SAS 9240-8i SGL
Sorry, but this product is no longer available to purchase online.
Please contact us to discuss alternative products which may be suitable.
Please contact us to discuss alternative products which may be suitable.
Product Description
The eight-port MegaRAID SAS 9240-8i, supports data transfer rates of up to 6Gb/s per port, brings new features and improved performance to entry-level server applications using up to 64 SATA or SAS devices.
In the Box:
MegaRAID SAS 9240-8i, LP bracket, Driver & Documentation CD (Cables not included)
MegaRAID SAS 9240-8i Sgl Features
- 6Gb/s data transfer rate
- Eight internal 6GB/s SATA+SAS ports
- Two x4 Mini-SAS Internal connectors (SFF8087)
- LSISAS2008 controller
- PowerPC 440 @ 533MHz
- RAID 0, 1, 5, 10, 50 and JBOD mode
- Hardware RAID solution
- x8 PCI Express 2.0 host interface
- Low-profile form factor
- Supports up to 64 physical devices
- Up to 16 physical devices in a RAID configuration
- Patrol read
- Consistency Check
- S.M.A.R.T error detection
- Power management support
- MegaRAID Storage Manager
- Environmentally friendly with a low-power controller and cardboard packaging
Specifications
| Solution Provided | Low-cost, green SATA+SAS RAID solution for high-density servers and workstations with the flexibility to use both SATA and SAS hard drives and solid state drives | |
| Physical Dimensions | 6.6" X 2.536" (Low-Profile) | |
| Connectors | Internal Two X4 Mini-SAS SFF8087 (vertical orientation) |
|
| Max Number of Physical Devices | Non-Raid: 64 RAID 0: 16 per volume RAID 1: 2 per volume plus hotspare |
RAID 5: 16 per volume RAID 10: 16 per volume RAID 50: 16 per volume |
| Host Bus Type | 8-lane, 5 GT/s PCI Express 2.0 Compliant | |
| Data Transfer Rates | Up to 6Gb/s per port | |
| SAS Controller | LSISAS2008 | |
| Key RAID Data Protection Features |
|
|
| RAID Managment | MegaRAID Management Suite - MegaRAID Storage Manager™ - MegaCLI (command-line interface) - WebBIOS |
|
| Environments | Operating 0°C to 70°C 5 to 90% Non-condesing |
Storage -45°C to 105°C 5 to 90% Non-condesing |
| PCI Card Type | 3.3V Add-in Card | |
| PCI Voltage | +12V±10% | |
| PCI Power | 13.5W | |
| PCI Modes | Bus Master DMA | |
| LED Indicators | Internal Activity/Fault per x4 port - Hearbeat |
|
| MTFB | >2,000,000 Hours | |
| Compliances | EMC: Class B-US (CFR 47, P15B); Canada (ICES-003); Japan (V-3/02.04); Europe (EN55022/EN55024); Australia/New Zealand (AS/NZS 3548); Safety: EN60950 | |
| OS Support | Microsoft® Windows®, Linux® (SuSE®, Red Hat®), Solaris®, Vmware®. See www.lsi.com/support for details on versions. | |
| Ordering Information | LSI SAS 9240-8i Single Pack P/N: LSI00200, LSI SAS 9240-8i Kit P/N: LSI00204 | |
| Brackets | Full Height and Low-Profile | |
| Warranty | 3 years, advanced replacement option, free technical support at lsi.com/support | |
