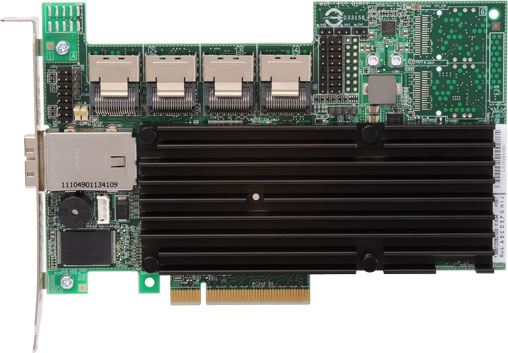

LSI MegaRAID SAS 9280-16i4e SGL
LSI00210Please contact us to discuss alternative products which may be suitable.
16-Port Internal / 4-Port External PCI Express SATA and SAS RAID Controller
In the Box:
MegaRAID SAS 9280-16i4e, LP bracket, Driver & Documentation CD (Cables not included)
MegaRAID SAS 9280-16i4e Features
- Twenty 6Gb/s SATA+SAS ports
- Four Mini-SAS internal connectors (SFF-8087)
- One Mini-SAS external connector (SFF-8088)
- LSISAS2108 6Gb/s RAID-on-Chip
- 800MHz PowerPC®
- 512MB 800MHz DDRII cache memory
- Optional battery backup module (Remote mount only)
- RAID Levels 0, 1, 5 and 6
- RAID Spans 10, 50 and 60
- Internal drive storage and external JBOD expansion
- PCI Express® 2.0 provides faster signaling for high-bandwidth applications
- Connect up to 240 3Gb/s and 6Gb/s SATA and SAS devices
- Support for LSI Advanced Software options including FastPath, CacheCade, SafeStore, and Recovery
Specifications
| Solution Provided | Sixteen-port internal / Four-port external SATA+SAS solution for internal drive storage and external JBOD expansion using up to 240 SAS and/or SATA devices | |
| Physical Dimensions | Half-Length, Full Height (6.6” x 4.376”) | |
| Internal Connectors | Four Mini-SAS SFF8087 4i internal connectors | |
| External Connectors | One Mini-SAS SFF8088 4x external connector | |
| Device Support | Up to 240 SAS and/or SATA devices | |
| Host Bus Type | x8 lane PCI Express 2.0 Compliant | |
| Data Transfer Rates | Up to 6Gb/s per port | |
| I/O Processor/SAS Controller | LSISAS2108 RAID on Chip (ROC) and LSISAS2x36 Expander | |
| Cache Memory | 512MB 800MHz DDR II SDRAM | |
| Key RAID Data Protection Features |
|
|
| Operating Temperature | Maximum ambient: 60°C (45°C w/iBBU) | |
| Operating Voltage | +3.3V | |
| Warranty | 3 years, free advanced technical support, advanced replacement option | |
| Regulatory Certifications | EN55022, EN55024, EN60950, EN 61000-3-2, EN 61000-3-3; FCC Class A, Class B; UL1950; UL; CSA C22.2; VCCI; RRL for MIC; BSMI; C-tick | |
| RAID Management | MegaRAID Management Suite -MegaRAID Storage Manager -MegaCLI (command-line interface) -WebBIOS |
|
| OS Support |
Extensive support includes Microsoft® Windows® Vista/2008/Server 2003/2000/XP, Linux®, Solaris™ (x86), Netware®, FreeBSD®, VMware® and more. |
|
