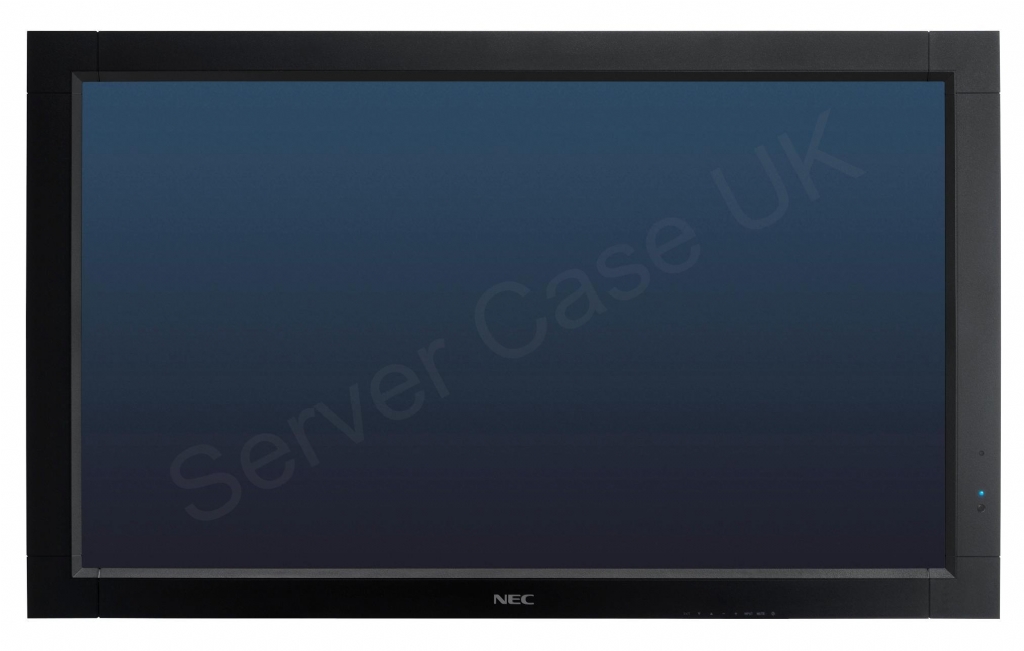

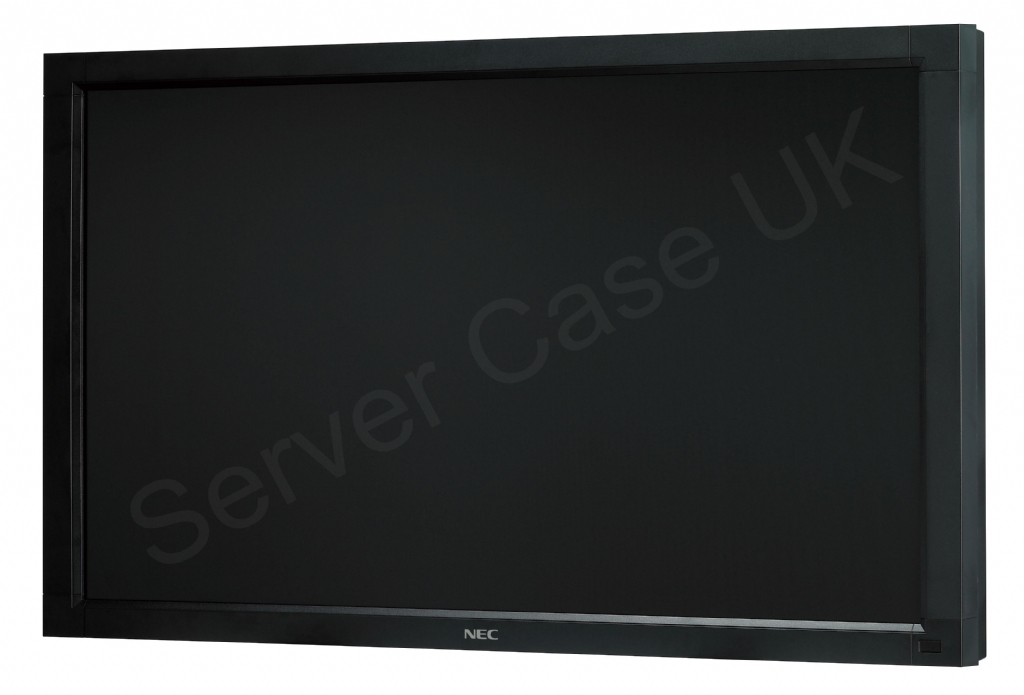

NEC MultiSync V322 (32 inch) LCD Public Display 3000:1 340cd/m2 1366x768 8ms HDMI/DisplayPort

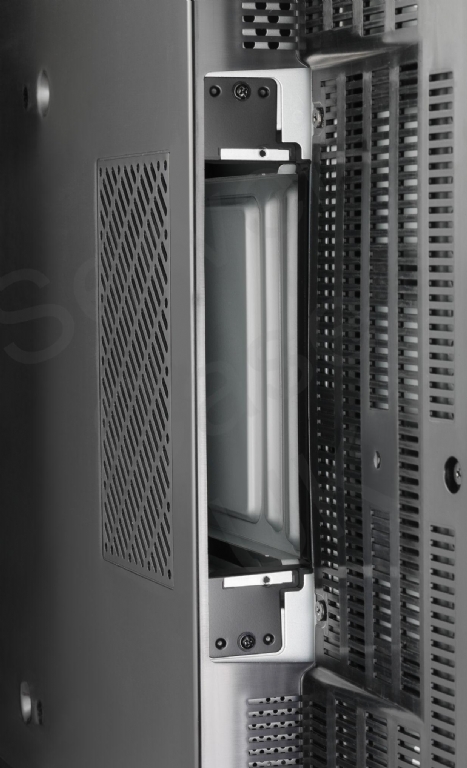

MultiSync V322 is the first NEC 32 inch public display to feature an option slot. The STv2 slot (OPS compatible) allows for the integration of various PC, HDSDI and other solutions extending the connectivity and flexibility beyond industry standards for 32 inch public displays. V322 is also the first public display on the market boasting SNMP supported LAN and alarm emails in the unlikely event the display experiences any problems. Ideal for any cost efficient retail signage and applications such as baggage belt, info screens and check-in counter displays.

Features

• Programmable Ambient Light Sensor
• Colour Matching
• DICOM support
• Special Characteristics

Specifications

Compliance
Certifications	CE; T�V GS; C-tick; Energy Star 5.1; FCC Class B; UL/C-UL or CSA; PSB; VCCI; RoHS
Display
Screen Type	S-PVA
Brightness	340cd/m2
View Angle	178� (Horizontal - Max) x 178� (Vertical - Max)
Contrast Ratio	3,000:1 (Static)
Response time	8ms
Resolution (Native)	1366 x 768 Pixels WXGA
Backlight	CCFL
Resolution (Maximum)	1920 x 1080 Pixels
Aspect Ratio	16:9
Screen Dimensions	32in Viewable screen size - 31.5in Display Area - 69.77 x 39.23cm
Scan Frequency (Horizontal)	31.5KHz to 91.1KHz (Digital)
Scan Frequency (Vertical)	50Hz to 85Hz (Digital)
Electrical
Power Management Features	VESA DPMS
Power Consumption	190W (Max) / 1W (Standby)
Environmental
Environmental	Operating Temperature 5 to 40�C - Humidity 20 to 80%
General
Model Name	V322
Product Family	MultiSync
Product Type	Display
Warranty	3 Years Warranty Including Backlight
Barcode	5028695108745
Interfaces/Ports
Audio Line Out Ports	1 x 3.5mm Mini Jack
VGA In	1 x 15-pin D-Sub (RGB)
Digital In	1 x DVI-D (with HDCP)
S-Video in	1 x S-Video
Video Composite In	1 x Composite (BNC)
Audio Line In Ports	1 x 3.5mm Mini-Jack
Serial Ports	1 x RS-232 Input � 1 x RS-232 Output
Video Component In	1 x Component Video
HDMI Ports	1 x HDMI 1.3 (with HDCP)
DisplayPort In	1 x DisplayPort (with HDCP)
Digital Out	1 x DVI-D (with HDCP)
RJ-45 Ports	1 x RJ-45
Network (Wired)
Network Interface	10/100Mbps
Physical
In The Box	Display � Power Cable � VGA cable � Free LAN control software (download) � Remote Control
Wall Mount	Yes , VESA Compliant - 200mm x 200mm
Case Colour	Black
Dimensions	78.68cm (W) x 9.35cm (D) x 47.62cm (H) - Weight 12.1kg
Remote
Remote Control	Included
Sound
Speakers	2 x 8W
System
Plug and Play	VESA DDC2Bi
