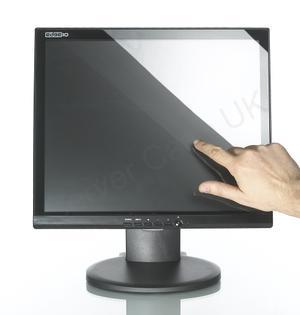

Edge10 TS701 17 inch Multimedia Touch Screen LCD Monitor (Black)

This monitor is fitted with a 5-wire touch screen which provides high clarity, exceptional durability and reliability. An ideal solution for repetitive applications such as POS, office and hospitality applications. The screen is pressure sensitive and so will work equally well with any input device such as a stylus or finger. It comes fitted with a height adjustable stand which can be easily removed allowing it be wall mounted. Just like the entire Edge10 range this monitor is backed by a three year on site exchange warranty.

Features

• Screen Size: 17 inch
• Resolution: 1280 x 1024
• Type: Five Wire Resistive
• Interface: RS232 and USB
• Features: Height Adjustable

Specifications

Display
Monitor	17in Active matrix TFT LCD
Screen Type	16.2 Million Colours
Graphics Resolution Type	SXGA+
Resolution (Native)	1280 x 1024 Pixels
Pixel Pitch	0.264mm
Brightness	300cd/m2
Contrast Ratio	450:1 (Static)
Response time	5ms
Scan Frequency	31.5 to 80KHz (Horizontal) x 50 to 75Hz (Vertical)
Tilt (Forward/Backward)	-5 to +15�
Electrical
Power Consumption	50W (Max) / <3W (Standby)
Environmental
Environmental	Operating Temperature 0 to 40�C - Humidity 20 to 80%
General
Model Name	TS701
Product Type	Display
Warranty	Three year on-site exchange
Barcode	4712302920677
Interfaces/Ports
VGA In	1 x 15-pin D-sub
Synch Input	TTL Separate Sync
USB Ports	1 x USB
Serial Ports	1 x RS-232
Physical
Display Type	LCD Monitor
Case Colour	Black
Security Locking Mechanics	Kensington Lock
Dimensions	37.8cm (W) x 50.0cm (D) x 38.7cm (H) - Weight 7.56kg
Sound
Speakers	2 x 2 Watt
System
Plug and Play	DDC1/2B
System Requirements
Operating Systems Supported	Microsoft Windows 95/98/98SE/Me/NT4/2000/XP/Vista
Touchscreen
Touchscreen	Yes
Touchscreen Technology	5-wire Resistive
