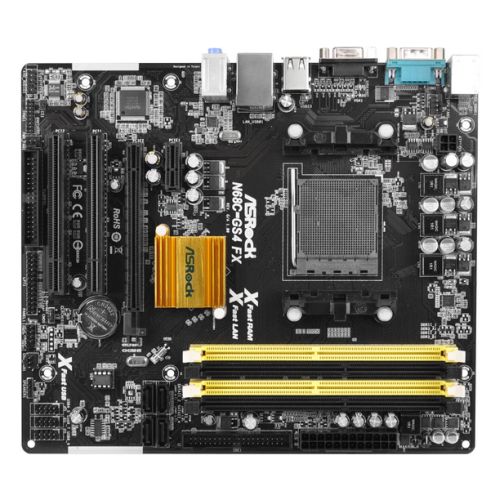

Asrock N68C-GS4 FX GF7025 AM3+/AM2+ Micro ATX DDR3/DDR2 256MB GFX IDE

N68C-GS4 FX

Sorry, but this product is no longer available to purchase online.

Please contact us to discuss alternative products which may be suitable.

Looking for Compatible Products?

More from this brand

Product Description

N68C-GS4 FX

A DDR3 + DDR2 combo comes with 8-Core CPU support!

A-Style : Home Cloud
Supports AM3+ Processor, 8-Core CPU
Supports Dual Channel DDR3 1600/DDR2 1066
Integrated NVIDIA® GeForce 7025 graphics, DX9.0 VGA, Pixel Shader 3.0
5.1 CH HD Audio (Realtek ALC662 Audio Codec)
Supports ASRock XFast USB, XFast LAN, XFast RAM
Supports ASRock Instant Boot, Instant Flash, OC DNA, APP Charger

Home Cloud - Remote Desktop Anytime, Anywhere

This motherboard supports Security Wake On Internet Technology with the onboard Qualcomm® Atheros® LAN, so you can connect with your PC from anywhere in the world. You will be able to power your PC on or turn it off, monitor and take control of it remotely with another smartphone, tablet or computer.

Imagine yourself as a desperado riding into the sunset, an outcast of the society exiled from your country, or simply at the groceries two blocks away from home. You miss your personal computer so much and you'll need Home Cloud for the following real world scenarios:

Mail

Keep your stored mail near at hand whenever you need it.

Multimedia

Stream your secret stash of vids, music and pics.

Watch your favorite local TV programs by connecting to your PC

Documents

Access or send files remotely anywhere.

Monitor

Keep an eye on your pets or children when you are away from home

XFast 555 Technology : XFast RAM / XFast LAN / XFast USB

5X Faster for Photoshop Execution

XFast RAM will create a virtual disk from the system memory to boost the performance. For Photoshop, It can even perform 5X faster than before.

Lower Latency In Game

XFast LAN can lower latency in the game after setting online game priority higher.

Time latency in World of Warcraft: Cataclysm

* Lower is better

USB Performance

Boosts up your USB speed

*The performance boost percentage may vary with a different configuration.

AM3+ 8-Core Processor Support

This board is designed to build up the most powerful system and delivers the most demanding technology for users nowadays. Just enjoy next generation computing with ASRock 8-Core CPU Ready motherboard.

C.C.R. (Combo Cooler Retention Module)

The unique combo cooler retention module greatly improves heat dissipation and is backward compatible with AMD previous AM3/AM2+ coolers.

DDR3 + DDR2 Combo

This motherboard is compatible with both DDR3 and DDR2 memory modules.

Instant Boot

ASRock has overcome the technical obstacles and exclusively invented a new technology that allows you to turn on your PC and boot up to Windows® in 4 seconds! ASRock Instant Boot not only excels in the Boot Up speed (3~4 sec.), it also provides clean OS, and saves the most power energy.

Instant Flash

ASRock Instant Flash is an exclusive and the most user-friendly BIOS flash utility developed by ASRock. It is embedded in Flash ROM which is used to update the system BIOS without having to enter operating systems like MS-DOS or Windows.

OC DNA

OC DNA, it’s an exclusive utility developed by ASRock’s outstanding RD team, provides a convenient way for user to share the OC settings with others. It helps you to save your overclocking settings under the operating system and simplifies the complicated recording process of overclocking settings. With OC DNA, you can save your OC settings as a profile and send the profile to your friends! Your friends then can load the OC profile to their own system to get the same OC settings as yours!

ASRock App Charger

Fast Charge & Charge Anytime

Simply installing the App Charger driver, it makes your iPhone charge up to 40% faster than before. ASRock App Charger supports continuous charging when your PC enters Standby mode (S1), Suspend to RAM (S3), hibernation mode (S4) or power off (S5). The App Charger technology has been fully applied on ASRock Full series motherboards.

Specification

Form Factor: Micro ATX
Socket: AM3+
Chipset: NVIDIA GeForce 7025
RAM Technology: DDR3/DDR2 (Dual Channel)
RAM Slots: 4 x DIMM
RAM Speeds: 2 x DDR3: 1600/1333/1066 MHz (16GB Max)
2 x DDR2: 1066/800/667/533 MHz (8GB Max)
Maximum Memory: 16GB
Graphics: Integrated NVIDIA GeForce 7025
Max. shared memory 256MB
Graphics Ports: 1 x VGA
PCI Express: 1 x PCIe x16
1 x PCIe x1
PCI: 2 x PCI
Storage: 4 x SATA II
1 x IDE (Supports 2 devices)
RAID: RAID 0 1 0+1 5 and JBOD
eSATA:
Wireless: -
LAN: GB LAN
Audio: 5.1 CH HD Audio (Realtek ALC662 / VIA VT1705 Audio Codec)
IDE:
USB Ports: 10 x USB 2.0 ports (4 at back 6 at mid-board)
Multi-GPU Support: -
Back Panel I/O Ports: 1 x PS/2 Mouse
1 x PS/2 Keyboard
1 x Serial Port
1 x D-Sub Port
4 x USB 2.0 Ports
1 x RJ-45
HD Audio Jacks
Internal I/O Connectors: 3 x USB 2.0 connectors
1 x ATA133 IDE
1 x Floppy
1 x Print Port
1 x Chassis Intrusion
1 x CPU Fan
1 x Chassis Fan
1 x Power Fan
1 x 24 pin ATX
1 x 4 pin 12V
1 x Front Audio
.:
CPU Support: See manufacturers link (next to product images)
Accessories: Quick Installation Guide Support CD I/O Shield
2 x SATA Data Cables
Package Type: Retail
Package Weight: 1.1000 kg
Refurbished:
Additional Features: See Overview
Warranty: 2 Years
