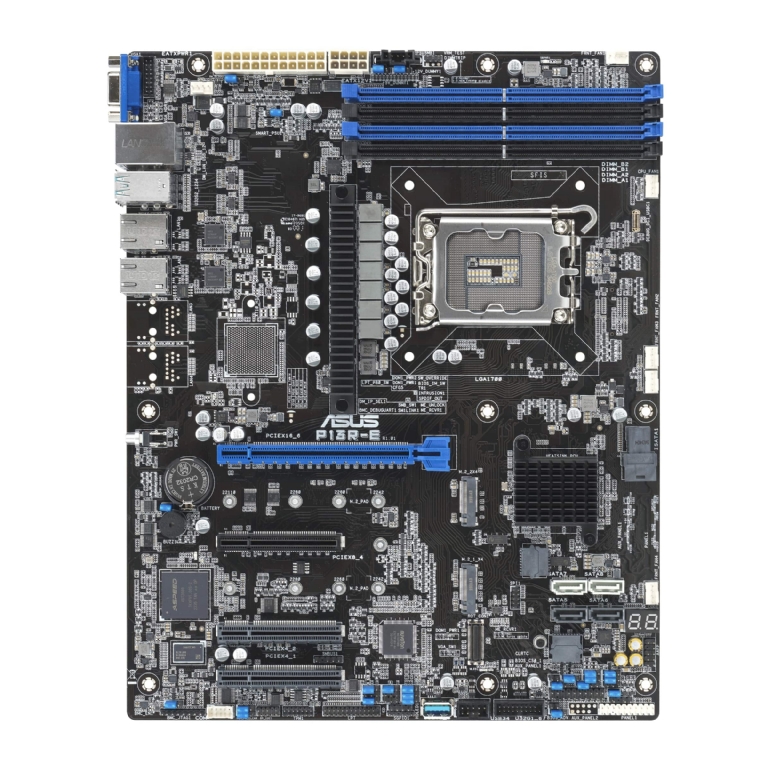

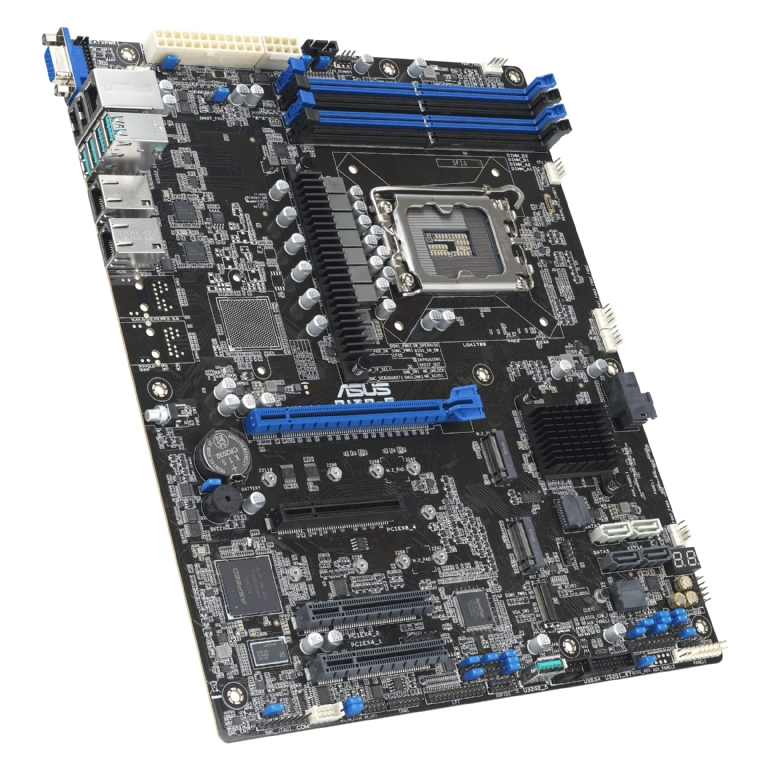

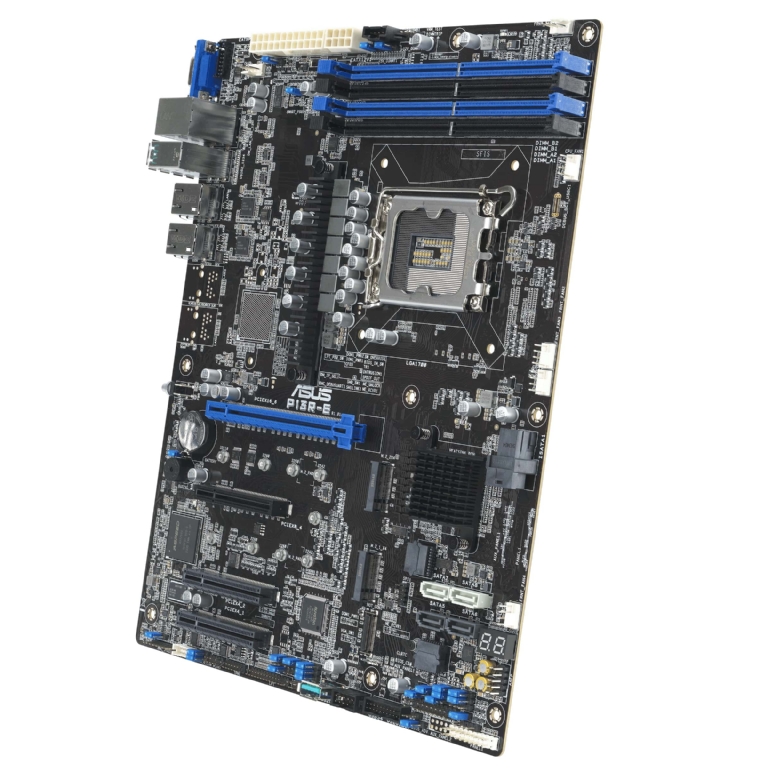

ASUS P13R-E Server Motherboard. Xeon E-2400 Support. Dual Gigabit LAN Onboard. VGA Video Onboard. Integrated IPMI Remote KVM. Includes ASMB11 Module

• Processor / System Bus

  1 x Socket LGA1700
  Intel® Pentium® Processors
  Intel® Xeon® E processors

• Core Logic

  Intel® C266 Chipset

• Memory

  Total Slots :
  4 (2-channel)
  Capacity :
  Maximum up to 128GB
  Memory Type :
  DDR5 4400 ECC UDIMM
  Memory Size :
  128GB
  * Refer to support page for more information

• Expansion Slots

  Total Slot : 4
  Slot 1 : PCI-E x8 (Gen4 X4 Link)
  Slot 2 : PCI-E x8 (Gen4 X4 Link)
  Slot 4 : PCI-E x8 (Gen5 X8 Link)
  Slot 6 : PCI-E x16 (Gen5 X16 Link),
  Auto switch to x8 link if slot 4 is occupied

• Form Factor

  ATX (12"x9.6", 305mm x 244mm)

• ASUS Features

  FAN speed control
  Rack Ready (Rack and Pedestal dual use)
  ASUS Control Center

• Storage

  Storage Controller :
  8 x SATA 6Gb/s ports by 4 Mini-SAS HD connectors
  2 x M.2 connector(22110,support NVMe PCIe x4 link)

• Networking

  2 x Intel® I210AT2 + 1 x Mgmt LAN

• Graphic

  Aspeed AST2600 with 64MB VRAM (VGA from BMC)

• On Board I/O

  1 x VGA Header (VGA from BMC)
  1 x TPM header
  1 x COM port
  6 x Fan Header , 4pin
  1 x SMBus
  1 x Chassis Intruder
  2 x Front LAN LED
  1 x PSU Power Connector (24-pin ATX power connector + 8-pin ATX 12V power connector)
  2 x M.2 Connector
  1 x Internal USB3.2 Gen2 (type-A Vertical)
  1 x USB3.2 Gen1 header,2 ports
  1 x USB2.0 header

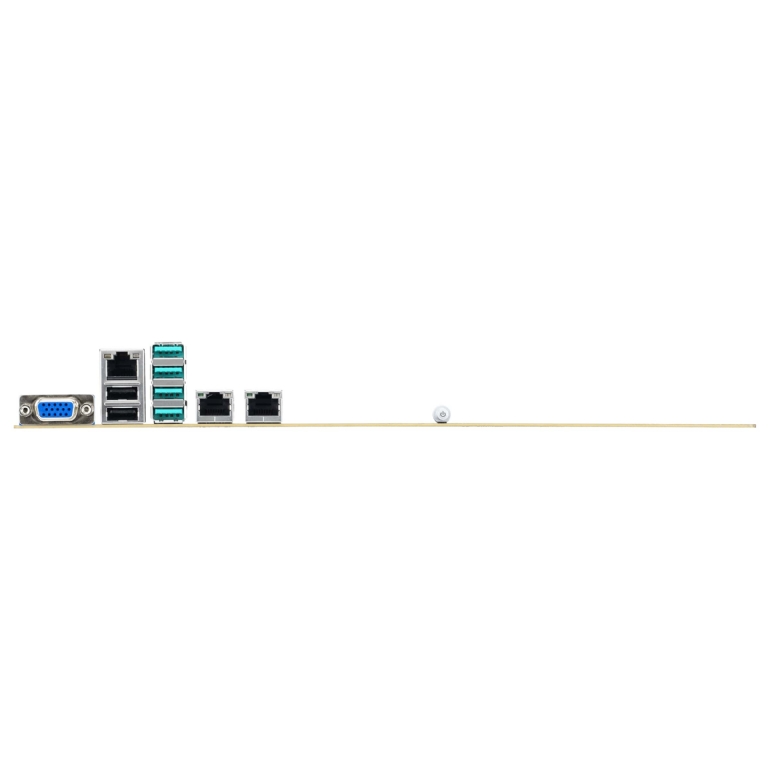

• Back I/O Ports

  4 x USB 3.2 Gen2
  2 x USB 2.0
  1 x VGA port (VGA from BMC)
  2 x 1 GbE LAN + 1 x Mgmt LAN

• Management Solution

  On-Board ASMB11-iKVM for KVM-over-IP

• Weight

  Gift Box (1-in-1)
  Net Weight : 0.76 KG
  Gross Weight : 1.3 KG
  Bulk Pack (10-in-1)
  Net Weight : 6.9 KG
  Gross Weight : 9.5 KG

• Environment

  Operation temperature: 10℃ ~ 50℃*
  Non operation temperature: -40℃ ~ 70℃
  Non operation humidity: 20% ~ 90% ( Non condensing)
  *The boundary condition above is based on 8.3W of PCH TDP spec . If the LFM estimate is higher than acceptable value from customer, ASUS can provide boundary condition with raw power for reference.

• Accessories

  Gift Box (1-in-1)
  1 x I/O shield
  1 x Plate for LGA1700
  Bulk Pack (10-in-1)
  1 x I/O shield
  1 x Plate for LGA1700

• Monitoring

  CPU Temperature
  Fan RPM
