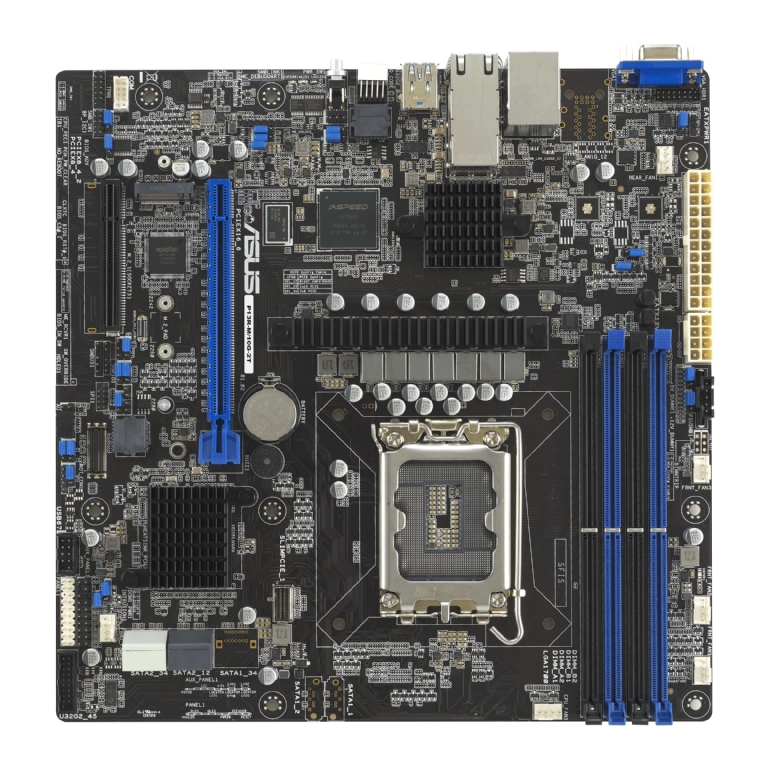

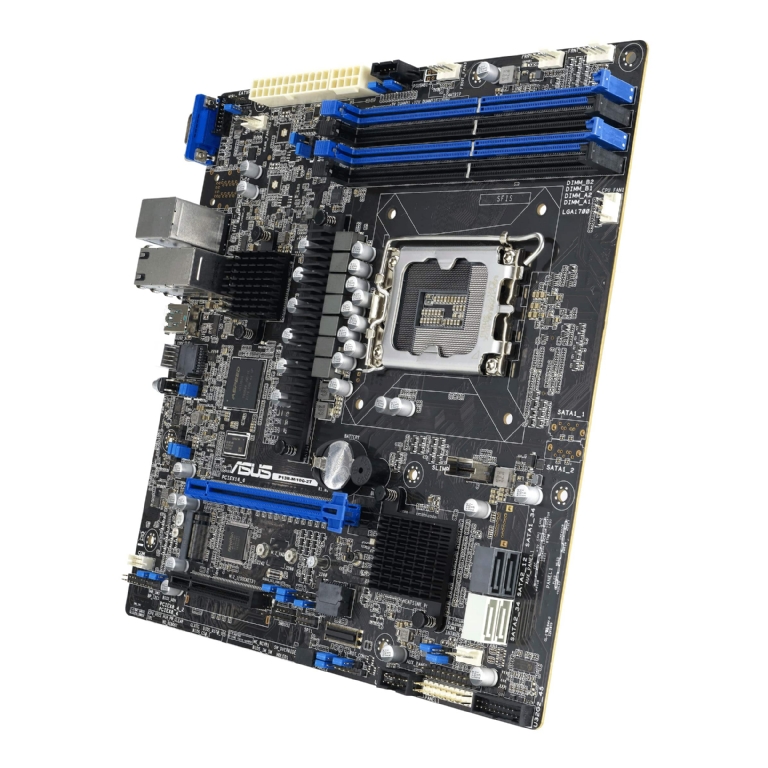

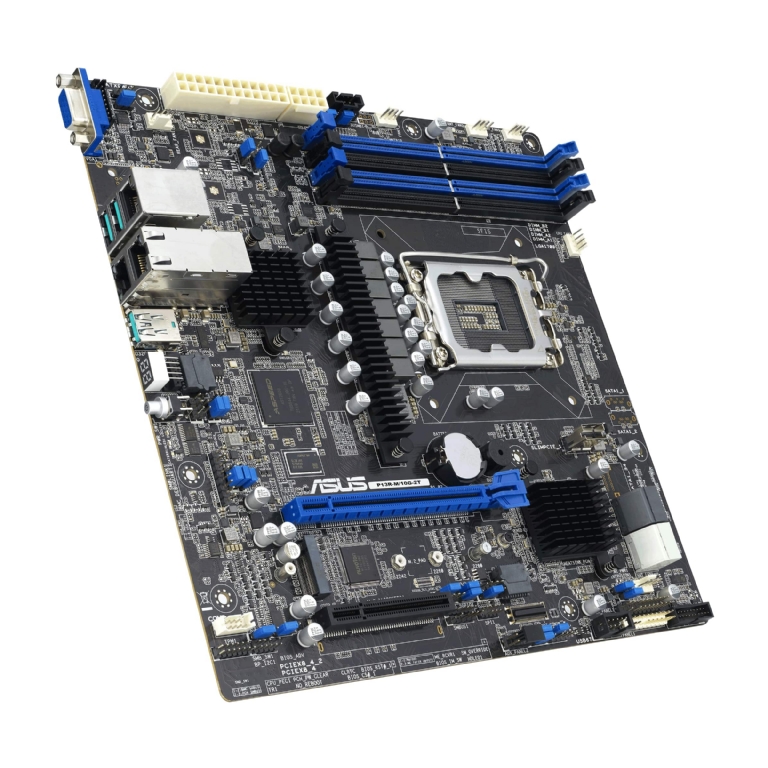

ASUS P13R-M/10G-2T Server Motherboard. Xeon E-2400 Support. Dual 10GbE LAN Onboard. VGA Video Onboard. Integrated IPMI Remote KVM. Includes ASMB11

• Processor / System Bus

  1 x Socket LGA1700
  Intel® Pentium® Processors
  Intel® Xeon® E processors

• Core Logic

  Intel® C262 Chipset

• Memory

  Total Slots :
  4 (2-channel)
  Capacity :
  Maximum up to 128GB UDIMM
  Memory Type :
  DDR5 4400/4000/3600 UDIMM
  Memory Size :
  32GB, 16GB, 8GB
  * Refer to support page for more information

• Expansion Slots

  Total Slot : 2
  Slot Location 4 : PCI-E x8 (Gen4 X4 Link)
  Slot Location 6 : PCI-E x16 (Gen5 X16 Link)

• Form Factor

  Mirco ATX (9.6"x9.6", 244mm x 244mm)

• Storage

  Storage Controller :
  4 x SATA3 6Gb/s ports
  1 x M.2 connector (2280/2260/2242)
  SAS Controller :
  ASUS PIKE II 3008-8i 8-port SAS 12G RAID card
  ASUS PIKE II 3108-8i 8-port SAS 12G HW RAID card

• Networking

  1 x Dual Port Intel X710-AT2 Gigabit 10G LAN Controller + 1 x Mgmt LAN

• Graphic

  Aspeed AST2600 with 64MB VRAM

• On Board I/O

  1 x TPM header
  1 x PSU Power Connector (24-pin ATX power connector + 8-pin ATX 12V power connector)
  3 x USB3.2 Gen2 ports
  1 x USB3.2 Gen1 (header, 2 ports)
  1 x USB 2.0 pin header (header, 2 ports)
  6 x Fan Header , 4pin
  1 x SMBus
  1 x Chassis Intruder
  4 x Front LAN LED
  1 x Serial Port Header
  1 x M.2 Connector
  1 x VGA Header
  1 x Onboard header for optional management card

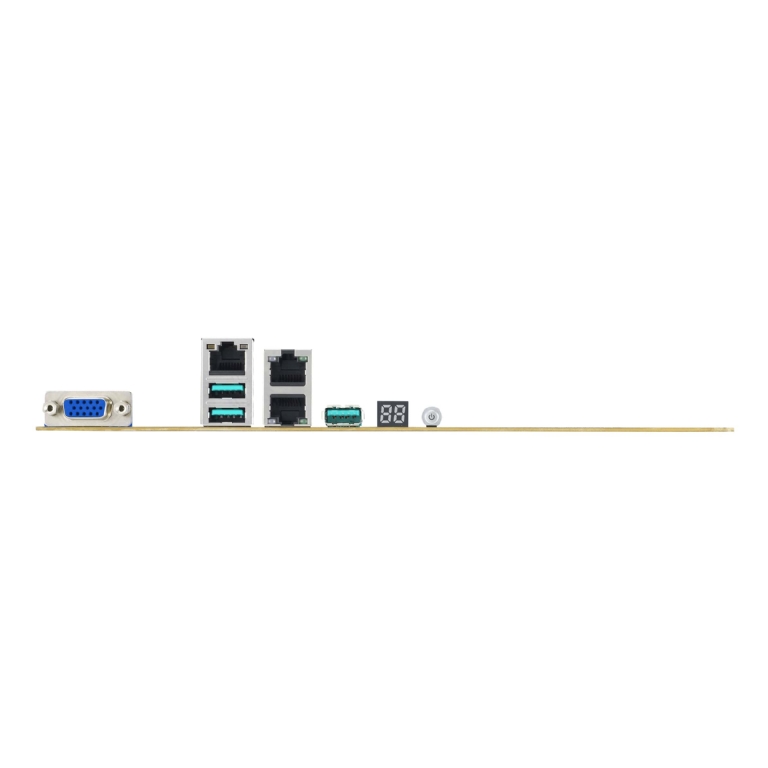

• Back I/O Ports

  3 x USB 3.2 Gen 2
  1 x VGA Port
  2 x 10 GbE LAN + 1 x Mgmt LAN

• Management Solution

  ASUS Control Center Enterprise (Optional)
  Optional ASMB10-iKVM for KVM-over-Internet

• Weight

  Gift Box (1-in-1)
  Net Weight : 0.76 KG
  Gross Weight : 1.3 KG
  Bulk Pack (10-in-1)
  Net Weight : 6.9 KG
  Gross Weight : 9.5 KG

• Environment

  Operation temperature: 10℃ ~ 50℃*
  Non operation temperature: -40℃ ~ 70℃
  Non operation humidity: 20% ~ 90% ( Non condensing)
  *The boundary condition above is based on 8.3W of PCH TDP spec . If the LFM estimate is higher than acceptable value from customer, ASUS can provide boundary condition with raw power for reference.

• Accessories

  Gift Box (1-in-1)
  1 x I/O shield
  8 x SATA 6G cables
  4 x Plate for LGA1700
  Bulk Pack (10-in-1)
  1 x I/O shield
  1 x Plate for LGA1700

• Monitoring

  CPU Temperature
  Fan RPM
