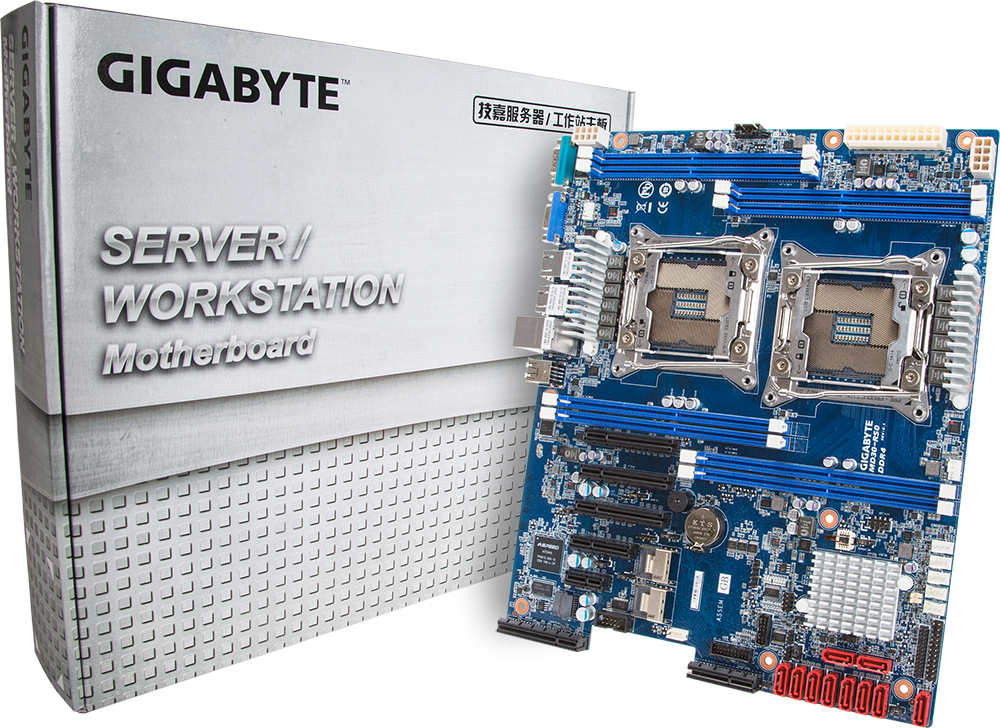

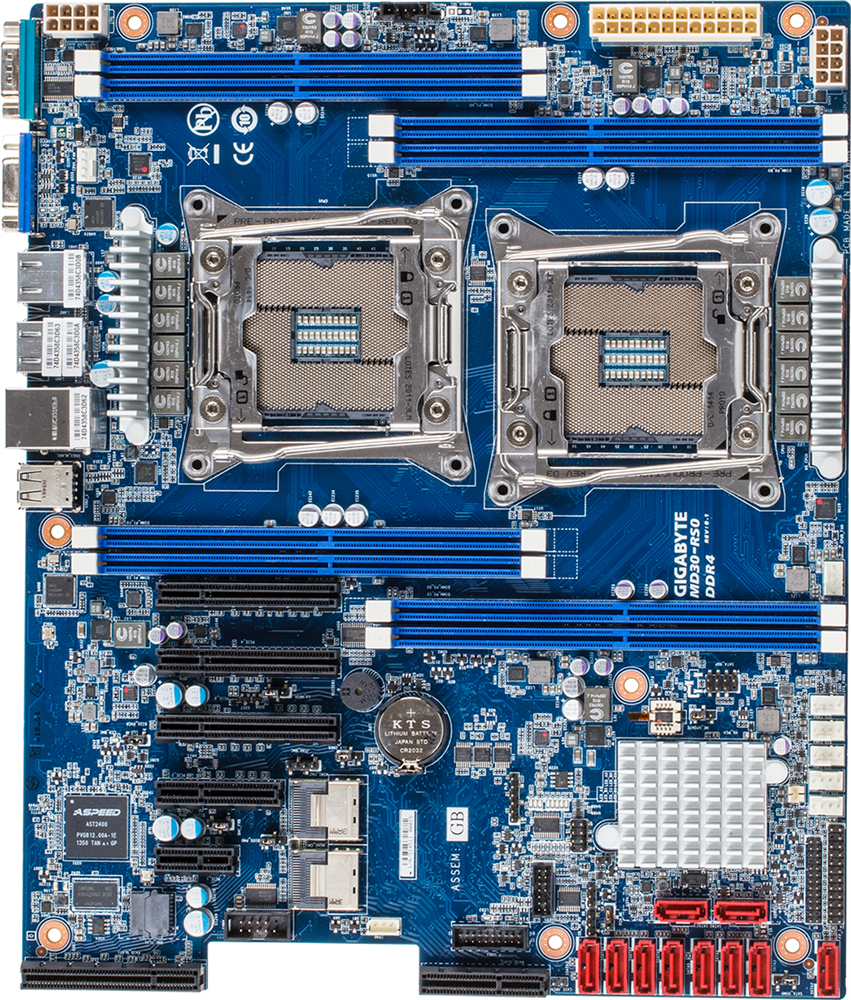

Gigabyte MD30-RS0 ATX Server Motherboard - Dual Socket E5-Xeon 1600/2600 V3
MD30-RS0
Gigabyte MD30-RS0 ATX Server Motherboard - Dual Socket E5-Xeon 1600/2600 V3
Sorry, but this product is no longer available to purchase online.
Please contact us to discuss alternative products which may be suitable.
Please contact us to discuss alternative products which may be suitable.
Product Description

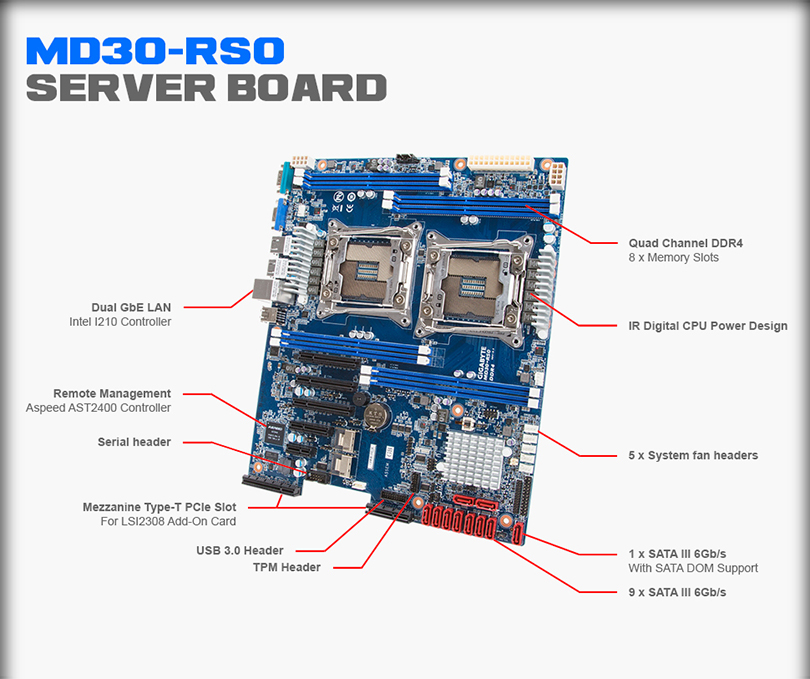

Features

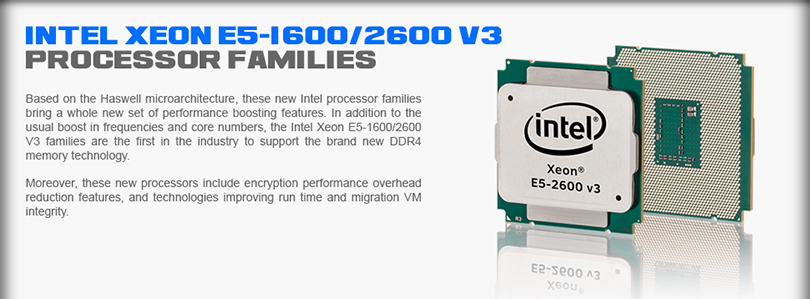

- Intel® Xeon® processor E5-1600 V3 & E5-2600 V3 product families
- 8 x RDIMM/LRDIMM ECC DDR4 DIMM slots
- 2 x GbE LAN port (Intel® I210)
- 10 x SATA III 6Gb/s
- Up to 8 x SAS 6Gb/s
- 1 x USB 3.0 header
- Aspeed® AST2400 remote management controller
Specifications
| Form Factor | ATX 305W x 254D (mm) |
| CPU | Intel® Xeon® E5-2600 V3 processors NOTE: If only 1 CPU is installed, some PCIe, memory, network or I/O functions might be unavailable. |
| Socket | 2 x LGA 2011-3 Mounting pitch: square ILM (80x80mm) Max. length of M4 screw threads: 3.7mm Screws longer than 3.7mm might damage the motherboard |
| Chipset | Intel® C612 |

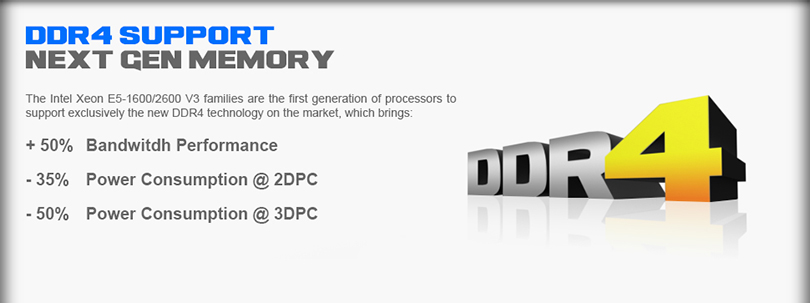

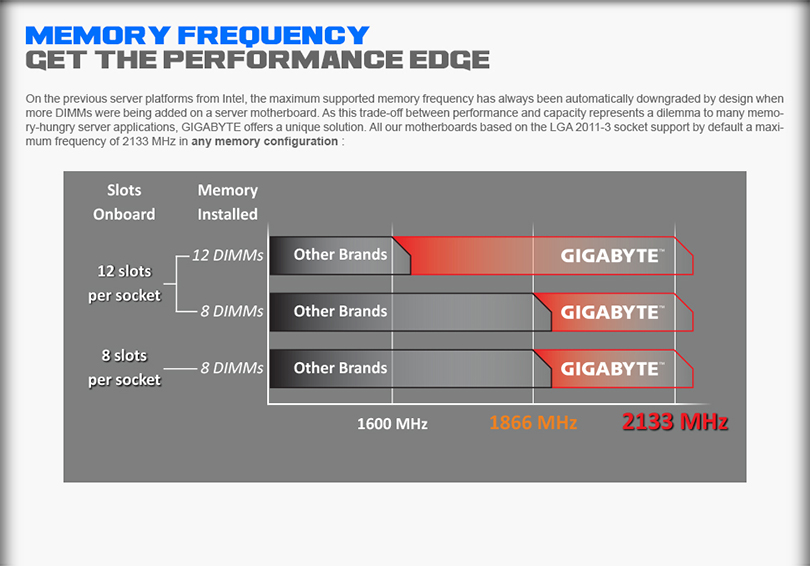

| Memory | 8 x DIMM slots DDR4 memory supported only Quad channel memory architecture ECC RDIMM / LRDIMM modules supported Single and dual rank RDIMM modules up to 32GB supported Quad rank LRDIMM modules up to 64GB supported 1.2V modules: 1600/1866/2133 MHz |
| LAN | 2 x GbE LAN ports (Intel® I210) 1 x 10/100/1000 management LAN |
| Video | Integrated in Aspeed® AST2400 2D Video Graphic Adapter with PCIe bus interface 1920x1200@60Hz 32bpp |
| Audio | - |

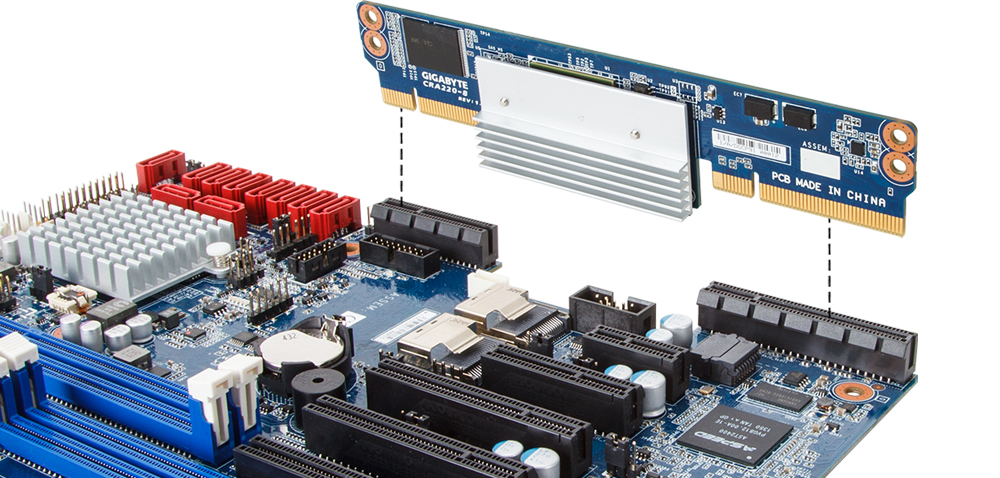

| SAS | 2 x Mini-SAS (for 8 x SAS 6Gb/s ports) (disabled, can be enabled with the CRA220-8 add-on card) |
| SATA | 9 x SATA III 6Gb/s ports 1 x SATA III 6Gb/s port supporting SATA DOM |
| RAID | Intel® SATA RAID 0/1/10/5 |
| Expansion Slots | 2 x PCIe x8 (Gen3 x8 bus) slots 1 x PCIe x8 (Gen3 x4 bus) slot 1 x PCIe x4 (Gen3 x4 bus) slot 1 x PCIe x1 (Gen2 x1 bus) slot 1 x PCIe mezzanine type T (Gen3 x8 bus) slot |
| Internal I/O | 1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 2 x Mini-SAS ports 10 x SATA III 6Gb/s ports 2 x CPU fan headers 5 x System fan headers 1 x USB 3.0 header 1 x TPM header 1 x Serial header 1 x Front panel header 1 x HDD back plane board header 2 x SATA SGPIO headers 1 x Chassis intrusion header 1 x Software RAID header 1 x PLD header 1 x BMC JTAG header 1 x SATA DOM jumper 1 x ME update jumper 1 x PCH ME jumper 1 x Clear CMOS jumper 1 x S3 mask jumper 1 x BIOS recovery jumper 1 x BIOS password recovery jumper 1 x BMC FRB jumper 1 x PMBus connector 1 x IPMB connector |

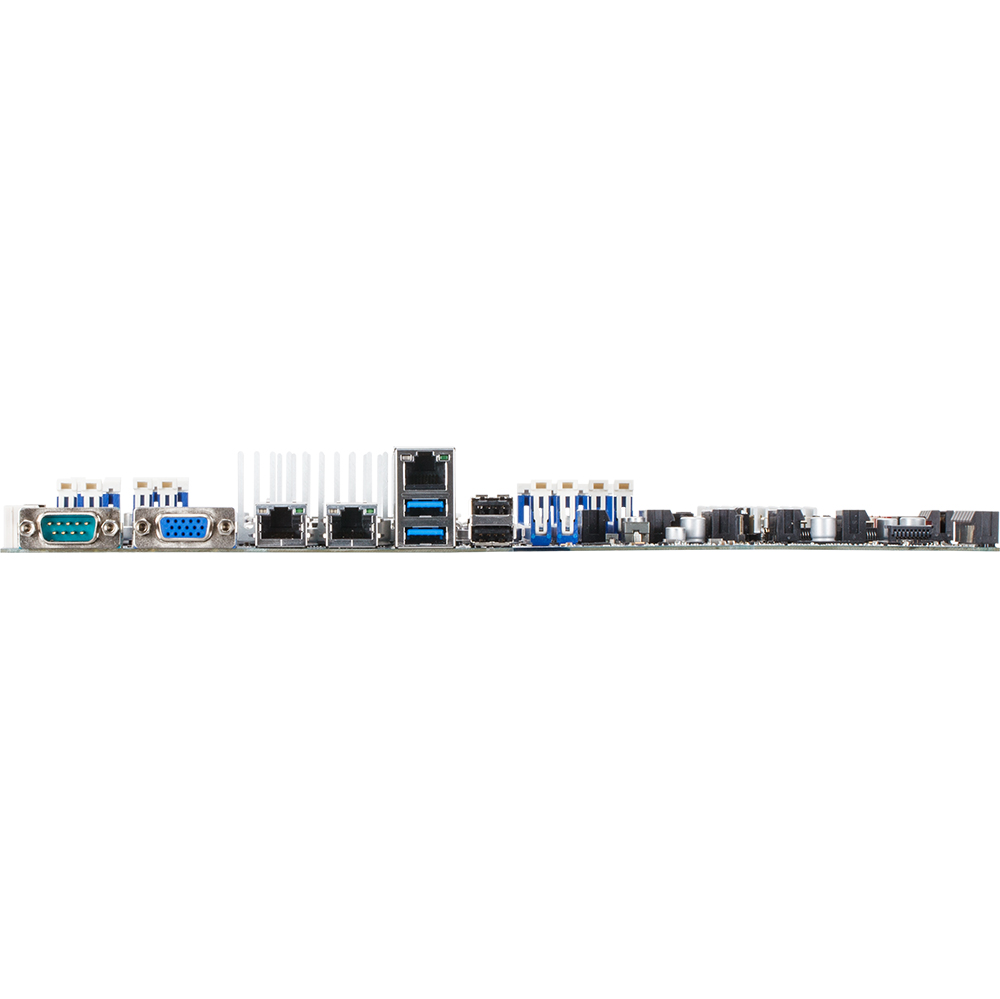

| Rear I/O | 2 x USB 3.0 2 x USB 2.0 1 x Serial 1 x VGA 3 x RJ45 |
| TPM | 1 x TPM header |
| OS Supported | Windows Server 2008 R2 (x64) Windows Server 2012 (x64) Windows Server 2012 R2 (x64) Red Hat Enterprise Linux 6.5 (x64) Red Hat Enterprise Linux 6.6 (x64) Red Hat Enterprise Linux 7.0 (x64) SUSE Linux Enterprise Server 11 SP3 (x64) SUSE Linux Enterprise Server 12 (x64) VMware ESXi 5.1 U2 VMware ESXi 5.5 U2 |

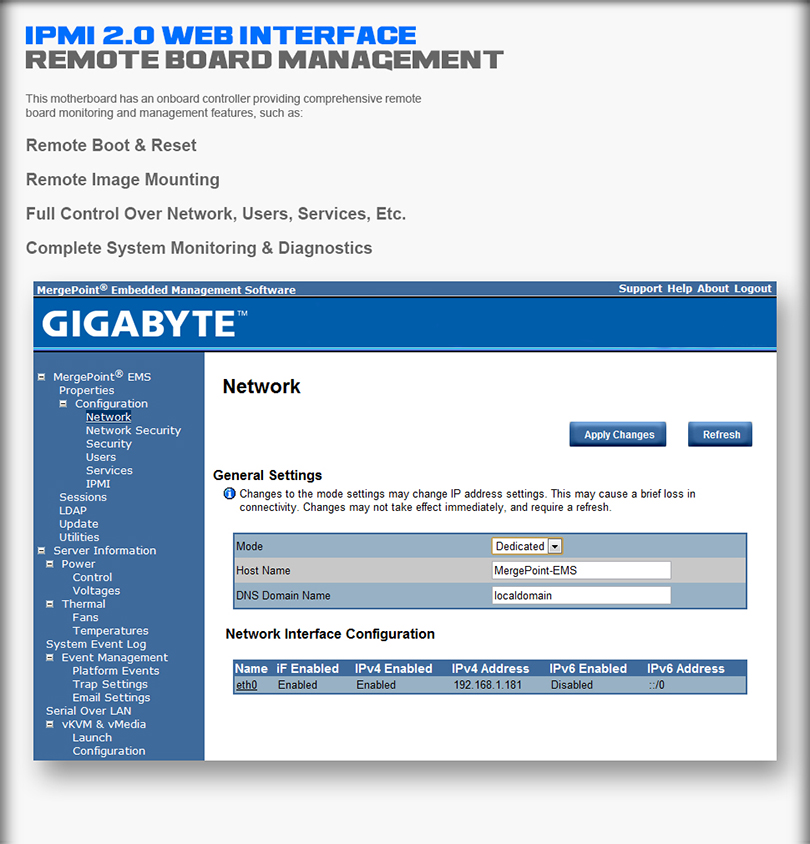

| Board Management | Aspeed® AST2400 management controller Avocent® MergePoint IPMI 2.0 web interface:
|
| PSU Connectors | 1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors |
| Operating Properties | Operating temperature: 10°C to 35°C Operating humidity: 8-80% (non-condensing) ŠNon-operating temperature: -40°C to 60°C Non-operating humidity: 20%-95% (non-condensing) |
| Retail Packaging Bundle | 1 x Driver CD 1 x I/O shield 1 x User manual 2 x SATA III 6Gb/s cables |
| Ordering Information | Box: 9MD30RS0MR-00 Bulk: 9MD30RS0NR-00 |
