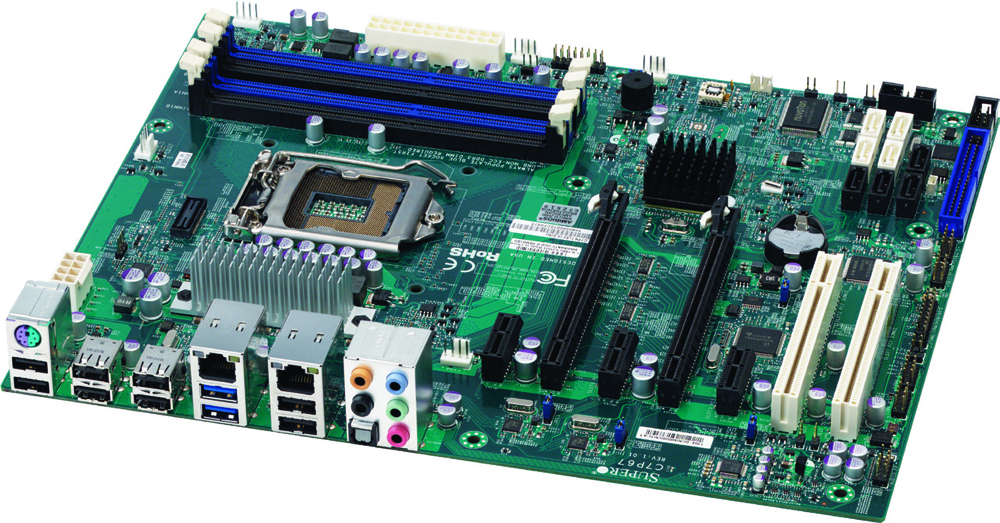

| MBD-C7P67 -O |
|
| |
|
| Form Factor |
|
| Dimensions |
- 12" x 9.6" (30.5cm x 24.4cm)
|
| |
|
| CPU |
- Socket H2 (LGA 1155)
- Intel® 2nd and 3rd Generation Core i7/i5/i3, Pentium, Celeron processors supported
|
| |
|
| Memory Capacity |
- 4x 240-pin DDR3 DIMM sockets
- Supports up to 32 GB DDR3 non-ECC Un-Buffered memory (UDIMM)
- 1333/1066MHz; 2133/1867/1600 (O.C.)
- Support non-ECC DDR3 UDIMM only
|
| Memory Type |
- Unbuffered DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs
|
| DIMM Sizes |
|
| Memory Voltage |
|
| |
|
| Chipset |
- Intel® P67 Express chipset
|
| SATA |
- Intel P67, Marvell 88SE9128
|
| Network Controllers |
- Realtek RTL8111E Gigabit Ethernet LAN,
2x Gigabit LAN ports
- Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
|
| Audio |
- REALTEK ALC889 7.1 HD Audio with optical S/PDIF
|
| Super I/O |
|
| |
|
| Serial ATA |
- 4x SATA 2.0 ports w/ RAID 0, 1, 5, 10
- 4x SATA 3.0 ports w/ RAID 0, 1
- SATA 3.0 6Gbps / SATA 2.0 3Gbps
|
| LAN |
|
| USB |
- 2x USB 3.0 ports
- 12x USB 2.0 ports
(8 rear, 4 ports via 2 internal headers)
|
| Audio |
- Line-in / Line-out / Microphone Ports;
optical S/PDIF port
|
| DOM (Disk on Module) |
- DOM power connector support
|
| IEEE 1394 |
- 2x IEEE 1394a header (T1 1394a)
|
| Serial Port / Headers |
- 2x Fast UART 16550 serial port
|
| Keyboard/Mouse |
- PS/2 keyboard/mouse shared connector
|
| Others |
|
|
 |
| |
|
| PCI-Express |
- 1x (x16) PCI-E 2.0 (x8 if slot 4 is used)
- 1x (x8) PCI-E 2.0 (in x16)
- 3x (x1) PCI-E 2.0
|
| PCI |
|
| |
|
| BIOS Type |
- 32Mb SPI Flash EEPROM with AMI UEFI BIOS
|
| BIOS Features |
- Plug and Play (PnP)
- DMI 2.3
- PCI 2.3
- ACPI 1.0 / 2.0
- USB Keyboard support
- RTC (Real time Clock) Wakeup
- 3TB HDD Support
|
| |
|
| Software |
|
| Power Configurations |
- ACPI / ACPM Power Management
- Main Switch Override Mechanism
- Wake-On-LAN (WOL) header
- Keyboard Wakeup from Soft-Off
- Power-on mode for AC power recovery
|
| |
|
| Voltage |
- Monitors for CPU Cores, +1.8V, +3.3V, +5V, ±12V, +3.3V Standby, +5V Standby, VBAT, HT, Memory, Chipset Voltages.
- 6-Phase-switching voltage regulator with auto-sense from 0.8375V-1.60V
|
| FAN |
- Total of 4 fan headers supporting up to 4 fans; four 4-pin fan headers
- 4x fans with tachometer status monitoring
- Status monitor for speed control
- Status monitor for on/off control
- Support 3-pin fans (w/o speed control)
- Low noise fan speed control
- Pulse Width Modulated (PWM) fan connectors
|
| Temperature |
- Monitoring for CPU and chassis environment
- CPU thermal trip support
- FC temperature sensing logic
- Thermal Monitor 2 (TM2) support
- PECI
|
| LED |
- CPU / System Overheat LED
- +5V Standby alert LED
|
| Other Features |
- Chassis intrusion detection
- Chassis intrusion header
|
|
