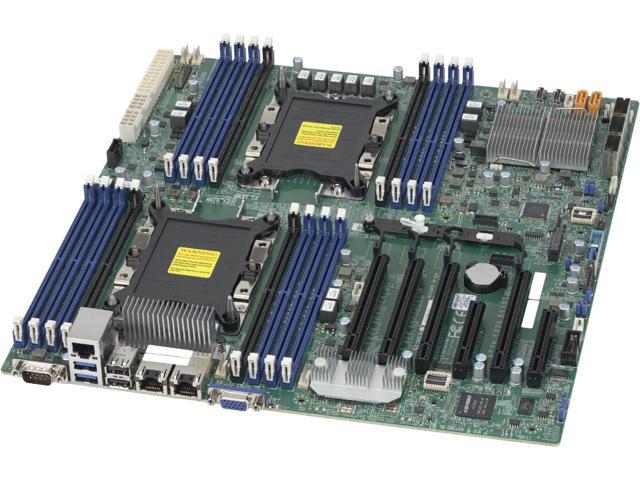

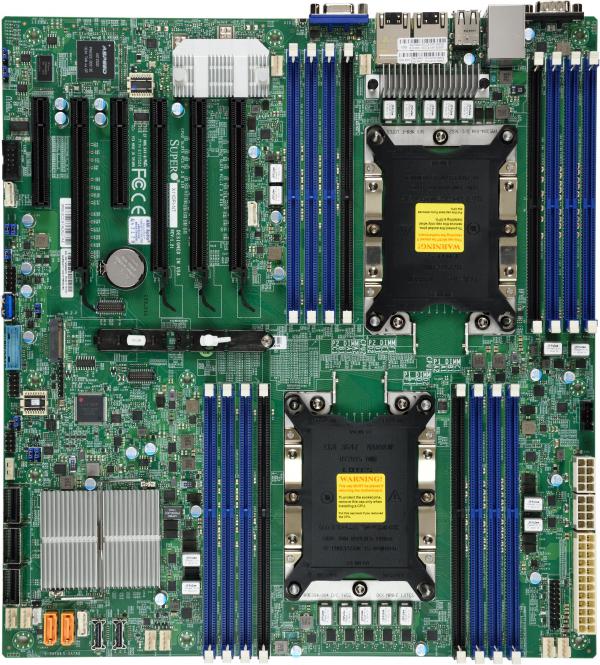

Supermicro MBD-X11DPI-N Dual Socket 3647 for Xeon Scalable Motherboard

MBD-X11DPI-N-O

Sorry, but this product is no longer available to purchase online.

Please contact us to discuss alternative products which may be suitable.

Looking for Compatible Products?

More from this brand

Product Description

Product SKUs

MBD-X11DPi-N	X11DPi-N


Physical Stats

Form Factor	E-ATX
Dimensions	12" x 13" (30.48cm x 33.02cm)


Processor/Cache

CPU	Intel® Xeon® Scalable Processors. Dual Socket P (LGA 3647) supported, CPU TDP support 205W, 2 UPI up to 10.4 GT/s CPU1: Skylake-F CPU supported
Cores / Cache	Up to 28 cores


System Memory

Memory Capacity	Up to 2TB 3DS ECC RDIMM and DDR4-2666MHz, Up to 2TB 3DS ECC LRDIMM, in 16 DIMM slots
Memory Type	2666/2400/2133MHz ECC DDR4 RDIMM, LRDIMM
DIMM Sizes	RDIMM: 64GB LRDIMM: 128GB 3DS LRDIMM: 128GB
Memory Voltage	1.2V
Error Detection	Corrects single-bit errors Detects double-bit errors (using ECC memory)


On-Board Devices

Chipset	Intel® C621
SATA	Intel® C621 controller for 14 SATA3 (6 Gbps) ports; RAID 0,1,5,10
IPMI	ASPEED AST2500
Network Controllers	Dual LAN with GbE from C621
Graphics	Aspeed AST2500 BMC

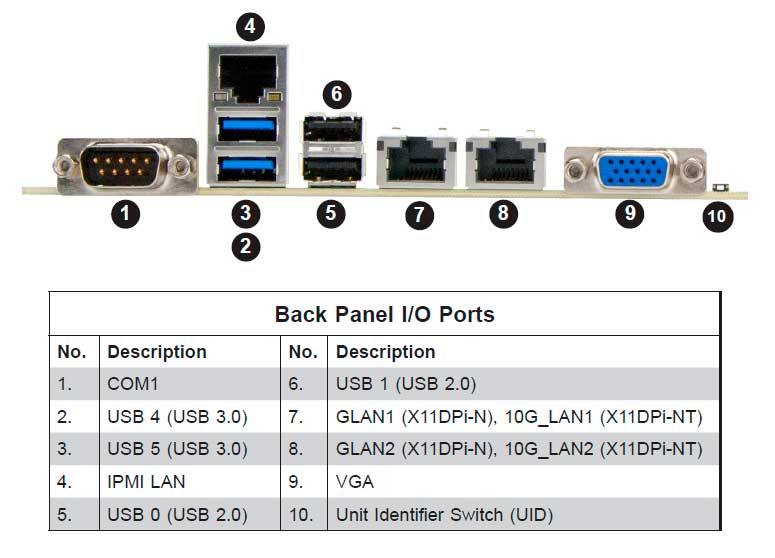

Input / Output

SATA	14 SATA3 (6Gbps) port
LAN	2 RJ45 Gigabit Ethernet LAN ports
USB	4 USB 2.0 ports (2 rear + 2 headers), 5 USB 3.0 ports (2 rear + 2 headers + 1 Type A)
Video Output	1 VGA port
Serial Port / Header	2 COM Ports (1 rear, 1 header)
TPM	1 TPM Header

Expansion Slots

PCI-E	4 PCI-E 3.0 x16, 2 PCI-E 3.0 x8
M.2	M.2 Interface: PCI-E 3.0 x4 Form Factor: 2260, 2280, 22110


System BIOS

BIOS Type	AMI UEFI


Management

Software	Intel® Node Manager, IPMI2.0, KVM with dedicated LAN, SPM, SSM, SUM, SuperDoctor® 5, Watchdog


PC Health Monitoring

Voltage	+1.8V, +12V, +3.3V, +5V, +5V standby, Chassis intrusion header, Monitors CPU voltages, Supports system management utility, System level control
FAN	8x 4-pin fan headers (up to 8 fans), PWM fan speed control
Temperature	N/A
LED	N/A
Other Features	Chassis intrusion detection, CPU thermal trip support for processor protection, Node Manager Support, RoHS


Operating Environment

Operating Temperature Range	0°C ~ 50°C (32°F ~ 122°F)
Non-Operating Temperature Range	-20°C ~ 60°C (-4°F ~ 140°F)
Operating Relative Humidity Range	10% ~ 85% (non-condensing)
Non-Operating Relative Humidity Range	10% ~ 95% (non-condensing)
