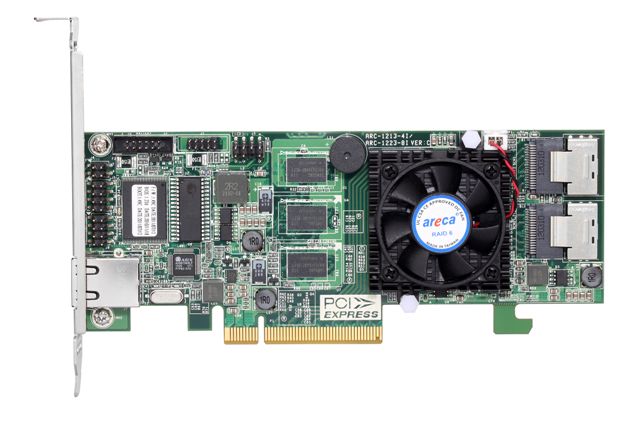

Areca ARC-1223-8I (4/8-Port PCIe 2.0 Internal SAS/SATA RAID Controllers)

ARC-1213-4i/1223-8i(4/8-Port PCIe 2.0 Internal SAS/SATA RAID Controllers)

SAS builds on parallel SCSI by providing higher performance, improving data availability, and simplifying system design. The SAS interface supports both SAS disk drives for data-intensive applications and Serial ATA (SATA) drives for low-cost bulk storage of reference data. The ARC-12x3-4i/-8i support directly attach 4/8 SAS ports via 1/2 internal SFF-8087 connector. The ARC-12x3-4i/8i RAID controllers are low-profile PCIe cards, ideal for 1U and 2U rack-mount systems without needing the expansion capability. These controllers utilize the same RAID kernel that has been field-proven in existing external RAID controller products, allowing Areca to quickly bring stable and reliable RAID controllers to the market.





Architecture
		800MHz RAID-on-Chip (ROC) processor
		PCIe 2.0 x8 lane host interface
		Support up to 4/8 internal 6Gb/s SAS physical links
		ARC-1213-4i/8i supports up to 4/8 x 6Gb/s SAS/SATA HDDs
		Multi-adapter support for large storage requirements
		BIOS boot support for greater fault tolerance
		BIOS PnP (plug and play) and BBS (BIOS boot specification support
		Support EFI BIOS for Mac Pro
		NVRAM for RAID event & transaction log
		Redundant flash image for controller availability
		Battery Backup Module (BBM) ready (Option) ARC-6120BA-T113
		RoHS compliant
	RAID Features
		RAID level 0, 1, 10(1E), 3, 5, 6, 30, 50, 60, Single Disk or JBOD
		Multiple RAID selection
		Online array roaming
		Offline RAID set
		Online RAID level/stripe size migration
		Online capacity expansion and RAID level migration simultaneously
		Online volume set growth
		Instant availability and background initialization
		Support global and dedicated hot spare
		Automatic drive insertion/removal detection and rebuilding
		Greater than 2TB capacity per disk drive support
		Greater than 2TB per volume set (64-bit LBA support)
		Support intelligent power management to save energy and extend service life
		Support NTP protocol synchronize RAID controller clock over the on board Ethernet port
	Monitors/Indicators
		System status indication through global HDD activity/fault con- nector, individual activity/fault connector, LCD/I2C connector and alarm buzzer
		SMTP support for email notification
		SNMP support for remote manager
		Enclosure management (SES-2, SMP and SGPIO) ready
	RAID Management
		Field-upgradeable firmware in flash ROM
		In-Band Manager
		Hot key "boot-up" McBIOS RAID manager via M/B BIOS
		Web browser-based McRAID storage manager via ArcHttp proxy server for all operating systems
		Support Command Line Interface (CLI)
		API library for customer to write monitor utility
		Single Admin Portal (SAP) monitor utility
		Out-of-Band Manager
		Firmware-embedded web browser-based McRAID storage manager, SMTP manager, SNMP agent and Telnet function via  Ethernet port
		API library for customer to write monitor utility
		Support push button and LCD display panel (option)
	Operating System
		Windows 8/Server2012/7/2008/Vista/Server 2003/XP
		Linux
		FreeBSD
		VMware (only driver package available w/o management utility)
		Solaris 10/11 x86/x86_64
		Mac OS 10.4.x/10.5.x/10.6.x/10.7.x/10.8.x (EFI BIOS support)
	Environmental/Physical
	Mechanical
	Dimension: ARC-1213-4i/1223-8i: 62(H) x 168(L) mm
	Environmental Specifications Operating: Temperature:+5°c to +60°c   Humidity: 15-80%   non-condensing   Storage Temperature: Temperature:-40°c to 70°c   Humidity: 5-90%   non-condensing
	Electrical Power Dissipation: 12V +3.3V   ARC-12x3 series: 12.1W (9.6W+2.5W)
