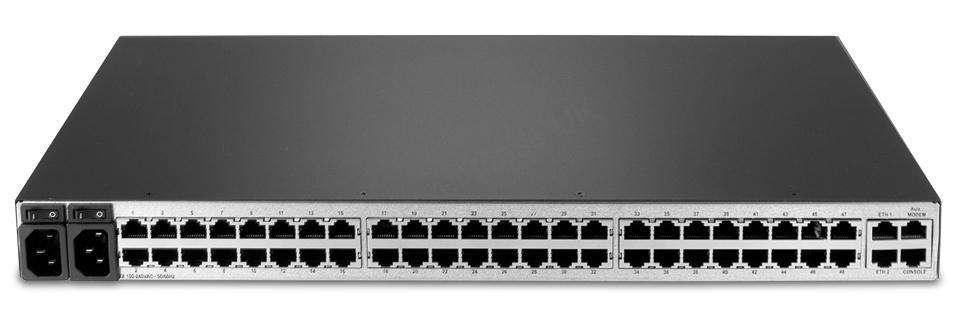

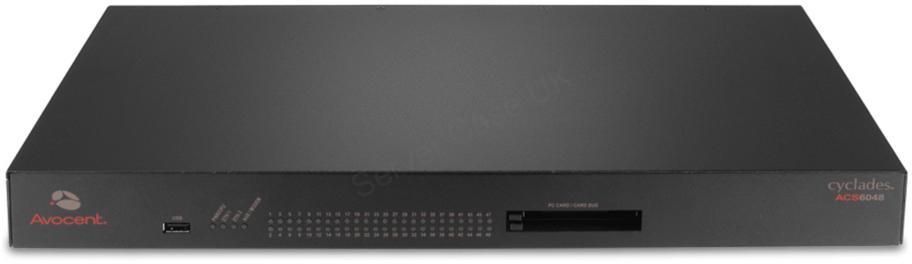

Avocent ACS 6048 48-Port Console Server with Single AC Power Supply and Built-in Modem

Cyclades ACS 6000 series of advanced console servers integrates cutting edge technologies, adaptive services and secure enterprise communications, offering IT professionals and network operations centre (NOC) personnel the ability to perform secure, remote data centre management and out-of-band management of IT assets from anywhere in the world. Using a hardened Linux operating system, Cyclades ACS 6000 console servers provide optimal performance, security and reliability. Using DSView 3 management software and integrated power, Cyclades ACS 6000 provides a complete out-of-band management solution. Cyclades ACS 6000 series of advanced console servers offer upgraded and advanced features that deliver scalable and high performance solutions for IT administrators. Cyclades ACS 6000 console servers feature a high speed processor platform with dual Gigabit-Ethernet ports for redundancy, optional built-in modem and two 16- and 32-bit PC card options. In addition, an internal temperature sensor for device level monitoring and configurable pin-outs for serial ports.



Cyclades ACS 6000 series also offers robust software features to meet the requirements of most demanding data centre management applications. Features include automated discovery tools to ease identification of servers, routers, switches or PBX connected to any serial port saving time at initial configuration and installation. To comply with existing data centre network access policy, the Cyclades ACS 6000 provides customizable multiple access levels for secure management. Cyclades ACS 6000 console servers provide a complete solution for secure remote control with advanced console server features such as enhanced security, data logging and event monitoring. In addition, ACS 6000 supports next generation network standards such as Internet Protocol version 6 (IPv6). Available in 16-, 32- and 48-port models that fit in 1U of rack space with single and dual AC and DC power option and with and without modem, Cyclades ACS 6000 console servers help maximize IT asset productivity while providing scalability and reducing operational costs.Features

• Operating System: Embedded Linux
• Cabling: CAT5 compatible adaptors for simpler cabling
• Upgrades: Upgrades available on FTP site, no charge - TFTP support for network boot
• Port Access: Directly by server name or device name - Simultaneous Telnet and SSH access
• Accessibility: In-band (Ethernet) and out-of-band (dial-up modem) support - Built in modem connectivity
• System Management: Configuration wizard in web for first time users - Web Management Interface (HTTP/HTTPS)
• Availability: Automatic Ethernet failover using second gigabit Ethernet port as the secondary port - Internal modem support
• Console Management: Sun break-safe (Solaris Ready Certified) - Break-over SSH support - Customisable global time zone support
• Security: One-Time Password (OTP) authentication - Two-Factor Authentication (RSA SecurID) - IP packet and security filtering - System event syslog
• Additional Protocols Supported: DHCP for dynamic IP address assignment - IPv6 support for greater deployment flexibility - NTP for time server synchronisation

Specifications

Compliance
Certifications	FCC Class A � CE Class A (EU) � ICES-003 (Canada) � VCCI (Japan) � C-Tick (Australia) � A-Tick � Safety: � UL (USA) cUL (Canada) � EN-60950 (EU) � CB � NEBS by Design
Electrical
Voltage/Power/Frequency	100 to 240V AC / 50 to 60Hz
Environmental
Environmental	Operating Temperature 0 to 50�C - Humidity 20 to 80%
General
Model Name	6048
Product Family	ACS
Interfaces/Ports
USB Ports	1 x USB
RJ-45 Ports	48 x RJ-45
Console Port	1 x RS-232 Console Port on RJ45
Memory
Memory (Maximum)	0.256GB DDR2
Flash Memory	128MB
Physical
Case Colour	Black
Dimensions	21.0cm (W) x 11.0cm (D) x 6.0cm (H) - Weight 2.99kg
