Aten KH1508AI 8-Port Cat 5 High-Density KVM Switch with USB/PS2 Console and Over IP Access (Black)

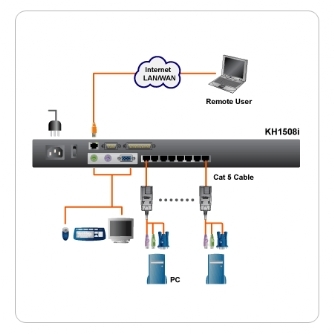

The ATEN KH1508AI Cat 5 High-Density Over the NET KVM switch is an 8-port device in a 1U high housing allowing local and remote operators to monitor and access the entire enterprise data centre over the Internet using a web-based browser. The KH1508AI features Cat 5e/6 cable to link to CPU modules attached to the servers, this arrangement has several advantages over standard KVM cabling. In addition to TCP/IP connectivity, the KH1508Ai provides KVM ports for a locally attached USB and / or PS/2 console and a Mini-USB port for a VNC Laptop console - allowing access and control from the data centre, over the Net, or from a laptop's USB connection. This is a single bus unit, so although up to 32 users may be logged in simultaneously only one operator has control.

Features

• High Denisty Cat 5 KVM switches which Over IP Access and support PS/2 and USB console connection
• A single console controls up to 8 computers
• Multiplatform support: PC, Mac, Sun and terminal-based systems
• Dedicated chain ports - daisy chain up to 31 additional units - control up to 256 computers from a single console
• Extends the distance between computers and switch - up to 40 m (130') for resolutions of 1280 x 1024 @ 60Hz, 30m (100') for resolution of 1600 x 1200 @ 60Hz
• No software required - convenient computer selection via port selection switches, Hotkeys and intuitive On Screen Display (OSD) menus
• No need for manual DIP switch setting - auto-sensing of station positions for daisy chained installations
• One bus for remote KVM over IP access
• LED indicates station's position
• Auto Scan Mode enables continuous monitoring of user-selected computers
• Hot Pluggable - add or remove computers without having to power down the switch
• Two level password security - only authorized users view and control the computers - up to four Users plus an Administrator with separate profiles for each
• Multi-language support: American/UK English; Traditional Chinese; Japanese; French; German; Korean
• Superior video quality - supports resolutions of up to 1600 x 1200 @ 60Hz
• Multiplatform support:Windows 2000/XP/Vista, Linux, Mac, Unix, SUN and FreeBSD

Specifications

Compliance
Certifications	RoHS
Display
Monitor Resolution Support	1280 x 1024 Pixels
Resolution (Maximum)	1600 x 1200dpi
Electrical
Electrical Voltage	100 to 240VAC
Electrical Frequency	50 to 60Hz
Environmental
Operating Temperature	Operating Temperature 0 to 50�C
Operating Humidity	Humidity 0 to 80%
General
Model Name	KH1508AI
Product Type	KVM Switch
Barcode	4710423777439
Input
Control Buttons	OSD, Hotkey , Pushbutton
Status Indicators	LED
Interfaces/Ports
Console Keyboard Port	1 x 6-pin Mini-DIN Female (Purple), 1 x USB Type A Female (Black)
Console Mouse Port	1 x 6-pin Mini-DIN Female (Green), 1 x USB Type A Female (Black)
Daisy Chain Connector	In: 1 x DB-25 Female (Black) � Out: 1 x DB-25 Male (Black)
Video In Ports	1 x HDB-15 Female (Blue)

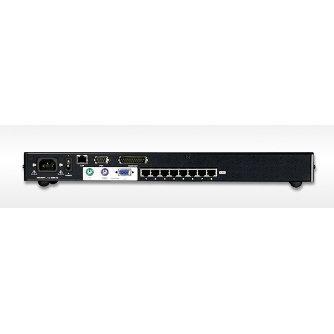

KVM Ports & Connectors	8 x RJ-45 Female (Black)
Physical
Case Colour	Black
In The Box	1x 8-Port Cat 5 High-Density KVM Switch � 1x Firmware Upgrade Cable � 1x Power Cord � 1x Rack Mount Kit � 1x Foot Pad Set(4 pcs.) � 1x User Manual � 1x Quick Start Guide x Registration Card
Dimensions	43.70cm (W) x 16.10cm (D) x 4.40cm (H) - Weight 2.75kg
System Requirements
Operating Systems Supported	Microsoft Windows 2000 � XP � Vista � Linux � FreeBSD
