Aten CN8000 KVM on the NET Switch

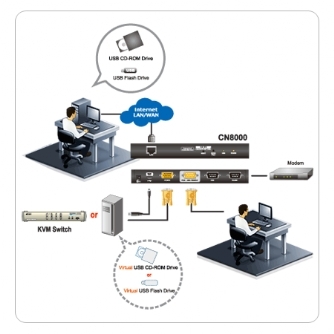

The CN8000 is a control unit that provides over-IP capability to KVM switches that do not have built in over-IP functionality. It allows operators to monitor and access their computers from remote locations using a browser-based Windows Client or Java Applet, or with AP Windows and Java application programs. The CN8000 provides a dedicated RS-232 port for modem access, as well as a USB 2.0 port for virtual media capability. With its advanced features, the CN8000 is the fastest, most reliable, most cost effective way to remotely access and manage widely distributed multiple computer installations.

Features

• Event logging
• On-screen keyboard
• Remote firmware upgrading
• Secure 128-bit SSL encryption
• Enable/disable browser operation
• Virtual media via USB 2.0 data transmission
• PON (Power Over the NET) support via Java
• Export/import user account and configuration settings
• Bandwidth optimization via grayscale and video quality setting
• External authentication support: RADIUS; LDAP; LDAPS; MS Active Directory
• Enhanced fps (frames per second) throughput for crisp responsive video display
• Up to 64 user accounts �V Up to 32 concurrent user logins for single-bus sharing
• PPP mode (modem) dial up support for out-of-band, and low bandwidth operation
• Multiplatform support: Windows 2000/XP/Vista, Mac, Linux, Unix, Sun and FreeBSD
• Provides over-IP capability to KVM switches that do not have built in over-IP functionality
• Ultra-Sync �V with USB mice local mouse movement becomes the remote mouse movement
• Advanced security features include password protection and advanced encryption technologies
• Web-based Windows and Java implementations allow the server to be controlled from any browser
• Supports TCP/IP, HTTP, HTTPS, UDP, DHCP, SSL, ARP, DNS, ICMP, CHAP, PPP, 10Base-T, 100Base-T
• Superior video resolution: up to 1600 x 1200 @ 60Hz; vibrant 24-bit colour depth for rich remote session display
• Windows GUI and Java client software for non-browser access - Java works with practically all operating systems
• Full-screen or sizable remote desktop window - in full-screen mode the remote desktop display scales to user's monitor display size
• Message board feature allows logged in users to communicate with each other, and allows a user to take exclusive control of the KVM functions

Specifications

Compliance
Certifications	RoHS Compliant � WEEE
Display
Resolution (Maximum)	1600 x 1200dpi
Electrical
Power Adaptor Output	5VDC
Environmental
Operating Temperature	Operating Temperature 0 to 50�C
Operating Humidity	Humidity 0 to 80%
General
Model Name	CN8000
Product Type	KVM Switch
Barcode	4710423775213
Interfaces/Ports

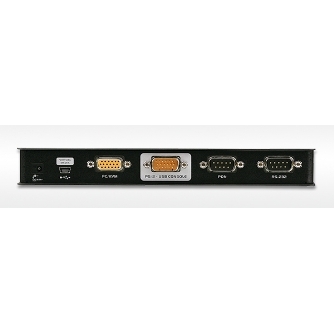

KVM Ports	1 x SPHD-15 Female (Yellow) PC Port(s) x 1 x SPHD-18 Male (Yellow) Console Port(s)
RJ-45 Ports	1 x RJ-45 Female
DC Power	1 x DC Jack
Physical
LED Status Indicators	1 x Power (Orange) � 1 x Link (Green) � 1 x 10/100 Mbps (Orange/Green)
Case Colour	Black
In The Box	1 x KVM on the NET Switch � 2 x Custom KVM Cable Sets � 1 x Custom Console Cable Set � 1 x USB 2.0 Virtual Media Cable � 1 x Power Adaptor � 1 x Mounting Kit � 1 x Software CD � 1 x User Manual � 1 x Quick Start Guide
Dimensions	8.1cm (W) x 20.0cm (D) x 2.5cm (H) - Weight 0.49kg
