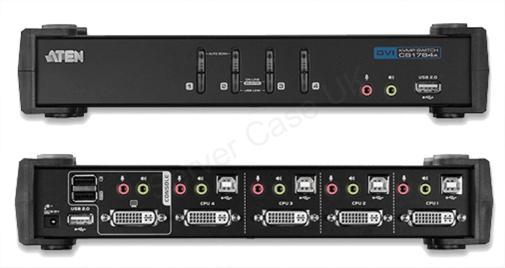

Aten CubiQ CS1764A 4-Port USB 2.0 DVI KVMP Switch with Audio Support

The CubiQ CS1764A USB 2.0 DVI KVMP Switch charts a revolutionary new direction in KVM (Keyboard, Video, Mouse) switch functionality by combining a 4 port KVM switch with a 2 port USB 2.0 hub at the same time as it provides an interface for a digital monitor (DVI). In addition, the CS1764A comes with ATEN's new Video DynaSync technology, which optimizes display resolution, and power on detection, which means if one computer is powered off, the CS1764A will automatically switch to the next powered-on computer.

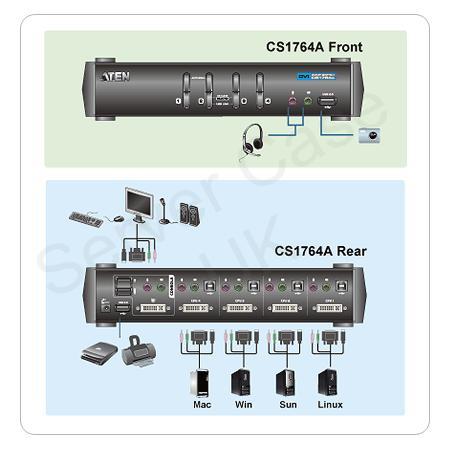

As a KVM switch, it allows users to access four computers from a single USB keyboard, USB mouse, and monitor console. As a USB 2.0 hub, it permits each computer to access any peripherals connected to the hub on a 'one computer at a time' basis.Features

• Aten CubiQ CS1764A 4-Port USB 2.0 DVI KVMP Switch
• One USB console controls four DVI computers and two additional USB 2.0 devices
• 2-port USB 2.0 hub built in
• Fully compliant with the USB 2.0 specification
• Computer selection via front panel pushbuttons and hotkeys
• Audio enabled - full bass response provides a rich experience for 2.1 channel surround sound systems
• Multiplatform support - Windows, Linux, Mac and Sun
• Superior video quality - 1920 x 1200, 60Hz; DDC2B
• Independent switching of KVM, USB, and audio focus
• DVI digital and analog monitor support - fully compliant with the DVI specifications
• HDCP compliant
• Video DynaSync - stores the console monitor's EDID (Extended Display Identification Data) to optimize display resolution
• Power on detection - if one computer is powered off, the CS1764A will automatically switch to the next powered-on computer
• Console mouse port emulation/bypass feature supports most mouse drivers and multifunction mice
• Sun /Mac keyboard support and emulation
• Auto Scan Mode for monitoring all computers
• Firmware upgradable via USB

Specifications

Display
Monitor Resolution Support	1920 x 1200 Pixels
Electrical
Power Adaptor Output	5VDC
Environmental
Operating Temperature	Operating Temperature 0 to 50�C
Operating Humidity	Humidity 0 to 80%
General
Model Name	CS1764A
Product Type	KVM Switch
Barcode	4710423776449
Interfaces/Ports
Console Keyboard Port	1 x USB Type A Female (Black)
Console Mouse Port	1 x USB Type A Female (Black)
Console Audio Port	2 x Mini Stereo Jack Female (Green)
Console Microphone Port	2 x Mini Stereo Jack Female (Pink)
Video In Ports	1 x DVI Female (White)
KVM Ports	4 PC Port(s)
KVM Ports & Connectors	Keyboard/Mouse: 4 x USB Type B Female (White) � Video: 4 x DVI Female (White) � Speaker: 4 x Mini Stereo Jack Female (Green) � Microphone: 4 x Mini Stereo Jack Female (Pink)
DC Power	1 x DC Jack
Physical
LED Status Indicators	On Line/ Selected: 4 (Orange), USB Link: 4 (Green)
In The Box	1 x CS1764A USB 2.0 DVI KVMP Switch � 4 x Custom KVM Cable Sets (DVI-D) � 1 x Power Adaptor � 1 x User Manual � 1 x Quick Start Guide
Dimensions	27.00cm (W) x 8.70cm (D) x 5.50cm (H) - Weight 0.94kg
