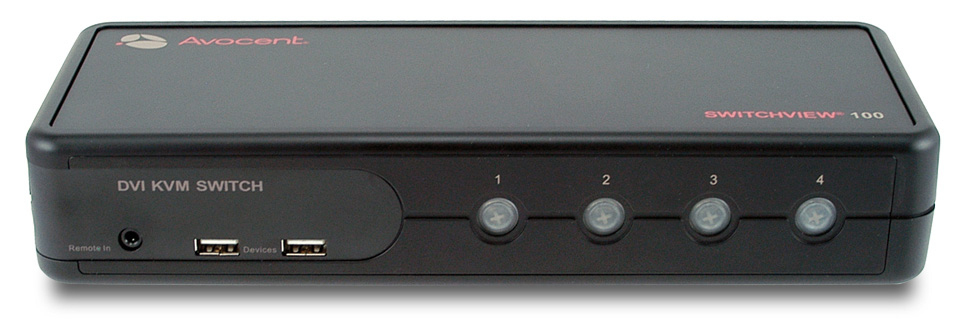

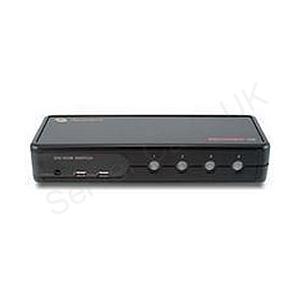

Bundle: Avocent SwitchView 100 Series 4-port Desktop KVM Switch with DVI/USB Support + Audio Cable Sets

The SwitchView 100 4-port miniature KVM switch provides access and control of up to four USB-enabled multimedia computers. The SwitchView 100 4-port KVM switching solution is one of the industry�s smallest and most versatile desktop KVM solutions. You can easily connect and control your small-office/home-office (SOHO) desktop environment with this space-saving KVM switch. The SwitchView 100 4-port switch lets you access and control up to four USB-enabled multimedia computers using only one USB keyboard and mouse and VGA monitor. Plus, this solution supports 2048 x 1536 video resolution and provides audio and microphone support.



Audio Cable Sets: 4 x DVI/Audio and mic combo cable � 4 x USB cable.Features

• Bundle: Avocent SwitchView 100 Series 4-port Desktop KVM Switch with DVI/USB Support + Audio Cable Sets
• Single user, 4-port miniature switch does not compete for space on the desktop
• Convenient USB connectivity
• Supports 2048 x 1536 video resolution
• Access multiple multimedia computers using a single keyboard, monitor, mouse, speaker set and microphone
• Affordably priced for the small office/home office
• Slim design: Does not compete for space on the desktop
• Channel selection: Switch between channels using pushbuttons or hotkeys
• USB interface powered: No external power supply
• Cables included: 4 x DVI/Audio and mic combo cable, 4 x USB cable
• Audio and microphone switching: Monitor the audio/microphone input/output of each multimedia computer without moving the plugs from PC to PC. Allows for uninterrupted multimedia experience across multi-platforms
• PC port LED: Computer 1 � Green; Computer 2 - Blue

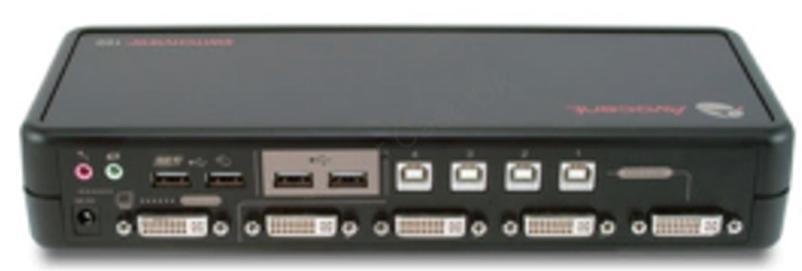

• PC port Connectors: 4 x DVI-I (for video andaudio), 4 x USB Type B
• Console port Connectors: 1 x DVI 15-pin Female,2 x USB Type A (for keyboard and mouse),1 x 3.5mm Audio Jack, 1x3.5mm Mic Jack

Specifications

Compliance
Certifications	FCC, CE, C-tick
Display
Monitor Resolution Support	2048 x 1536 Pixels
General
Model Name	100
Product Family	SwitchView
Product Type	KVM Switch
Warranty	Two years warranty and technical support.
Barcode	0636430054698
Interfaces/Ports
PC USB Port(s)	4 x USB
Console Keyboard Port	1 x USB
Console Mouse Port	1 x USB
Console Monitor Port	1 x HDB-15 Female
Console Audio Port	1
Console Microphone Port	1
KVM Ports	4 PC Port(s) x 1 Console Port(s)
Physical
Case Colour	Black
Dimensions	10.1cm (W) x 26.2cm (D) x 4.5cm (H)
