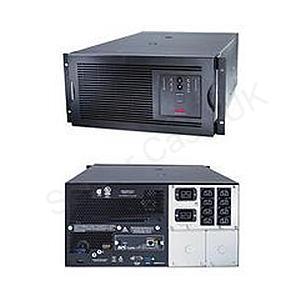

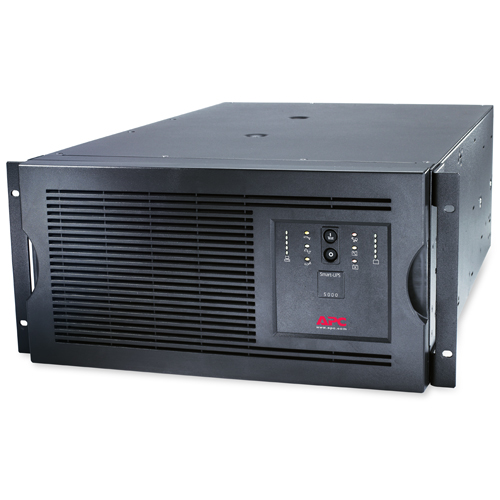

APC Smart-UPS 5000VA 4000W 230V Rackmount/Tower

APC Smart-UPS protects critical data by supplying reliable, network-grade power in either traditional tower or rack-optimized form factors. Award-winning Smart-UPS is the perfect UPS for protecting business critical servers, voice and data networks, point of sale, retail/bank back office and ATM's. High real power output (watts), generous runtime, sine wave output, 16-segment LED visual display, and intelligent battery management make Smart-UPS the leading server class UPS. Included PowerChute management software provides IT administrators the comfort of safe system shutdown and advanced UPS management.



Additional manageability is available through the SmartSlot, an internal accessory slot that allows installation of optional accessories to enhance the performance of your UPS. Designed and manufactured by APC and fully backed with free 24x7 technical support, Smart-UPS remains the industry standard for all network UPSs. With over 10 million units installed worldwide and over 15 years of proven performance, Smart-UPS is a UPS businesses trust for their critical applications.Features

• APC Smart-UPS 5U Rackmount/Tower (Black)
• Output Power Capacity: 4000 Watts / 5000 VA
• Adjustable voltage-transfer points
• Audible alarms
• Automatic self-test
• Boost and Trim Automatic Voltage Regulation (AVR)
• Cold-start capable
• Disconnected battery notification
• Hot-swappable batteries
• LED status indicators
• Network manageable
• Plug-and-Play installation
• Rack/Tower Convertible
• Resettable circuit breakers
• Safety-agency approved
• SmartSlot
• Temperature-compensated battery charging
• Two years repair or replace

Specifications

Attributes
Typical backup time at half load	26.7 minutes
Typical backup at full load	9.4 minutes
Waveform Type	Sinewave
Control Panel	LED status display with On Line : On Battery : Replace Battery and Overload indicators
Audible Alarm	Audible and visible alarms : configurable delays
Compliance
Approvals	C-tick,CE,EN 50091-1,EN 50091-2,GOST,GS Mark,VDE
Electrical
Battery Type	Valve Regulated Lead Acid
Typical Recharge Time	3 Hours
Output Capacity	5kVA
Output Wattage	4.0kW
Output Voltage	230V AC
Max Configurable Capacity	5kVA
Input Voltage Range	160 to 286V AC
Environmental
Environmental	Operating Temperature 0 to 40�C - Humidity 0 to 95%
Noise Level	53dbA
Filtering
Filtering	Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449
Surge Energy	480 Joules
Output Distortion	less than 5%
Crest Factor	3 : 1
General
Product Family	Smart-UPS
Product Type	Uninterruptible Power Supply
Warranty	Two years repair or replace.
Barcode	5051964144151
Interfaces/Ports
Input Connection type	Hard Wire 3-wire
Output Connections	(8) IEC 320 C13, (2) IEC 320 C19, (6) IEC Jumpers
Physical
Case Colour	Black
In The Box	APC Smart-UPS, CD with software, Documentation CD, Installation guide, Rack mounting hardware, Rack Mounting support rails, Smart UPS signalling RS-232 cable, User Manual, Web/SNMP Management Card
Dimensions	48.30cm (W) x 66.0cm (D) x 22.20cm (H) - Weight 97.73kg
