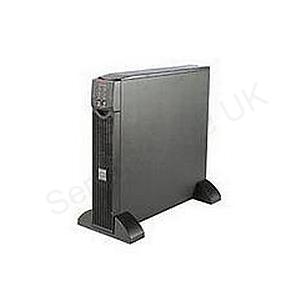

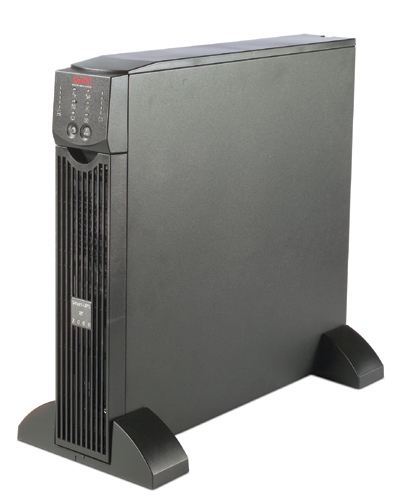

APC Smart-UPS RT 1500VA 1050W 120V RS-232/Smart-Slot/USB Rackmount (Black)

APC Smart-UPS RT is a family of high-density, performance UPS's for voice and data networks, medical labs, and light industrial applications. Capable of supporting 10kVA in a 6U rack/tower convertible form, users can support power hungry blade servers or heavily loaded equipment racks. This flexible form factor allows standardization across multiple applications. High power internal chargers allow virtually unlimited additional matching battery packs to comply with aggressive runtime demands of business-critical systems. Customers with harsh power environments looking for extremely tight voltage and frequency regulation, internal bypass, and input power factor correction typical of double conversion online topology will get them in the Smart-UPS RT.

Features

• APC Smart-UPS RT 1500VA 1050W 120V RS-232/Smart-Slot/USB Rackmount
• Output Power Capacity: 1050 Watts / 1500 VA
• Output Connections: (6) NEMA 5-15R
• Nominal Input/Output Voltage: 120V
• Input Connections: NEMA 5-15P
• Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
• Typical recharge time: 3.0 hour(s)
• Typical Backup Time at Full Load: 8.6 minutes (1050 Watts)
• Typical Backup Time at Half Load: 22.2 minutes (525 Watts)
• Control panel: LED status display with load and battery bar-graphs and On Line : On Battery : Replace Battery : and Overload Bypass Indicators
• Audible Alarm: Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
• Colour: Black
• Two years repair or replace

Specifications

Attributes
Typical backup time at half load	22.2 minutes
Typical backup at full load	8.6 minutes
Waveform Type	Sinewave
Control Panel	LED status display with load and battery bar-graphs and On Line : On Battery : Replace Battery : Overload and Bypass Indicators
Audible Alarm	Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
Compliance
Approvals	BSMI,CSA,FCC Part 15 Class B,UL 1778
Electrical
Battery Type	Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
Typical Recharge Time	3 Hours
Output Capacity	1.5kVA
Output Wattage	1.05kW
Output Voltage	120V AC
Max Configurable Capacity	1.5kVA
Input Voltage Range	90 to 150V AC
Environmental
Environmental	Operating Temperature 0 to 40�C - Humidity 0 to 95%
Noise Level	45dbA
Filtering
Surge Energy	540 Joules
Output Distortion	less than 3%
Crest Factor	3 : 1
General
Product Family	Smart-UPS RT
Product Type	Uninterruptible Power Supply
Warranty	Two years repair or replace.
Barcode	0731304226338
Interfaces/Ports
Input Connection type	NEMA 5-15P
Output Connections	(6) NEMA 5-15R
Interface Port	DB-9 RS-232, Smart-Slot, USB
Physical
Case Colour	Black
In The Box	Smart-UPS RT, CD with software, Documentation CD, Installation guide, Smart UPS signalling RS-232 cable, USB cable, User Manual
Dimensions	8.5cm (W) x 55.9cm (D) x 43.2cm (H) - Weight 27.5kg
