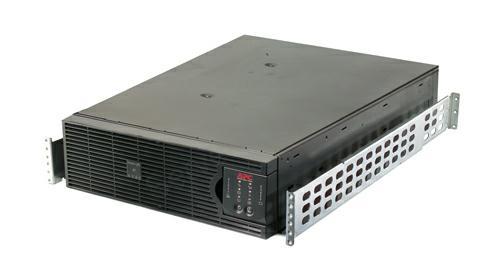

APC Smart-UPS RT 3000VA 2100W 230V Rack Height 3U Extended Runtime Model with Support Rails

APC Smart-UPS RT is a family of high-density, performance UPSs for voice and data networks, medical labs, and light industrial applications. Capable of supporting 10kVA in a 6U rack/tower convertible form, users can support power hungry blade servers or heavily loaded equipment racks. This flexible form factor allows standardization across multiple applications. High power internal chargers allow virtually unlimited additional matching battery packs to comply with aggressive runtime demands of business-critical systems. Customers with harsh power environments looking for extremely tight voltage and frequency regulation, internal bypass, and input power factor correction typical of double conversion online topology will get them in the Smart-UPS RT.

Features

• APC Smart-UPS RT Rack Height 3U Extended Runtime Model with Support Rails
• Output Power Capacity: 2100 Watts / 3000 VA
• Nominal Input/Output Voltage: 230V
• Input Connections: British BS1363A, IEC-320 C20, Schuko CEE 7/EU1-16P
• Output Connections: (8) IEC 320 C13, (2) IEC 320 C19, (3) IEC Jumpers
• Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
• Included Battery Modules: 2
• Interface Port(s): Smart-Slot
• Two years repair or replace

Specifications

Attributes
Typical backup time at half load	33.9 minutes
Typical backup at full load	14.1 minutes
Waveform Type	Sinewave
Control Panel	LED status display with load and battery bar-graphs and On Line : On Battery : Replace Battery : Overload and Bypass Indicators
Audible Alarm	Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
Compliance
Approvals	BSMI,C-tick,CE,CSA,EN 50091-1,EN 50091-2,EN 55022 Class A,EN 60950,EN 61000-3-2,GOST,JEON,UL 1778,VCCI,VDE
Electrical
Battery Type	Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
Typical Recharge Time	2.5 Hours
Output Capacity	3kVA
Output Wattage	2.1kW
Output Voltage	230V AC
Max Configurable Capacity	3kVA
Input Voltage Range	160 to 280V AC
Environmental
Environmental	Operating Temperature 0 to 40�C - Humidity 0 to 95%
Noise Level	55dbA
Filtering
Filtering	Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449
Surge Energy	480 Joules
Output Distortion	less than 3%
Crest Factor	3 : 1
General
Product Family	Smart-UPS RT
Product Type	Uninterruptible Power Supply
Warranty	Two Years Repair or Replace.
Barcode	8032976044131
Interfaces/Ports
Input Connection type	British BS1363A IEC-320 C20 Schuko CEE 7/EU1-16P

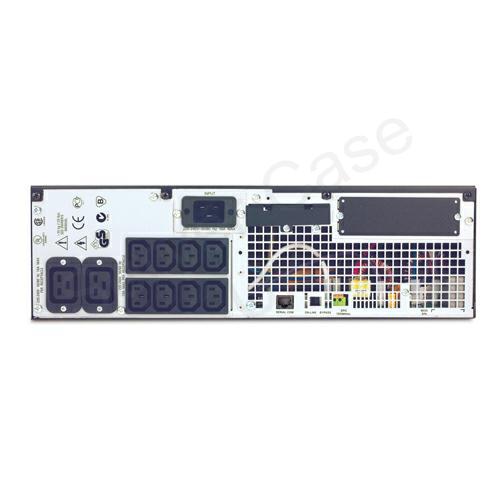

Output Connections	(8) IEC 320 C13, (2) IEC 320 C19, (3) IEC Jumpers
Interface Port	Smart-Slot
Physical
Case Colour	Black
In The Box	Smart-UPS RT 3000VA Model � CD with software � Smart UPS signalling RS-232 cable � User Manual � Rack Mounting support rails
Dimensions	43.2cm (W) x 66.0cm (D) x 13.0cm (H) - Weight 54.55kg
