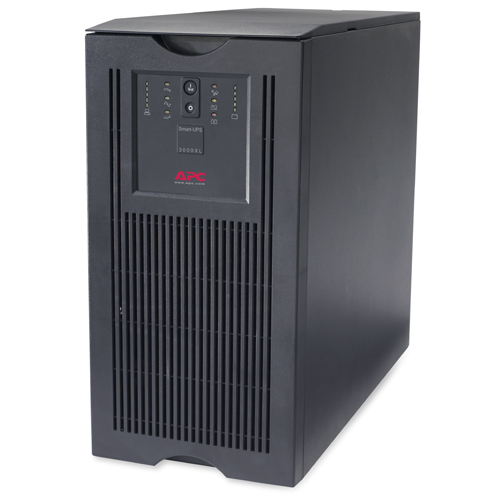

APC Smart-UPS XL 3000VA 2700W 230V Tower/Rackmount (5U)

APC Smart-UPS XL protects your data by supplying reliable, network-grade power and scalable runtime in tower or rack-mount form factors. Customers can configure up to 10 matching battery packs for runtimes exceeding 24 hours, if needed. Typical applications requiring longer runtime include critical application servers and storage, IP and PBX based voice networks, and enterprise network switches and hubs. Included PowerChute management software provides IT administrators the comfort of safe system shutdown and advanced UPS management. Additional manageability is available through the SmartSlot, an internal accessory slot that allows installation of optional accessories to enhance performance.. Engineered with the same standards as the award-winning Smart-UPS, with over 10 million installed, the Smart-UPS XL adds the advantage of unsurpassed runtime capability for those business applications that demand continual uptime.



APC Smart-UPS XL, 3000VA/2700W, Input 230V/Output 230V, Interface Port DB-9 RS-232, SmartSlot, Extended runtime model, Rack Height 5 U. Performance power protection with scalable runtime for servers, and voice and data networks.Features

• APC Smart-UPS XL 3000VA 2700W 230V Tower/Rackmount (5U)
• Output Power Capacity: 2700 Watts / 3000 VA
• Input Connections: IEC-320 C20, Schuko CEE 7 / EU1-16P, British BS1363A
• Output Connections: (8) IEC 320 C13, (1) IEC 320 C19, (3) IEC Jumpers
• Nominal Input/Output Voltage: 230V
• Input Frequency: 50/60 Hz +/- 5 Hz (auto sensing)
• Output Frequency (sync to mains): 47 - 53 Hz for 50 Hz nominal, 57 - 63 Hz for 60 Hz nominal
• Interface Port(s): DB-9 RS-232,USB,SmartSlot
• Colour: Black
• Adjustable voltage sensitivity
• Adjustable voltage-transfer points
• Audible alarms
• Automatic self-test
• Boost and Trim Automatic Voltage Regulation (AVR)
• Cold-start capable
• Disconnected battery notification
• Hot-swappable batteries
• Intelligent battery management
• LED status indicators
• Plug-and-Play external batteries
• Plug-and-Play installation
• Rack/Tower Convertible
• Safety-agency approved
• Scalable runtime
• SmartSlot
• Temperature-compensated battery charging
• USB Connectivity
• Two years repair or replace

Specifications

Attributes
Typical backup time at half load	13.6 minutes
Typical backup at full load	5.5 minutes
Waveform Type	Sinewave
Control Panel	LED status display with load and battery bar-graphs and On Line : On Battery : Replace Battery : and Overload Indicators
Audible Alarm	Alarm when on battery : distinctive low battery alarm : configurable delays
Compliance
Approvals	C-tick,CE,EN 50091-1,EN 50091-2,GOST,VDE
Electrical
Battery Type	Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
Typical Recharge Time	3 Hours
Output Capacity	3.0kVA
Output Wattage	2.7kW
Output Voltage	230V AC
Max Configurable Capacity	3.0kVA
Input Voltage Range	230V AC
Environmental
Environmental	Operating Temperature 0 to 40�C - Humidity 0 to 95%
Filtering
Filtering	Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449
Surge Energy	480 Joules
Output Distortion	less than 5%
Crest Factor	up to 5 : 1
General
Product Family	Smart-UPS XL
Product Type	Uninterruptible Power Supply
Warranty	Two years repair or replace.
Barcode	0731304230939
Interfaces/Ports
Input Connection type	IEC-320 C20, Schuko CEE 7 / EU1-16P, British BS1363A
Output Connections	(8) IEC 320 C13, (1) IEC 320 C19, (3) IEC Jumpers
Interface Port	DB-9 RS-232,Smart-Slot
Physical
Case Colour	Black
In The Box	CD with software, Smart UPS signalling RS-232 cable, User Manual
Dimensions	19.6cm (W) x 50.3cm (D) x 43.2cm (H) - Weight 55kg
