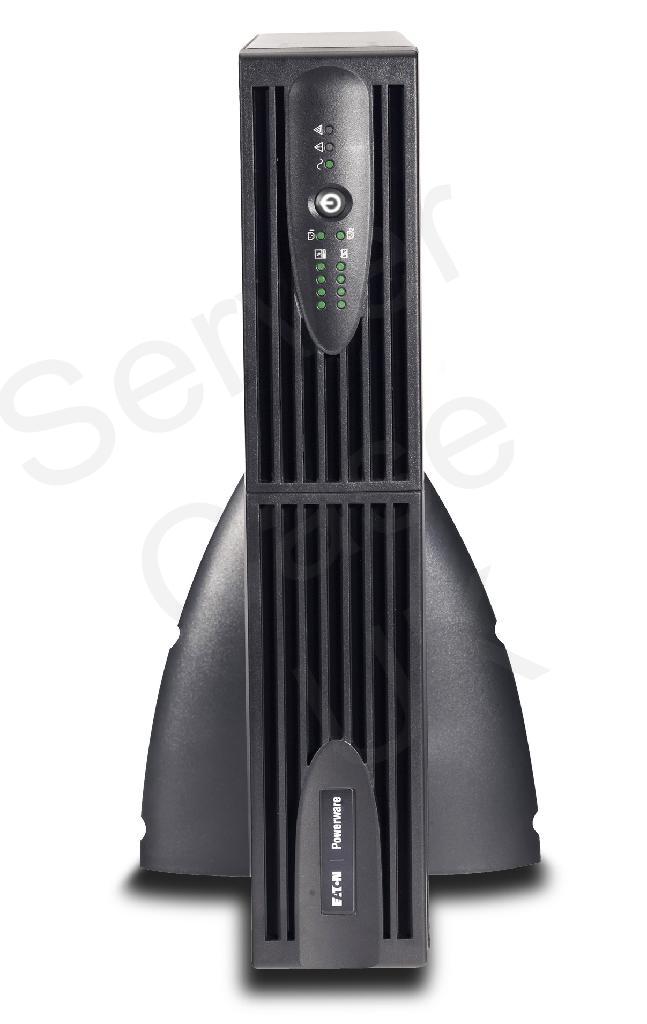

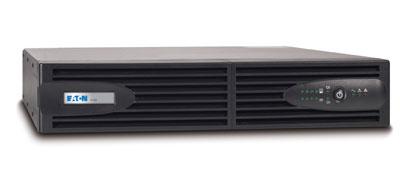

Eaton 5130i 2500-XL2U Rack Tower Uninterruptible Power Supply

The Eaton 5130 Rack/Tower UPS provides line-interactive backup power and scalable runtimes for servers, storage systems, VoIP gear and network equipment. With a two-in-one rack/tower form factor, the 5130 UPS packs up to three kVA of power into only 2U of rack space. The 5130 UPS provides additional battery runtime with 2U extended battery modules. To enhance compatibility with modern IT loads, the 5130 UPS is designed with a 0.9 power factor.

Features

• Protects connected equipment from five of the most common power anomalies: failures, surges, sags, under-voltage and over-voltage
• Conserves valuable rack space with 2U form factor, that includes internal batteries, and 3U short-depth form factor, available for short-depth cabinets
• Provides more real power (watts), with a 0.9 power factor, to protect more equipment and leave room for expanding IT systems
• Maximizes availability with extended battery runtime options, hot-swappable batteries and optional maintenance bypass
• Extends battery runtime for critical devices with load segments

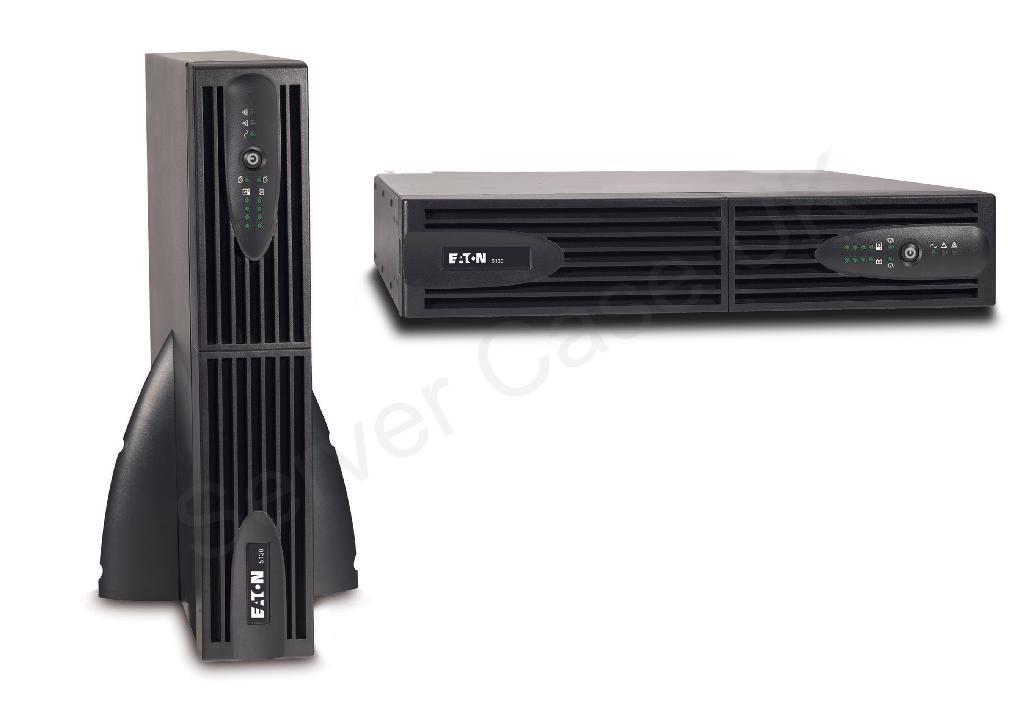

• Offers choice of rackmount or tower installation with two-in-one form factor (4-post rail kit and tower pedestals included)
• Delivers control and visibility with free power management software featuring an intuitive user interface

Specifications

Compliance
Safety	CE, cTUVus; C-Tick IEC/EN 62040-1-1,; UL 1778
EMC	IEC 62040-2, class B
Electrical
Battery Type	Maintenance-free sealed Lead-Acid
Output Capacity	2.5kVA
Output Wattage	2.25kW
Output Voltage	230V AC
Input Voltage Range	160 to 294V AC
Environmental
Environmental	Operating Temperature 0 to 40�C
Noise Level	45dbA
General
Model Name	5130
Product Family	Powerware
Product Type	Uninterruptible Power Supply
Warranty	2 Year Limited
Barcode	0790341053185
Interfaces/Ports
Input Connection type	IEC-C20 (16A)
Output Connections	8 x IEC 320 C13 , 1 x IEC 320 C19
Interface Port	1 x DB-9 RS-232 1 x RJ-45
RJ-45 Ports	1 x RJ-45
USB Ports	1 x USB
Serial Ports	1 x RS-232
Physical
Case Colour	Black
In The Box	RS-232 and USB 6-ft Communications Cables � Powerware Software Suite CD-ROM
Dimensions	44.1cm (W) x 63.4cm (D) x 8.6cm (H) - Weight 33.8kg
