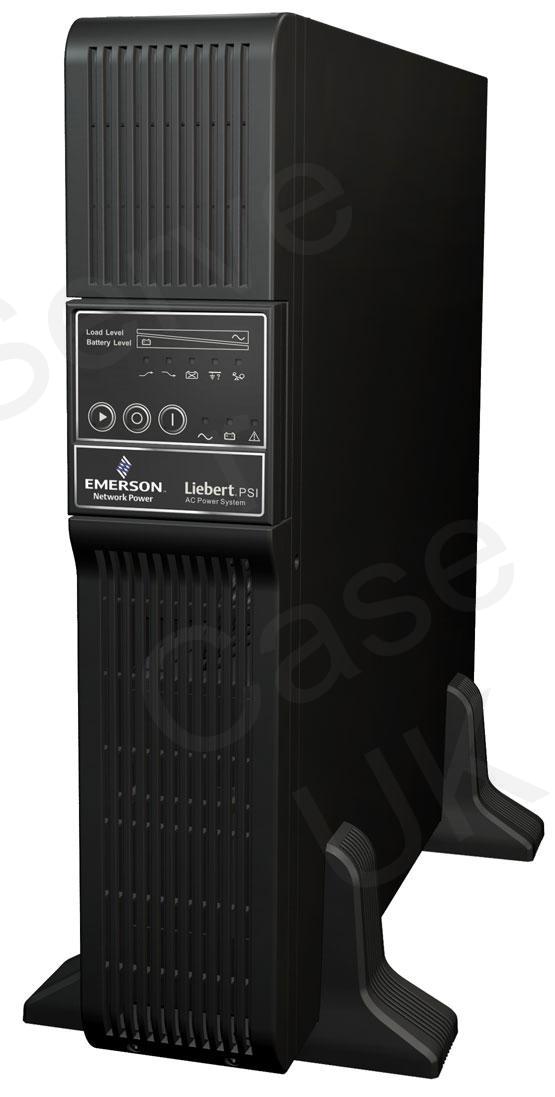

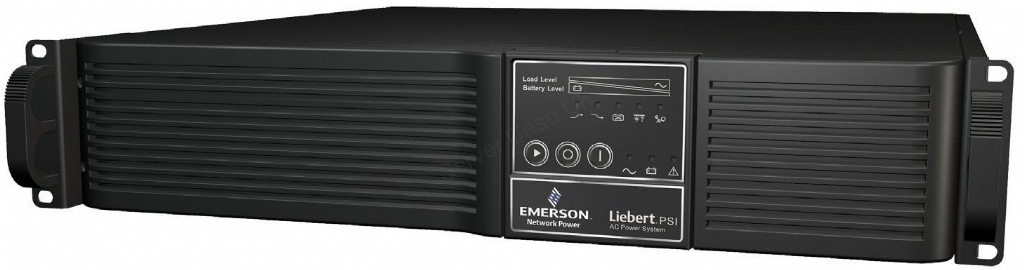

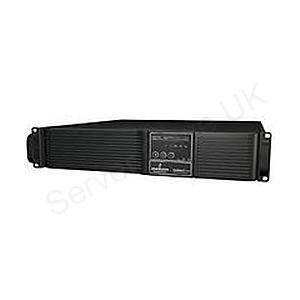

Liebert PSI- XR 3000VA Line-Interactive UPS System - 230V

Liebert PSI-XR is a compact, line-interactive UPS system designed especially for IT applications such as network closets and small data centres. It provides reliable power protection for servers, critical nodes, network workstations, large network peripherals, network routers, bridges, hubs and other electronic equipment. Matching battery cabinets are available to extend the on-battery operating time. Liebert PowerSure PSI-XR standard model may rackmounted or setup in tower configuration. The UPS includes data line surge protection, lightning and surge protection, and optional communications for shutdown and reporting. The XR model offers extended battery runtime, with the addition of external battery cabinets. Rack mounting rail kit is included as standard. Ideally Suited For: PCs � Network workstations � Servers � Network closets � Large network peripherals � VoIP.

Features

• LED Indicators: LED status display with Normal, On Battery, Replace Battery, Over Temp, Buck/Boost, % Load, Battery Capacity, Overload, Fault, and Site Wiring Fault Indicator
• Data Line Protection: RJ-45 network protection
• Software and Cable: Liebert Multilink Software, USB cable, and contact closure cable
• Communications Ports: USB, DB9 (contact closure) & Intellislot
• Sound Emission/Audible Noise: 40dB max in Line-mode, & 45dB max in Battery mode
• Cooling: Fan-cooled
• Provides six to seven battery-backed outlets depending on model size, allowing additional equipment to be connected to the UPS via the 15, 20 or 30 Amp receptacles
• Configurable input voltage window allows the UPS to be properly matched to the incoming utility power
• Automatic Frequency Sensing allows the UPS to automatically adjust to the input frequency, 50Hz or 60Hz
• LED display panel rotates 90� to make the readout of the LED display easy to see in rack or tower position
• Optional External Battery Cabinets provide extended runtime for applications that require longer backup time
• Provides network surge protection for equipment connected to the UPS via the RJ-45
• Offers multiple audible and visual alarms to immediately alert you to an input voltage fluctuation (buck/boost), output overload, low battery or replace battery condition
• Greater than five minutes of battery backup time at full load when utility fails
• Comprehensive analysis of the condition of the batteries within the UPS and will notify you when the internal batteries need to be replaced. The battery test feature can also be programmed for automatic operation using Liebert shutdown software.
• Allows fast and easy maintenance with user-replaceable hot-swappable batteries
• Provides remote emergency power off for safe emergency shutdown
• 0.9 Output Power Factor provides more power for your protected load, and more energy efficient operation
• Offers the most competitive price in its class, when ordered as a Network Solutions Package with factory-installed Liebert IntelliSlot Web Card
• Ships with batteries connected and charged, reducing installation time and costs
• Protects your investment with a standard two-year warranty with paid shipping both ways. Also available with optional extensions of one year or three years

Specifications

Attributes
Typical backup time at half load	10 minutes
Typical backup at full load	5 minutes
Waveform Type	Sinewave
Compliance
Safety	IEC62040-1-1
EMC	IEC/EN/AS 62040-2 2nd Ed Class A � Transportation: ISTA Procedure 1A Certification
Electrical
Battery Type	Valve Regulated Lead Acid
Typical Recharge Time	5 Hours
Output Capacity	3.0kVA
Output Wattage	27kW
Output Voltage	230V AC
Input Voltage Range	165 to 300V AC
Environmental
Environmental	Operating Temperature 0 to 40�C - Humidity 0 to 90%
Noise Level	40dbA
Filtering
Surge Energy	220 Joules
General
Model Name	PSI- XR
Product Type	Uninterruptible Power Supply
Warranty	2 Year
Barcode	0835514007654
Interfaces/Ports
Input Connection type	IEC-320 C20
Output Connections	6 x IEC 320 C13 + 2 x IEC 320 C19
USB Ports	1 x USB
Serial Ports	1 x DB-9
Physical
Case Colour	Black
In The Box	PS3000RT3-120XR UPS System, Tower Stands, Rack Mount Handles, DB9 Contact Closure Cable, USB Cable, and fixed rails
Dimensions	44.0cm (W) x 70.05cm (D) x 8.8cm (H) - Weight 47.8kg
