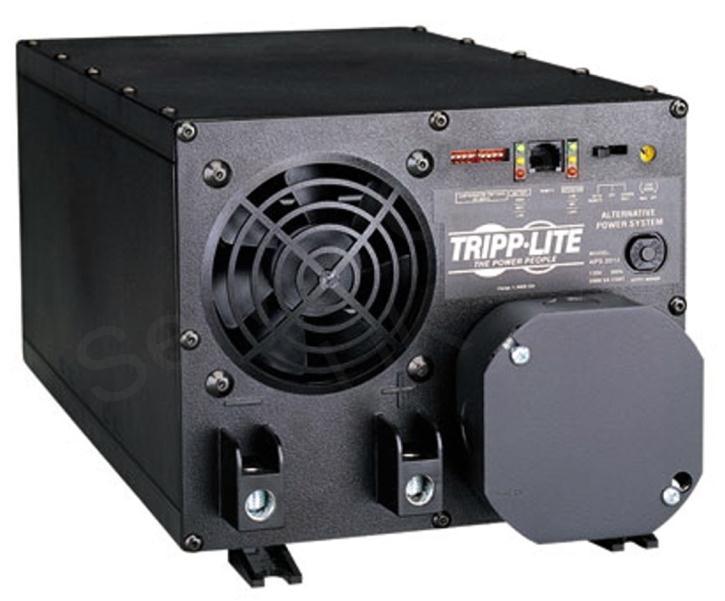

Tripp Lite PowerVerter APS INT Series 2000W DC-AC Inverter/Charger with Auto-Transfer Switching and Hardwire Input/Output

Tripp Lite's APSINT2012 DC-to-AC inverter with automatic line-to-battery transfer and integrated charging system serves as an extended run UPS, a standalone power source or an automotive inverter. Supplies up to 2000 watts of continuous 230V AC power from any 12V battery or automotive DC source. When hardwire AC input is energized, commercial power passes through to connected equipment and the battery set is recharged via 3 stage, selectable 15/60 amp charging system. In UPS mode, the APS system responds to blackouts and voltage fluctuations with a near instantaneous automatic transfer to battery-derived AC output. Includes a set of high current DC input terminals for simple installation (user supplies batteries and cabling - see owner's manual for recommendations). Passes sine wave utility or generator power during battery charging and UPS line power operation, plus efficient PWM sine wave AC output in inverter and UPS backup modes. Reliable large transformer design, with frequency control powers resistive electronic loads or large inductive motors, compressors and other items with high current needs on startup. Optional APSRM4 wired remote power switch with full status LEDs provides remote power inverter on/off switching and continuous status information (APSRM4 sold separate). Supports an unlimited amount of runtime with any number of user-supplied batteries connected. Highly adaptable to a variety of applications and site conditions with adjustable charger settings for wet/gel battery types and selectable line to battery power transfer voltages.



Typical Applications: Ideal for RVs, over-the-road trucking, conversion vans and fleet service vehicles; a standalone alternative power source for off-grid, alternative energy or export applications and as an uninterruptible power supply (UPS) for items compatible with a 20 millisecond transfer time. Moisture-resistant construction enables vehicular or marine operation in high humidity environments. NOTE: For sump pump applications, Tripp Lite recommends its UT Utility Truck Inverter/Chargers.Features

• 2000 watts continuous, 3000 watts OverPower and 4000 watts DoubleBoost inverter output (see specifications)
• Supports 230V AC output from a 230V AC line power source or 12V DC battery source
• 20 millisecond automatic transfer between line and battery power supports UPS protection during blackouts and voltage fluctuations for equipment compatible with a one cycle transfer time
• Double Boost inverter output supports momentary startup loads up to 200% of the continuous rating for up to 10 seconds (see specification chart)
• OverPower inverter output supports longer duration overloads to 150% for 1-60 minutes under ideal battery and temperature conditions
• 3 position operating mode switch supports AUTO mode to enable automatic transfer between DC and AC modes, CHARGE-ONLY to maintain a full battery charge
• 3 stage, 15/60 amp battery charger with adjustable settings for wet/gel battery types offers fast, reliable battery recharging
• Set of six front panel LEDs display AC/DC operational modes, overload status, DC voltage level, shutdown status and system fault status
• Set of 4 additional configuration dip switches support 4 levels of charger limiting relative to output load size
• Resettable 10A charger AC input breaker and resettable 15A AC output breaker and automatic 2 speed cooling fan protect the inverter from load and temperature related failures
• Automatic overload and thermal shutoff safely turns off inverter as excessive loads or overheating conditions develop
• Front panel remote control connector enables remote off/on switching (requires APSRM4 switch accessory)
• Auto Transfer Switching option for battery backup / UPS operation
• Reliability enhanced large-transformer design with protected DC and AC wiring terminals

Specifications

Electrical
Power Adaptor Type	AC/DC
Mains Voltage	230V AC
Input Voltage	12V DC
Power	2000W
Environmental
Environmental	Humidity 0 to 95%
General
Product Family	PowerVerter
Product Type	Power Adaptor
Warranty	2 years limited.
Barcode	037332090331
Physical
Case Colour	Black
In The Box	APSINT2012 Inverter/Charger; Instruction manual with warranty information
Dimensions	21.59cm (W) x 35.56cm (D) x 17.78cm (H) - Weight 19.1kg
