Intel� Nuc DC3217BY Intel Core i3 1.8GHz (3217U) (RED)

Specifications:

More Information:

Intels Next Stroke Of Genius - Intel Nuc

Just add a mSATA and SO-DIMM RAM, install your operating system of choice and you are ready to go ***

It’s one thing to power your digital display and transfer video blazingly fast. It’s another to do all that and more with a miniscule, intelligent powerhouse of a computing device. Which is why we invented the Intel® Next Unit of Computing (NUC). At a diminutive 4”×4”×2” form factor and equipped with the Third Generation Intel® Core™ i3 processor, the DC3217BY delivers stunning visuals and responsive performance from a pocketsized solution. What’s even more amazing, is that such a small device can offer so much power in an expandable, customizable package. Dramatically increase data transfer
rates and transform device interconnectivity with Thunderbolt™ technology. Get a difference in performance you can truly see and feel.

Visibly smart graphics using the 3rd generation Intel® Core™ i3-3217U processor deliver amazing performance and visually stunning graphics.

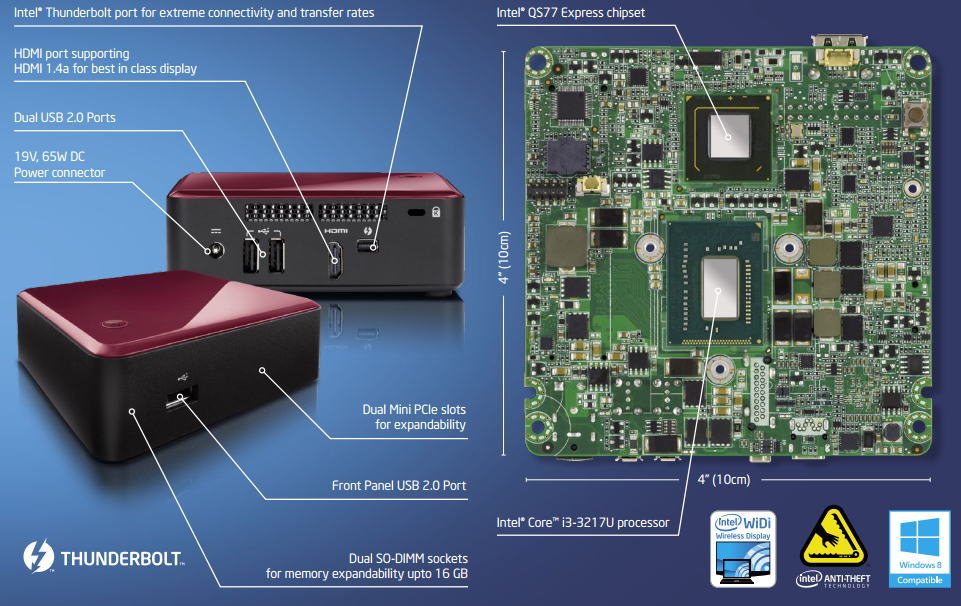

The DC3217BY features Intel’s Thunderbolt™ technology transforming device interconnectivity, dramatically increasing transfer performance with bi-directional 10Gbps speed, and offers daisy chaining to multiple devices, two SO-DIMM sockets for expandability upto 16 GB of memory, two PCIe* mini-card connectors for flexible support of wireless and SSD configurations, BIOS vault technology, fast boot and Intel® Visual BIOS.

Features:
- Integrated Board: D33217CK
- Dimensions: 116.6mm×112.0mm×39.0mm (4.59”×4.41”×1.55”)
- Cooling: Active
- Drive options: mSATA
- Color options: Maroon only
- Chassis design: Aluminum and Plastic
- Power Supply: 19V, 65W DC-DC power adapter included

Additional Features:
- Antenna for WIFI and Bluetooth pre-assembled
for ease of deployment Front Panel USB 2.0
- VESA mounting bracket included
- Product Guide

Technical Specification:

Processor Support
- Intel® Core™ i3 3217U Processor
(1.8 GHz, Dual Core processor with 3 MB smart cache)
- Supports Intel® 64 architecture 3

Chipset
- Intel® QS77 Express Chipset

Graphics
- Intel® HD Graphics 4000
- HDMI Port supporting HDMI 1.4a standard
- Thunderbolt port supporting display port capability

Peripheral Connectivity
- Three Hi-Speed USB 2.0 ports (two back panel ports and one front panel port)

Expansion Capabilities
- One full length mini-PCIe slot supporting mSATA
capability
- One half length mini-PCIe slot with dual USB 2.0 ports routed

System BIOS
- Intel® Visual Bios
- 64 Mb Flash EEPROM with Intel® Platform Innovation Framework for EFI Plug and Play
- Advanced configuration and power interface V3.0b, SMBIOS2.5
- Intel® Express BIOS update support fast boot bios – optimized post for almost instant-on access to pc from power on

System Memory
- Memory capacity: Dual-channel DDR3 with two connectors for 1600/1333/1066 MHz memory support (16 GB max)
- Memory Voltage: 1.5V and 1.35V

Hardware Management Features
- Processor fan speed control
- Voltage and temperature sensing
- Fan sensor inputs used to monitor fan activity
- ACPI-compliant power management control
- Thunderbolt Connector
- 10 Gb/s bi-directional and dual protocol for data and
display

Audio
- Intel® High Definition Audio (Intel HD Audio) via one HDMI 1.4a output and/or via one ThunderBolt connector (DisplayPort 1.1a) supporting 8-channel (7.1) digital audio
Indicators & Controls
- HDD LED, Power LED
- Power on/off

Physical Specifications
- Chassis Size: 4.59”×4.41”×1.55” (116.6mm×112.0mm×39.0mm)
- Board Size: 4”×4” (101.6mm×101.6mm)

Baseboard Power Requirements

- DC Power 19V, 65 Watt

The Intel Next Unit of Computing (Nuc) Kit DC3217BY delivers stunning visuals and responsive performance in a pocket sized solution. With a visibly smart Intel Core i3 processor, the NUC is a fully-scalable and complete unit of computing using the smallest possible form factor. What's more amazing is that such a small device can offer so much power in a flexible customizable package. Experience your movies, photos and games smoothly and seemlessly.

Effortlessly move between applications with smart multitasking delivered by Intel Hyper-Threading Technology. Dramatically increase data transfer rates and daisy-chain peripherals with thunderbolt technology. Get a difference in performance you can truly see and feel.
