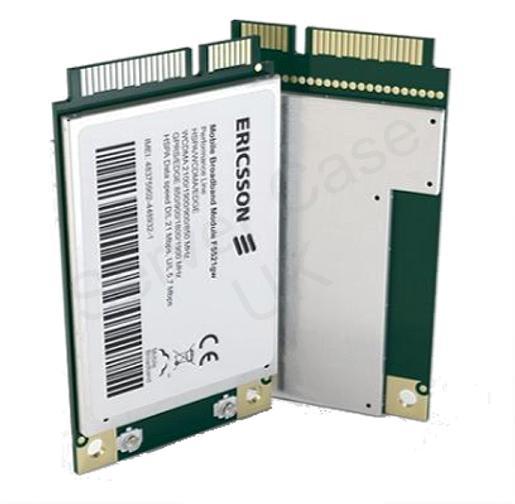

Lenovo ThinkPad Mobile Broadband Global Wireless WAN (WWAN) Option

WWAN is a predictable, cost-efficient remote access solution. Instead of managing the setup, use, and payment of multiple connectivity solutions for your remote workers (remote office connectivity, hotel and airport Wi-Fi, and home office access), you can use a single, cost-effective solution with wide national coverage, consistent experience, simple setup, comprehensive support, and predictable cost. Wireless WAN (WWAN) differs from a wireless LAN (WLAN) because it uses cellular network technologies such as WIMAX, CDMA, GSM, HSDPA, or 3G to transfer data. These cellular technologies are offered regionally, nationwide, and globally and are provided by a wireless service provider, typically for a monthly usage fee.



WAN cards: Requires separate agreement with select third-party service provider, and is subject to credit approval and applicable service agreement/terms, rate plan, and coverage maps of the provider. Service is available in select metropolitan markets, not available in all areas. Service provider, not Lenovo, is solely responsible for service. Lenovo customers may be contacted after purchase to activate service. A network connection, third-party software, or additional hardware may be required. Additional restrictions may apply. WWAN Service Providers: Requires separate agreement with select third party service provider, and is subject to credit approval and applicable service agreement/terms, rate plan and coverage maps of the provider. Service is available in select metropolitan markets, not available in all areas. Service provider, not Lenovo, is solely responsible for service. Lenovo customers may be contacted after purchase to activate service. A network connection, third-party software and/or additional hardware may be required. Additional restrictions may apply.Features

• Wireless Type: WWAN
• Wireless Standard: Integrated Mobile Broadband (3G)
• GSM/GPRS/EDGE data at 850 MHz, 900 MHz, 1800 MHz, and 1900 MHz
• UMTS: 384 kbps (Packet-Switched)/64 kbps (Circuit-Switched) DL; 384 kbps (Packet-Switched)/64 kbps (Circuit-Switched) UL
• GSM: 14.4 kbps UL/DL
• GPRS: 85.6 kbps DL; 42.8 kbps UL
• EDGE: 247.4 kbps DL; 123.70 kbps UL
• 3G: GPRS/WCDMA/HSPA+; 21 Mbps DL; 5.76 Mbps UL

Specifications

Compliance
Approvals	CE � FCC � R&TTE � IC � PTCRB � GCF � UL � Microsoft WHQL
Electrical
Power Consumption (Powersave)	10mA
Environmental
Environmental	Operating Temperature 0 to 65�C - Humidity 10 to 95%
General
Product Type	Wireless Adaptor
Warranty	One year customer replaceable unit (CRU).
Barcode	0885976849606
Physical
In The Box	ThinkPad Mobile Broadband Global � Installation Guide � Warranty Book � Software CD
Dimensions	3.0cm (W) x 5.1cm (D) x 0.43cm (H) - Weight 0.012kg
System Requirements
System Requirements	Hardware compatibility: ThinkPad T420, T420s, T520, W520; ThinkPad X220, X220t, X220 Tablet; ThinkPad L420, L421, L520
Operating Systems Supported	Microsoft Windows XP � Windows Vista (32-bit and 64-bit) � Windows 7 (32-bit and 64-bit)
Wireless LAN
Receive Sensitivity	GSM Power Class: MCS1-4 (GMSK): GSM850/900: Class 4/2W/33dBm GSM1800/1900: Class 1/1W/30dBm; MCS5-9 (8-PSK): GSM850/900: Class E2/0.5W/27dBm GSM1800/1900: Class E2/0.4W/26dBm � UMTS Power Class: Class 3 (24dBm)
