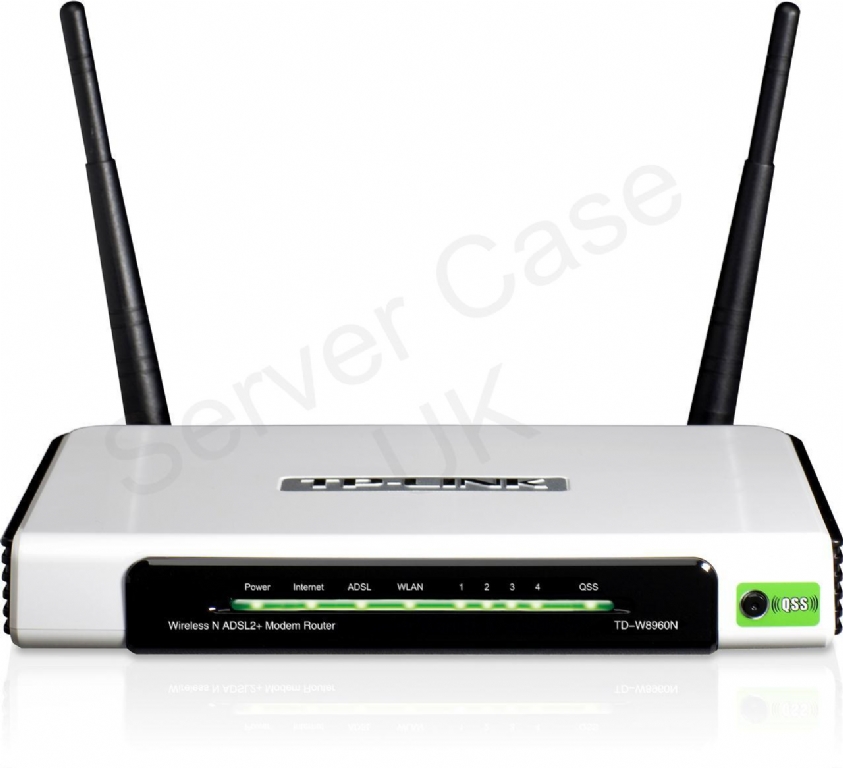

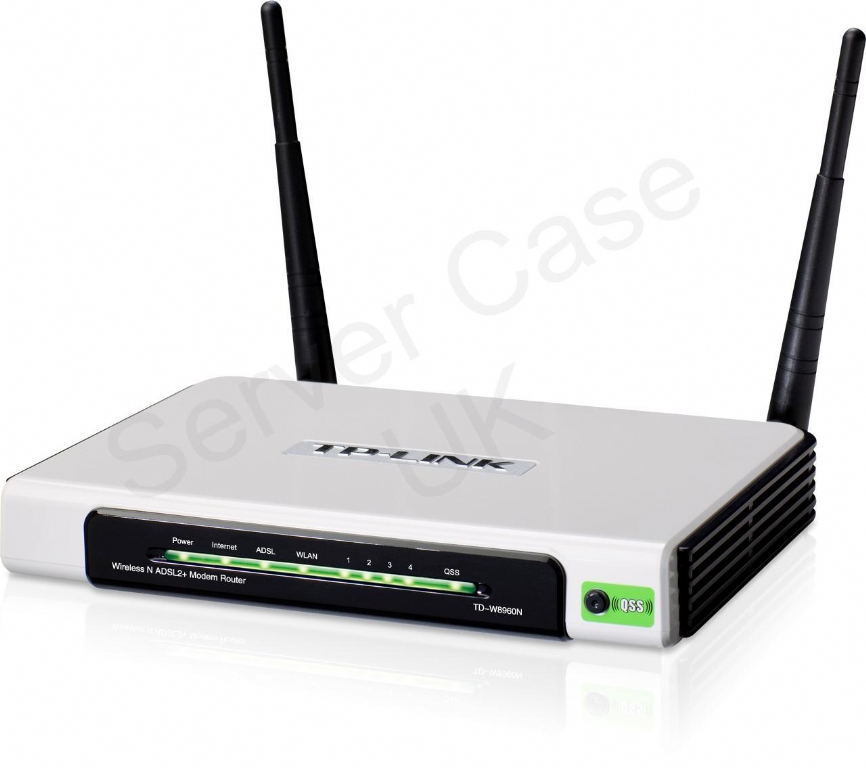

300Mbps Wireless N ADSL2+ Modem Router TD-W8960N is a high performance modem router that provides a full rate of ADSL2+ standard with the superb reliability and a cost-effective solution for home and small business. It combines the function of a high-speed DSL modem, a 4-Port 10/100Mbps NAT router and a wireless N access point. With the TD-W8960N, you can easily create a secure wireless network and share a high-speed internet connection while access to shared files, music, photos, and printers with multiple computers. As a 3-in-1 device, the TD-W8960N combines the functions of a high speed DSL modem, a 4-Port 10/100Mbps NAT router and a wireless N access point. Using a telephone line the TD-W8960N establishes a high-speed ADSL2+ Internet connection. Once set up, the device's wired/wireless functions can be used to share media between devices, browse the Internet, talk on an IP phone, or even stream HD video. Save time and money using one device instead of multiple devices that take longer to set up and occupy more cluttered space. Unlike dial-up Internet service, a DSL Internet connection is always on, so users need not dial up or wait to access the web. Unlike dial-up Internet service, a DSL Internet connection is always on, so users need not dial up or wait to access the web.
TD-W8960N is a high-speed solution that complies with IEEE802.11n standards with wireless transmission speeds of up to 300Mbps. It adopts MIMO technology, has two detachable Omni directional antennas providing better wireless performance, transmission rates, stability and coverage. Users can get up to 15x the speed and 5x the range of conventional 11g products and share high-speed DSL Internet connections, photos, music, files, and even heavy bandwidth consuming applications like wireless HD video streaming, something not possible with 11g products, from anywhere in their entire homes or even in their backyards. To setup their network's security encryption, users need simply to press the QSS button on their TD-W8960N, then push the QSS button or enter the router's PIN Code in the wireless client, and it will automatically establish a WPA secure connection. Not only is this faster than normal security setups but more convenient in that users don't need to remember a password. Having the IPSec VPN (site-to-site) function, the TD-W8960N is no longer just a wireless ADSL modem router, it can also works as a VPN gateway, which support up to 10 IPSec VPN tunnels simultaneously. VPN (Virtual Private Network) function can create encrypted tunnels between the company's network and the remote users.Features
Specifications
Compliance | |
Standards | CE, FCC, RoHS |
Electrical | |
DC Input Voltage | 12VDC |
AC Input Current | 1.0Amps |
Environmental | |
Environmental | Humidity 10 to 90% Operating Temperature 0 to 40°C |
Ethernet | |
Protocols Supported | ATM Forum UNI3.1/4.0 • PPP over ATM (RFC 2364) • PPP over Ethernet (RFC2516) • IPoA (RFC1577/2225) • PVC - Up to 8 PVCs |
Ethernet Standards | IEEE 802.3, 802.3u |
General | |
Model Name | TD-W8960N |
Product Type | Modem Router |
Barcode | 6935364060343 |
Interfaces/Ports | |

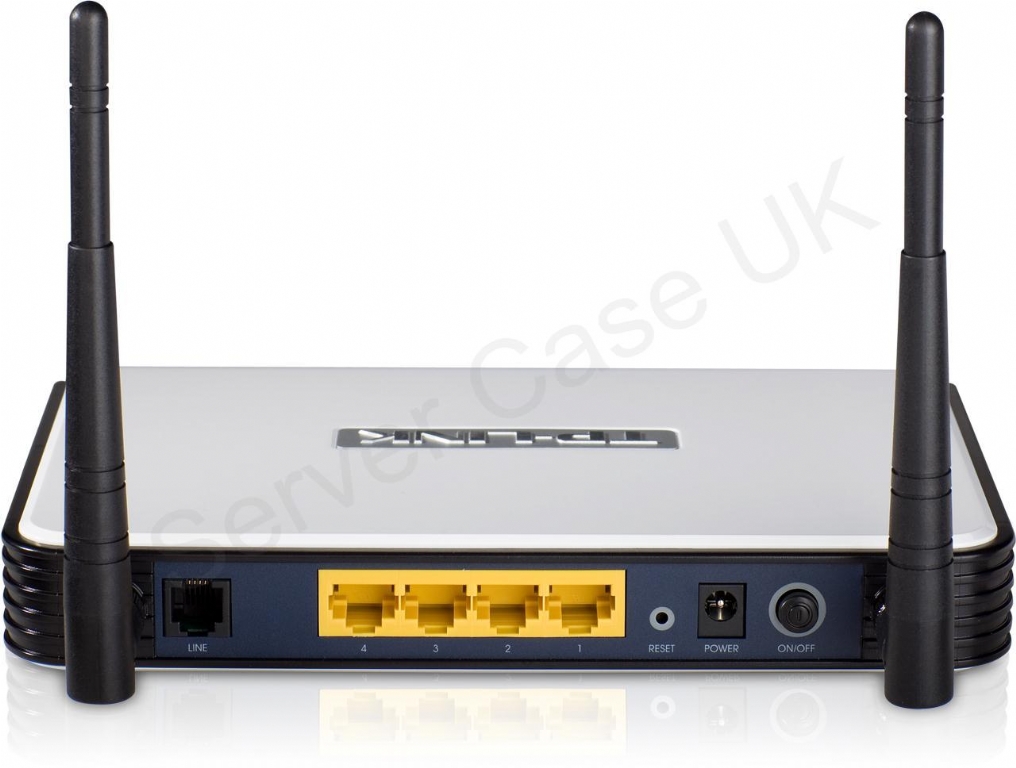

LAN Ports | 4 port(s) x RJ-45 10/100Mbps Ethernet |
Modem Port | 1 x RJ-11 |
Physical | |
LED Status Indicators | Power, Internet, ADSL, WLAN, LAN1 to 4, QSS |
In The Box | TD-W8960N • External Splitter • RJ-11 Telephone Cable • RJ-45 Ethernet Cable • Quick Installation Guide • Resource CD • Power Adaptor |
Dimensions | 20.0cm (W) x 14.0cm (D) x 2.8cm (H) |
Router | |
Router Type | ADSL2+ |
Security | |
Security | NAT Firewall, SPI Firewall, MAC / IP / Packet / Application / URL Filtering, Denial of Service(DoS), SYN Flooding, Ping of Death |
VPN Pass Through/Multi-Sessions | IPSec, • PPTP • LT2P Pass-Through |
System | |
Management | Web Based Configuration(HTTP), Remote management, Telnet management, Command Line Interface, SSL for TR-069, SNMP v1/2c, SNMP over EOC, Web Based Firmware Upgrade, CWMP(TR-069), Diagnostic Tools |
System Requirements | |
Operating Systems Supported | Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7, MAC OS, NetWare, UNIX or Linux. |
WAN | |
WAN Standards | ADSL Standards: Full-rate ANSI T1.413 Issue 2, ITU-T G.992.1(G.DMT), ITU-T G.992.2(G.Lite); ITU-T G.994.1 (G.hs), ITU-T G.995.1 • ADSL2 Standards: ITU-T G.992.3 (G.dmt.bis), ITU-T G.992.4 (G.lite.bis) • ADSL2+ Standards: ITU-T G.992.5 |
Wireless LAN | |
Wireless LAN Standards: | IEEE 802.11 b g n |
Frequency Band | 2.4 to 2.4835GHz |
Data Transfer Rates | Data Transfer Rates Up to 300Mbps |
Transmit Power | 20dB |
Encryption | 64/128-bit WEP WPA-PSK WPA2-PSK |
Antenna Type | 2x3dBi Omni directional, Detachable, Reverse SMA |
