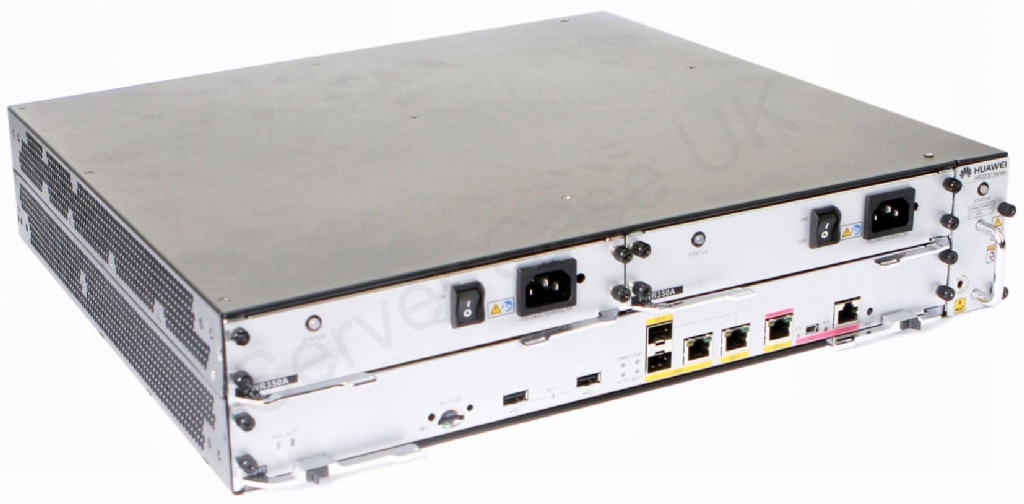

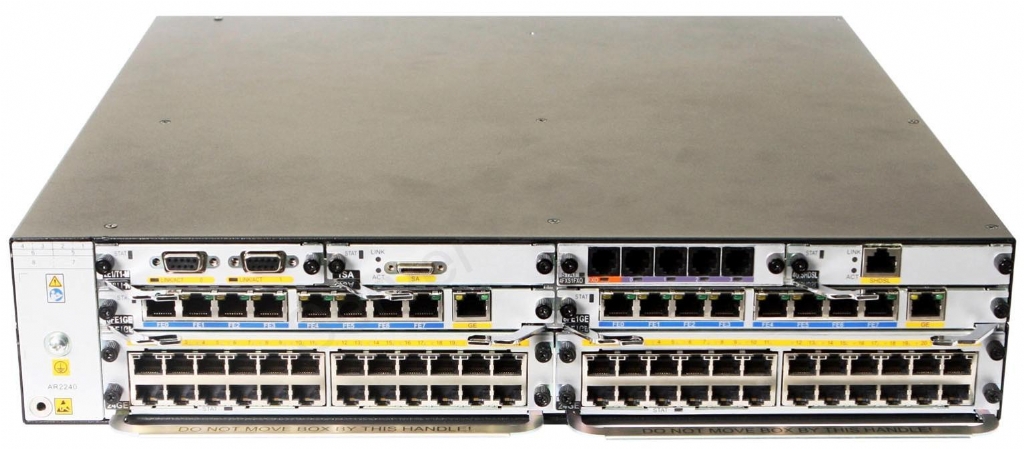

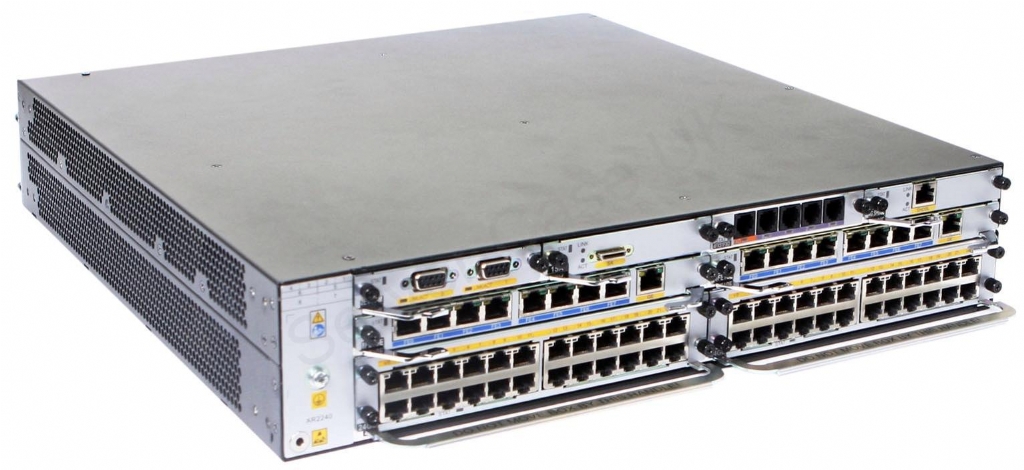

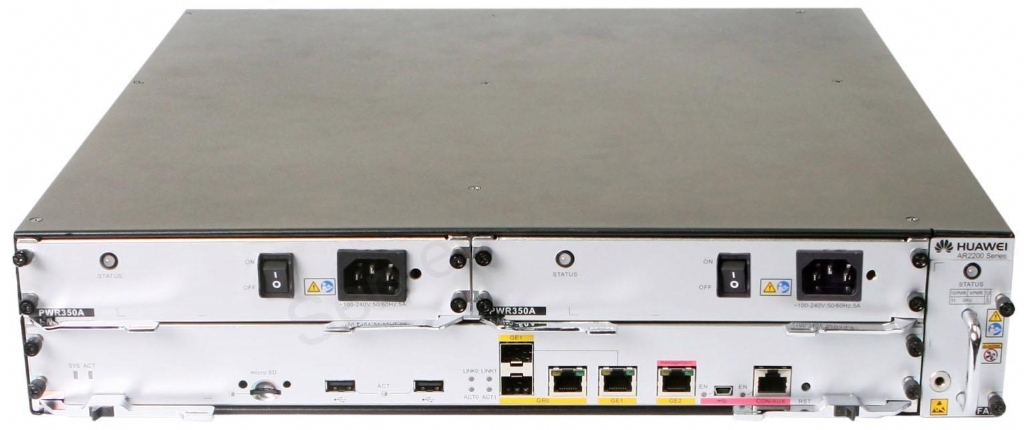

Huawei AR2240 Basic Configuration Enterprise Network Router - 1 x GE WAN, 2 x GE Combo WAN, 2 x USB, 2GB MircoSD, 4 x SIC Slots

The AR2200 uses the embedded hardware encryption technique and supports the voice Digital SignalProcessor (DSP). It supports firewall functions, call processing, voice mail, and various application programs.The AR2200 supports various wired and wireless access modes, such as E1/T1, xDSL, xPON, CPOS and 3G.The AR2200 series include: AR2220 and AR2240.



The AR2200 uses the multi-core CPU and non-blocking switching structure and provides industry-leadingsystem performance, meeting network extension requirements and service development requirements ofenterprises.� Multi-core CPUThe multi-core CPU improves the speed of concurrent processing of data and voice services, whichmakes it possible to deploy a large number of services.� Non-blocking switching for service trafficThe bus channel bandwidth of single slot is up to 10 Gbit/s.� Independent protocol management, service processing, and data switching, ensuring high performanceand improving service reliability� Integrated routing and switching functionsThis feature improves the data switching efficiency between interface cards and simplifies deviceconfigurations and maintenance.� Hot swappable interface cards and redundant components such as fan modules and power modulesensuring service reliability and stabilityFeatures

• Forwarding capacity: 2Mpps (With SRU40), 3.5Mpps (With SRU80)
• WAN speed with services: 600Mbps (With SRU40), 1800Mbps (With SRU80)
• Fixed port: 3GE (two combo ports)
• Slot: 4SIC + 2WSIC + 2XSIC
• Dimensions (WxDxH): 442 mm x 470 mm x 88.1 mm
• 3rd Generation AR with Industry-Leading Performance
• Dual-Mode Network, Supporting Flexible Access
• Services Integrated on One Router

Specifications

Compliance
Safety	ACL, firewall, 802.1x authentication, MAC address authentication, Web authentication, AAA authentication, RADIUS authentication, HWTACACS authentication, broadcast storm suppression, ARP security, ICMP attack defense, URPF, IP Source Guard, DHCP snooping, CPCAR, blacklist, IP source tracing
Electrical
Voltage/Power/Frequency	100 to 240VAC / 50 to 60Hz
Ethernet
Protocols Supported	IEEE 802.1P, IEEE 802.1Q, IEEE 802.3, VLAN management, MAC address management, MSTP
General
Model Name	AR2240-AC-SU80-AC
Product Family	AR2200
Product Type	Network Router
Barcode	6920702722960
Interfaces/Ports
LAN Ports	5 port(s) x RJ-45
USB Ports	2 x USB
Memory
Memory (Maximum)	2048MB
Physical
Dimensions	8.81cm (W) x 44.2cm (D) x 47.0cm (H) - Weight 8.85kg
Security
Security	ACL, firewall, 802.1x authentication, MAC address authentication, Web authentication, AAA authentication, RADIUS authentication, HWTACACS authentication, broadcast storm suppression, ARP security, ICMP attack defense, URPF, IP Source Guard, DHCP snooping, CPCAR, blacklist, IP source tracing
VPN	IPSec VPN, GRE VPN, DSVPN, SSL VPN, L2TP VPN
System
Management	Upgrade management, device management, GTL, SNMP(v1/v2c/v3), NTP, CWMP, Auto-Config, deployment using USB disk, NetConf, CLI
