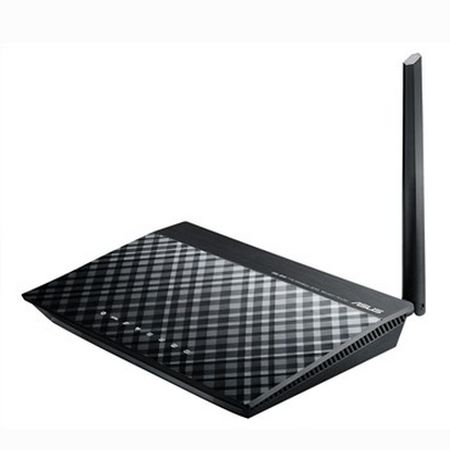

ASUS (DSL-N10 C1) 150Mbps Wireless N & ADSL Modem Router 10/100 5dBi Antenna

DSL-N10 C1

Sorry, but this product is no longer available to purchase online.

Please contact us to discuss alternative products which may be suitable.

Looking for Compatible Products?

More from this brand

Product Description

DSL-N10_C1 with 5dBi antenna

Wireless-N150 ADSL Modem Router

Dual-purpose 150 Mbps wireless ADSL modem router with outstanding flexibility
ASUSWRT Dashboard for easy 30-second setup and advanced network control via an intuitive graphical interface
Four independent SSIDs for flexible and secure Wi-Fi network configuration
Physical WPS button for easy device pairing, plus physical Wi-Fi on/off switch for easy control

Fast Wi-Fi, with more space and less clutter

The ASUS DSL-N10 C1 ADSL modem router has Wi-Fi speeds up to 150Mbps. It replaces the ADSL modem from your internet service provider, saving space and reducing clutter. DSL-N10 C1 features the new ASUSWRT user interface with advanced configuration and monitoring functions, and only takes 30 seconds to set up. Four separate SSIDs give users secure and flexible Wi-Fi network access options. Physical WPS and Wi-Fi on/off button give one-touch control over device pairing and wireless power.

Powerful and Wide Coverage

Featuring the 5dBi high-gain antennas, the DSL-N10 C1 provides a boosted signal to ensure extended wireless networking range.

Easy 30-second router setup

Use your smartphone, tablet or PC to set up your ASUS router effortlessly in less than 30 seconds* with just 3 easy steps. Simply connect the cables to the router, open a browser, and follow the setup wizard to get you connected to the internet in no time.

Simple setup, powerful features with real-time traffic and connection quality monitoring

With the easy to use ASUSWRT Dashboard, you can setup, monitor and control your network from one intuitive interface.

DSL-N10 C1 features special ADSL-related enhancements to the intuitive ASUSWRT graphical interface, inlcuding a signal-to-noise ratio (SNR) measuring tool for monitoring the stability of an ADSL connection. A traffic monitor shows the data sent and received via the WAN, wired and wireless networks, while a reporting tool lets you send feedback about connection issues directly to a technical support team, with technical log files automatically included.

Discrete and secure Wi-Fi networks via guest access

The DSL-N10 C1 supports up to four separately-configurable wireless networks. These let you create secure guest networks, and there are advanced controls for network usage and access permissions, including parental controls.

EZ WPS connection

EZ WPS Enables you to set up a secure wireless network in 2 steps

Step 1

Press the WPS button on the wireless adapter. The WPS Wizard pops up and starts searching for WPS-supported routers.

Step 2

Press and hold the WPS button on your ASUS router for at least four seconds to sync the secure Wi-Fi connection with the new device, and setup is done

Wi-Fi on/off

Simply press the WPS/Wi-Fi button on your ASUS router to instantly turn Wi-Fi on or off to save energy.

Specification

Type: ADSL/Cable Router
Connectivity: Wireless
Max Wireless Transfer Rate: 150 Mbps
Interface(s): 1 x RJ11 for ADSL
4 x RJ45 10/100 BaseT for LAN
IEEE Standards:
Frequency: 2.4GHz
Button(s): WPS Button
Reset Button
Power Button
Wireless on/off Button
Power Supply: AC Input : 100 ~240 V(50~60HZ)
DC Output : 12 V/0.5 A
Antenna(s): Detachable 5 dBi antenna x 1
EIRP:
Dimensions (W x D x H): 123 x 190 x 35 mm (WxDxH)
Wireless Functions:
Security: 64-bit WEP 128-bit WEP WPA2-PSK WPA-PSK WPA-Enterprise WPA2-Enterprise Radius with 802.1x WPS support
Wireless Standards: IEEE 802.11b IEEE 802.11g IEEE 802.11n IPv4 IPv6
Signal Rate: 802.11b : 1 2 5.5 11Mbps
802.11g : 69121824364854Mbps
802.11n : up to 150Mbps
DHCP:
Port Forwarding:
VPN Support: IPSec Pass-Throuth
PPTP Pass-Through
L2TP Pass-Through
Management: Web-based GUI configuration
Firmware upgraded
Auto VPI/VCI detection
Configuration backup and restore
Diagnostics
Log & Trace function
Dynamic DNS:
Dual Band: No
USB Sharing: -
Advanced Features: See Overview
Max Wired Transfer Rate: 10/100 Mbps
Environment (℃):
Package Contents: DSL-N10_C1 Wireless ADSL Modem Router
Power Adapter
Quick Start Guide
Support CD (user manual Utilities)
RJ45 cable RJ11 cable
Splitter (varies with regions)
Package Type: Retail
Package Weight: 0.4500 kg
Warranty: 3 Years
