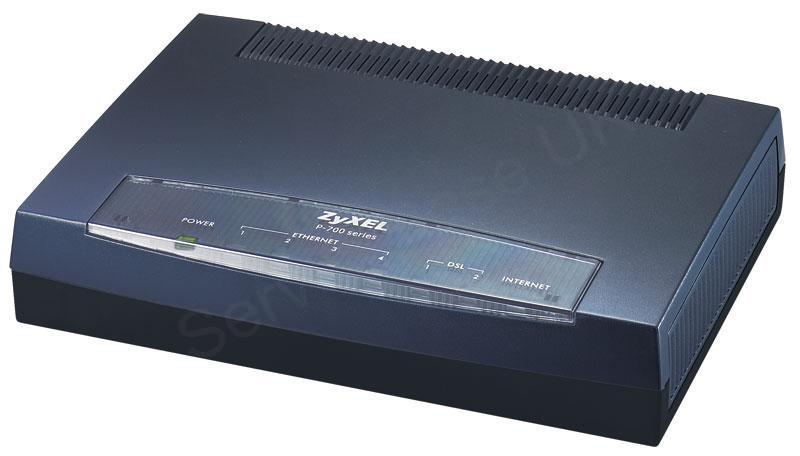

ZyXEL Prestige 793H v2 4-wire bonded G.SHDSL.bis Router with 4-port 10/100 switch

P-793H v2 is a high performance G.SHDSL.bis gateway for small/medium office to have Internet access and LAN-to-LAN application over the existing copper line. P-793H v2 makes full use of the advanced G.SHDSL.bis technology, its symmetric transmission data rate can be up to 11.4 Mbps. P793H v2 is a G.SHDSL.bis gateway with high flexibility to support ether ATM mode or EFM mode providing high-speed LAN-to-LAN connection and Internet access for small business or branch offices through G.SHDSL.bis connection over the copper line. User can set up point to point connection between two P793H v2 devices. The connections offer a cost-effective, high-speed connection for high bandwidth applications such as video conferencing and distance learning. IPSec VPN is a standards-based VPN that offers flexible solutions for secure data communications across a public network like the Internet.

Features

• Symmetrical high-speed Internet access
• Auto detection to support EFM or ATM with single device
• End-to-end connectivity
• IPSec VPN
• 1 RJ-11 interface for 4-wire G.SHDSL.bis WAN port
• 4 auto-sensing 10M/100M Ethernet LAN ports (RJ-45)

Specifications

Electrical
Power Adaptor Type	AC
Power Adaptor Output	12VDC
Environmental
Environmental	Operating Temperature 0 to 40�C - Humidity 20 to 90%
General
Model Name	793
Product Family	Prestige
Product Type	Router
Barcode	4718937514731
Interfaces/Ports
ADSL Interface	1 x RJ-11
LAN Ports	4-Port Switch ,10/100M Auto MDI/MDIX 4 x RJ-45 10/100Mbps Ethernet
Physical
Case Colour	Black
Dimensions	18.1cm (W) x 12.8cm (D) x 3.7cm (H) - Weight 0.250kg
Security
Security	User authentication (PAP, CHAP) with PPP (RFC 1334, RFC 1994) � Stateful packet inspection firewall � Content filter � Prevent denial of service � Access control of service � Real-time attack alert and log
VPN	IPSec VPN support � IKE/manual key � DES/3DES/AES encryption � MD5/SHA1 authentication � FQDN � NETBIOS pass-through for IPSec � IPSec VPN keep-alive � IPSec NAT traversal � Self-diagnostic
Site to Site VPN Policies	10
System
Management	Web-based configuration � Command-line interface � Password-protected Telnet support � SNMP MIB I/MIB II support � TFTP & FTP firmware upgrade and configuration backup � TR-069 HTTPS
