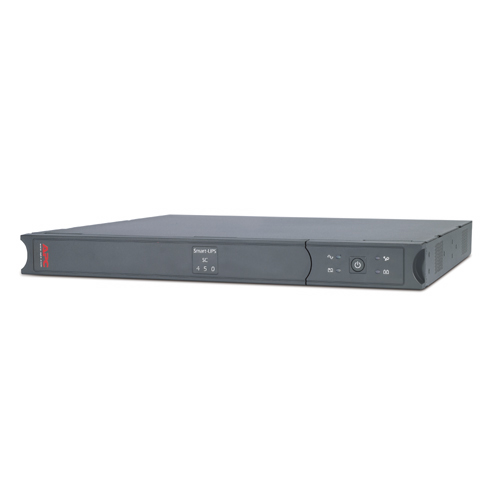

APC Smart-UPS SC 450VA 230V 1U Rackmount/Tower

APC Smart-UPS SC is the perfect protection for the IT resources of your growing business. Manageable and cost effective, APC Smart-UPS SC is designed for use by small and medium companies looking to protect entry level servers and networking equipment, providing both power and data-line protection. Included PowerChute Business Edition management software allows you to configure safe system shutdowns and take advantage of advanced UPS management features like automated risk assessments and runtime capacity calculations. (All major operating systems supported). Communications are through your server's standard serial port. When you are ready to take your business to the next level you can use the same software environment found on Smart-UPS SC to seamlessly manage other Smart-UPS models, allowing you to grow your IT infrastructure without having to replace your software or retrain your administrators. Built on the same standards as the award winning Smart-UPS UPS, the Smart-UPS SC is the UPS to start your business with.

Features

• Front-access servicing
• Multiple mounting methods
• Rack/Tower Convertible
• Adjustable voltage-transfer points
• Audible alarms
• Automatic restart of loads after UPS shutdown
• Automatic self-test
• Boost and Trim Automatic Voltage Regulation (AVR)
• Cold-start capable
• Dataline Surge Protection
• Hot-swappable batteries
• InfraStruXure Manager Compatible
• Intelligent Battery Management
• LED status indicators
• Manage multiple UPSs
• Network manageable
• Power conditioning
• Predictive failure notification
• Resettable Circuit Breakers
• Safety-agency approved
• User-replaceable batteries
• Two years repair or replace

Specifications

Attributes
Typical backup time at half load	19.4 minutes
Typical backup at full load	5.9 minutes
Waveform Type	Stepped approximation to a Sinewave
Control Panel	LED status display with On Line : On Battery : Replace Battery and Overload indicators
Audible Alarm	Alarm when on battery : distinctive low battery alarm
Compliance
Approvals	C-tick , CE , EN 50091-1 , EN 50091-2 , GOST , PCBC , VDE
Electrical
Battery Type	Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
Output Capacity	0.45kVA
Output Wattage	0.28kW
Output Voltage	230V AC
Max Configurable Capacity	0.45kVA
Input Voltage Range	160 to 286V AC
Environmental
Environmental	Operating Temperature 0 to 40�C - Humidity 0 to 95%
Filtering
Filtering	Full time multi-pole noise filtering : 0.7% IEEE surge let-through : zero clamping response time : meets UL 1449
Surge Energy	320 Joules
Output Distortion	less than 5% at full load%
Crest Factor	up to 5 : 1
General
Product Family	Smart-UPS SC
Product Type	Uninterruptible Power Supply
Warranty	2 Years Repair or Replace.
Barcode	1PSC450RMI1U
Interfaces/Ports
Input Connection type	IEC-320-C14
Output Connections	4 x IEC 320 C13, 2 x IEC Jumpers
Interface Port	1 x DB-9 RS-232
Physical
Case Colour	Grey
In The Box	CD with software, Rack Mounting Brackets, Smart UPS signalling RS-232 cable, User Manual
Dimensions	43.2cm (W) x 38.3cm (D) x 4.4cm (H) - Weight 10.18kg
