Cooler Master 690 II Advanced NVIDIA Edition USB 3.0 Mid Tower Chassis (Black/Green)

CM 690 II Advanced NVIDIA Certified Edition (USB 3.0 version) comes with a NVIDIA logo side panel, clean looking external and internal accents. It makes it possible to take advantage of excellent airflow and water cooling options to vastly reduce temperatures on system components. The CPU mounting hole size has been enlarged to make installing CPU heatsink even more convenient, and the rubber grommets have been redesigned for improved cable management. Additionally, the CM 690 II Advanced NVIDIA Edition (USB 3.0) is equipped with two USB 3.0 internal connectors for faster data transfer.

Features

• Supports two USB 3.0 ports (internal)
• Enlarged front and top mesh design for superb ventilation
• Can accommodate an internal 120 x 240 mm radiator at the top and bottom
• Dust-control filters for all meshed areas
• Supports for up to 10 fans (up to 5 x 140 mm fans)
• Front panel green LED fan on/off switch

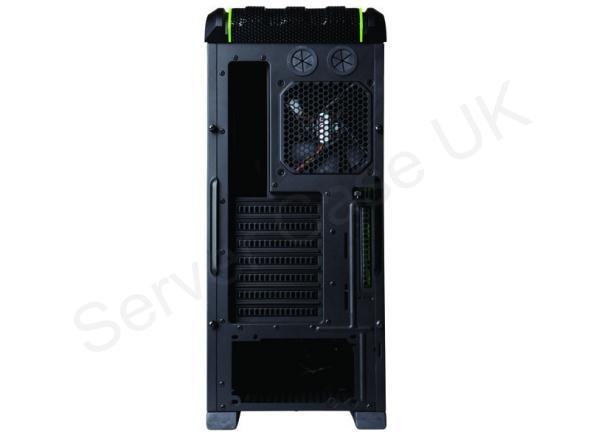

• Rear tubing holes for water cooling
• Includes 1.8 and 2.5 inch HDD and SSD adaptors
• More and redesigned rubber grommets for improved cable management

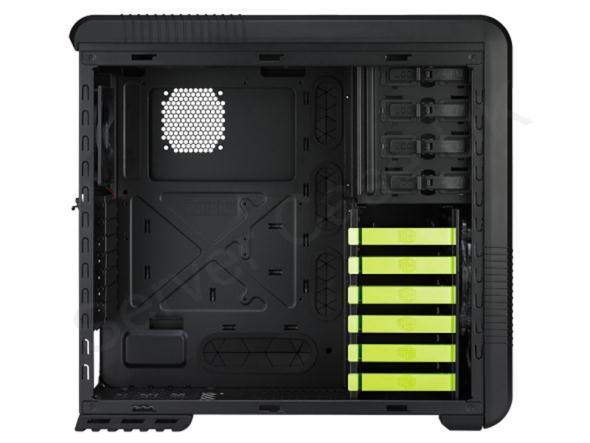

• Larger CPU heatsink cut-out on the mainboard tray

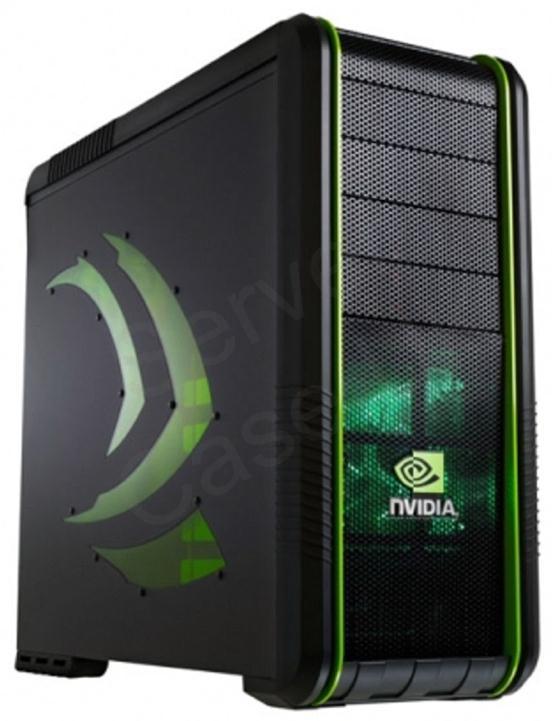

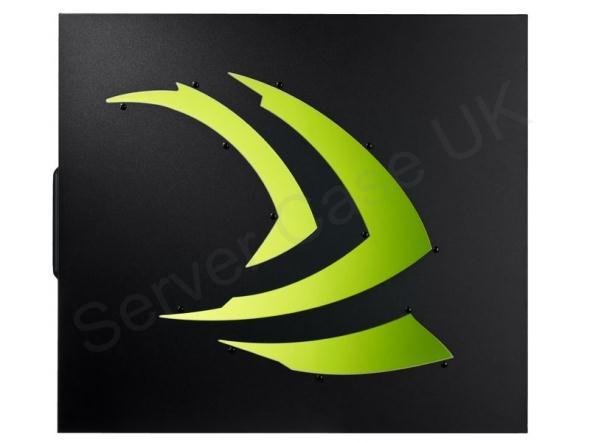

• Stylish side panel window with NVIDIA logo cut-out

Specifications

Electrical
Voltage/Power/Frequency	100 to 240VAC / 50 to 60Hz
Cooling System	Front: 140 x 25 mm Green LED fan x 1 / 1200 RPM / 19 dBA � Rear: 120 mm fan x 1 / 1200 RPM / 17 dBA � Top: 140 x 25 mm fan x 1 / 1200 RPM / 19 dBA (supports 120 / 140 mm fan x 2)
Expansion
Expansion Slots	8
General
Product Family	CM 690 II
Product Type	Barebone Computer
Warranty	Two years.
Barcode	4719512034583
Interfaces/Ports

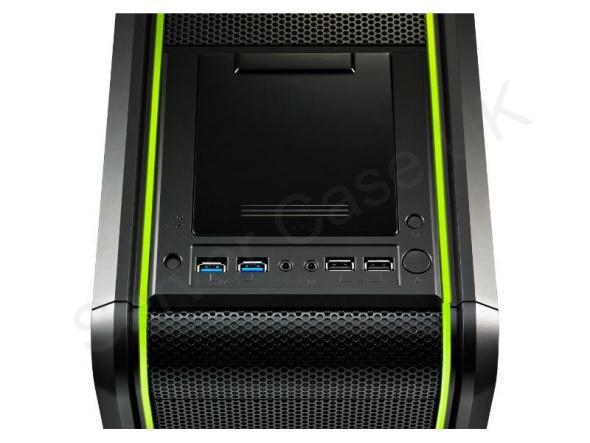

USB Ports	2 x USB 3.0 � 2 x USB 2.0
Audio Line In Ports	1 x 3.5mm Mini-Jack
Microphone In Port	1 x 3.5mm Mono Mini-Jack
Physical
Case Colour	Black
LED Status Indicators	Front green LED fan on/off switch
Motherboard Compatibility	ATX � Micro ATX � Mini ITX
Dimensions	21.45cm (W) x 52.88cm (D) x 49.6cm (H) - Weight 9.56kg
Storage
Number of Bays for Hot Pluggable Hard Drives	2 x 3.5/2.5 inch HDD
External Expansion Bays	1 x 3.5 inch � 4 x 5.25 Inch
Internal Expansion Bays	6 x 3.5 inch
