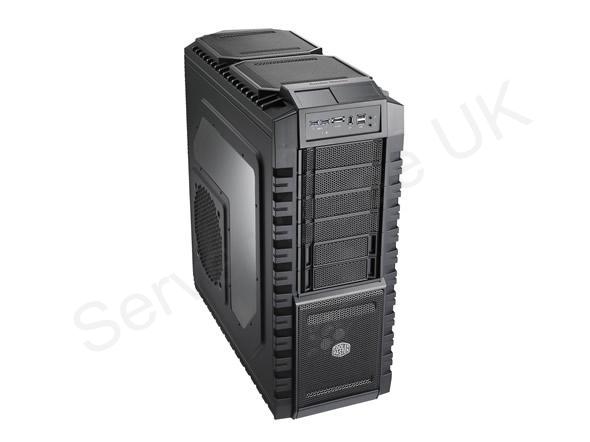

Cooler Master HAF X MicroATX/ATX/E-ATX/XL-ATX Full Tower Case

The much anticipated HAF X debuts as the most powerful HAF (High Air Flow) chassis yet. Designed for performance systems, this chassis is able to house today's latest and hottest CPUs, motherboards, graphics cards and is even compatible with USB 3.0 devices. With specialized support and cooling for graphic cards, massive airflow with the help of up to four gigantic fans and easy access to installed components, this is as close as it gets to a system builder's 'dream case'. HAF X provides powerful airflow with the help of massive-sized fans: dual 200mm top fans, front 230mm red LED on/off fan provide outstanding system cooling and extreme airflow for the entire system. An additional 200mm fan with dedicated air duct has also been added for unsurpassed VGA cooling. A unique feature of the HAF X is that users can easily swap hard drives with the new SATA dock without the need of removing the side panel. Other notable mentions include tool-free design, refined cable management system (including a power cable cover), safety on/off button cover and a bottom-mount power supply. Expansion for tomorrow�s most demanding graphic cards is not a problem with the nine expansion slots, spacious interior for extra long boards (i.e. ATI Radeon HD 5970) and even an adjustable VGA card holder for added sturdiness.

Features

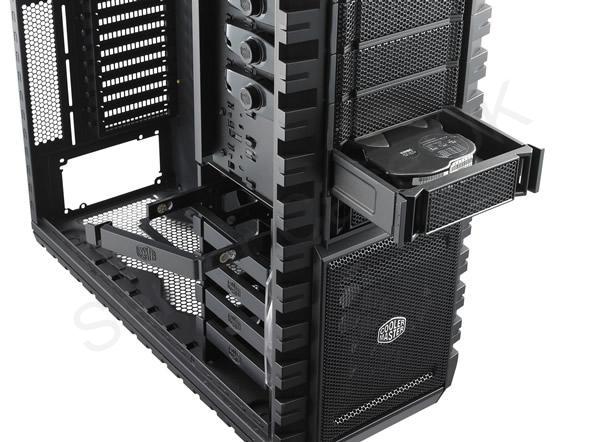

• SATA dock for easy installation without the need of removing side panel
• USB 3.0 on front I/O panel
• Air Duct to cool the latest graphic cards
• Up to 1 x 230mm red LED and 3 x 200mm fans
• 9 slots support triple VGA cards
• Adjustable VGA card holder to support heavier GPU cards
• Power supply partition to conceal cables
• Advanced cable management with rubber grommets
• Spacious interior for larger components parts
• Rugged black coated interior

Specifications

Electrical
Power Supply	Bottom - Mounted/ATX PS2
Cooling System	Front: 230x30 mm red LED � Top: 200x30 mm fan x 2 � Side: 200x30 mm fan � Rear: 140x25 mm fan � VGA duct: 120x25 or 120x38 mm fan � VGA holder: 802x15 mm fan
Expansion
Expansion Slots	9
General
Product Family	HAF X
Product Type	Barebone Computer
Barcode	4719512028674
Interfaces/Ports
USB Ports	2 x USB 3.0 � 2 x USB 2.0
IEEE 1394 (Firewire) Port	1 x FireWire
eSATA	1 x eSATA
Audio Line In Ports	1 x 3.5mm Mini-Jack
Microphone In Port	1 x 3.5mm Mono Mini-Jack
Physical
Motherboard Compatibility	ATX � Micro ATX � Extended ATX
Dimensions	23.0cm (W) x 59.0cm (D) x 55.0cm (H) - Weight 16.08kg
Storage
Number of Bays for Hot Pluggable Hard Drives	SATA HDD drive bay 2 x 2.5 inch drive bay (converted from 5.25 inch drive bay)
External Expansion Bays	6 x 5.25 inch
Internal Expansion Bays	5 x 3.5 inch
