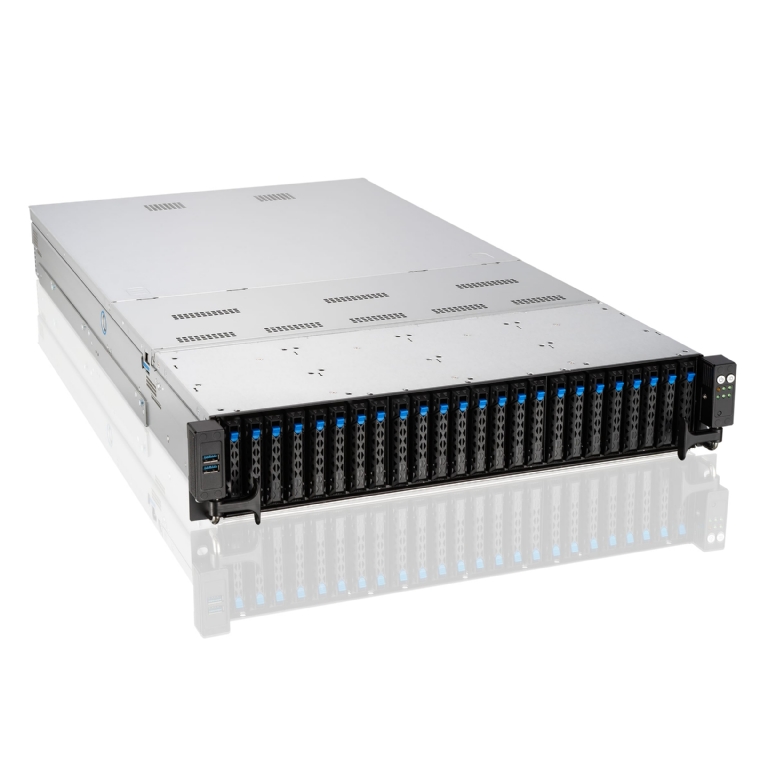

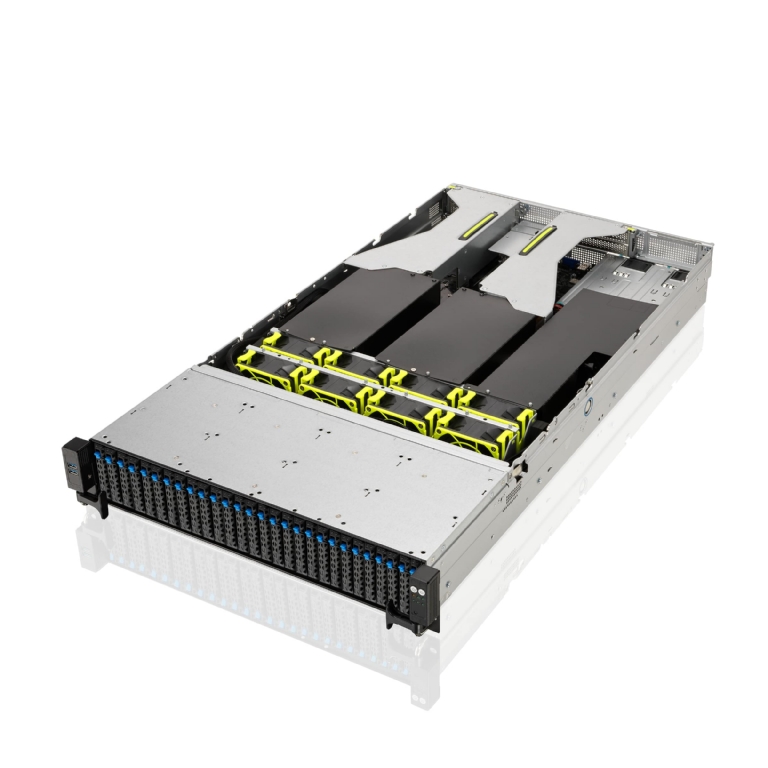

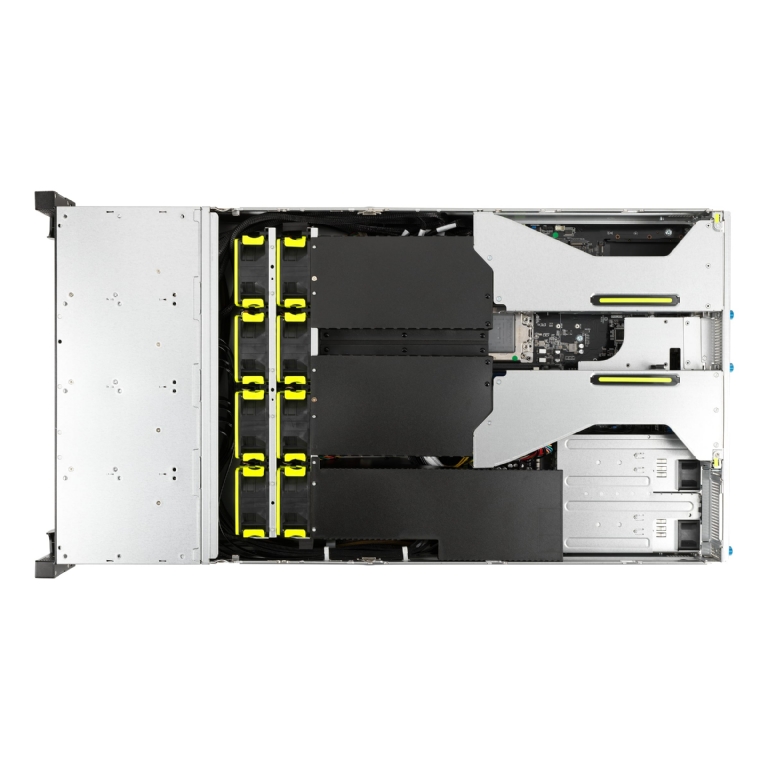

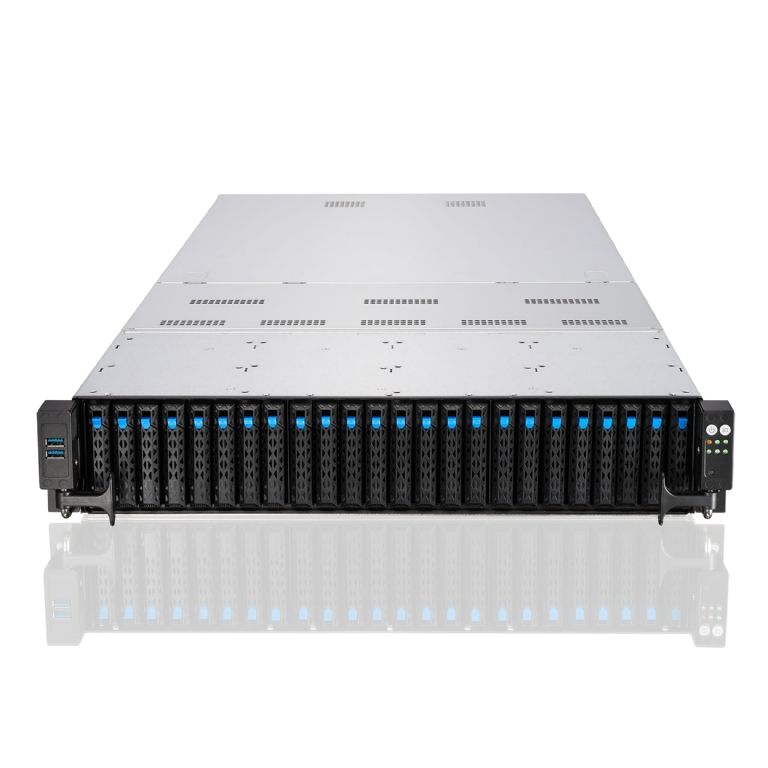

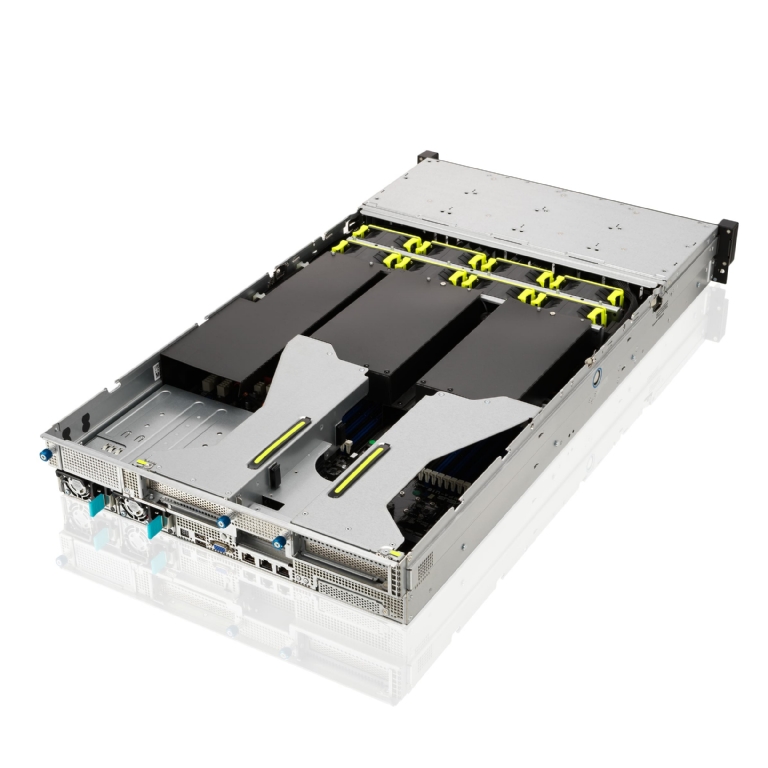

ASUS RS520A-E11-RS24U 2U Rackmount Single 7003 Series AMD EPYC Server - 24x Hot-Swap Bays (16x NVMe Cabled) - Redundant PSU

• • Processor / System Bus

    1 x Socket SP3 (LGA 4094)
    3rd Gen AMD EPYC™ processors with AMD 3D V-Cache™ technology
    AMD EPYC™ 7003 Series
    AMD EPYC™ 7002 Series

  • Generation

    E11

  • Memory

    Total Slots :
    16 (8-channel)
    Capacity :
    Maximum up to 4096GB RDIMM
    Memory Type :
    DDR4 3200/2933 RDIMM
    DDR4 3200/2933 LRDIMM
    DDR4 3200/2933 LR-DIMM 3DS
    Memory Size :
    128GB, 64GB, 32GB, 16GB RDIMM
    128GB, 64GB LRDIMM
    256GB, 128GB, 64GB LR-DIMM 3DS

    * Refer to support page for more information

  • Expansion Slots

    2 x PCIe x16 slot(Gen4 x16 link, FHFL) or dual-slot GPU cards or 4 x PCIe x16 slot(Gen4 x8 link, FHFL)
    1 x PCIe x16 slot(Gen4 x8 link, LP)
    1 x OCP 3.0 Mezzanine slot

  • Storage

    Storage Controller :
    CPU Integrated
    SAS Controller :
    Broadcom MegaRAID 9560-16i(Optional)
    ASUS PIKE II 3008-8i 8-port SAS 12G RAID card(Optional)
    ASUS PIKE II 3108-8i 8-port SAS 12G HW RAID card(Optional)

  • Drive Bays

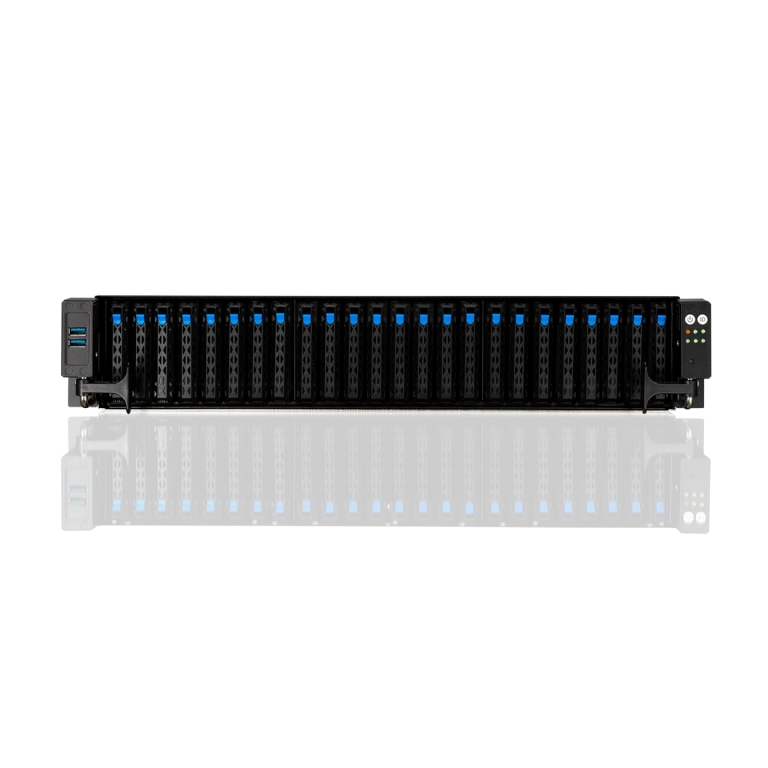

    24 x 2.5” hot-swap drive bays( 16x U.2/U.3 NVMe + 8x SATA/SAS)

    2 x M.2 connector (NGFF 22110/2280/2260/2242. SATA 6Gb/s*2 or PCIe Gen4 x4 link*1 or PCIe Gen4 x2 link*2)



    *SAS support only from SAS HBA/RAID Card

    *If supporting 24x NVMe, only 1x PCIe Gen4 x8 could use.

  • System Fan

    4 (if choose redundant fan, total:8)

  • Networking

    1 x Dual Port Intel I350-AM2 Gigabit LAN controller + 1 x Mgmt LAN

  • Graphic

    Aspeed AST2600 with 64MB VRAM

  • Front I/O Ports

    2 x USB 3.2 Gen1 ports

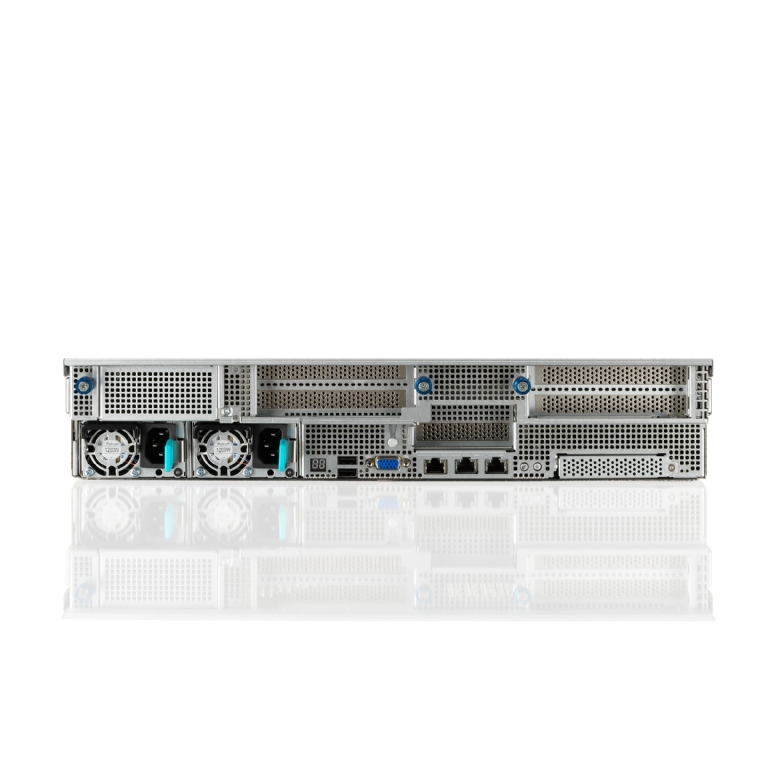

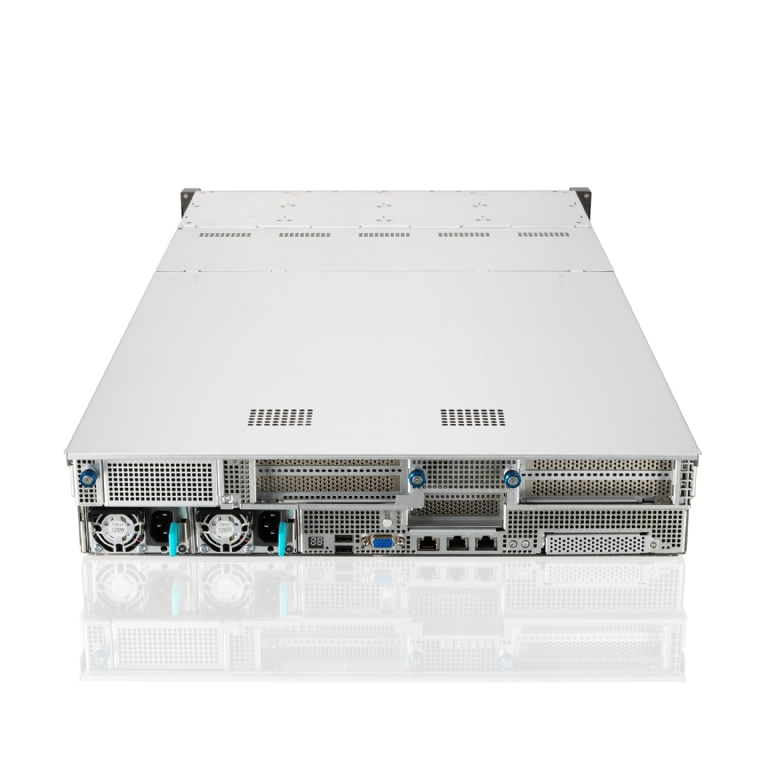

  • Rear I/O Ports

    2 x USB 3.2 Gen1 port
    1 x VGA port
    1 x Management port (RJ45)
    2 x Gigabit LAN ports (RJ45)

  • Switch/LED

    Front Switch/LED:
    1 x Power switch (w/LED)
    1 x Reset Switch
    1 x Location Switch (w/LED)
    1 x HDD Access LED
    1 x Message LED
    LAN 1-2 LED

    Rear Switch/LED:
    1 x Power switch w/LED
    1 x Port 80 LED(Q-Code)
    1 x Location Switch w/LED
    1 x Message LED

  • OS Support

    Please find the latest OS support from https://servers.asus.com/support/os

  • Management Solution

    ASUS Control Center Enterprise (Optional)
    On-Board ASMB10-iKVM for KVM-over-IP

  • Regulatory Compliance

    BSMI, CE, RCM, FCC(Class A)

  • Dimensions

    840mm x 449mm x 88.1mm (33.07" x 17.68" x 3.47")

  • Form Factor

    2U

  • Weight

    Net Weight : 19.15KG Gross Weight : 28.74KG

  • Power Supply

    1+1 Redundant 800W 80 PLUS Platinum Power Supply Rating: 100-127 / 200-240Vac, 10A / 5A (for each inlet), 50-60Hz, Class I
    1+1 Redundant 1600W 80 PLUS Titanium Power Supply
    1+1 Redundant 1200W/1600W 80 PLUS Platinum Power Supply
    Rating: 100-127 / 200-240Vac, 10A / 8A (for each inlet), 50-60Hz or 240Vdc, 6A
    240Vdc Only for China

  • Environment

    Operation temperature: 10℃ ~ 35℃
    Non operation temperature: -40℃ ~ 60℃
    Non operation humidity: 20% ~ 90% (Non condensing)

  • CPU Heatsink/ Cooler

    1
