MSI S1102-02 1U Rackmount Single AMD Ryzen 7000 and EPYC 4004 Server - Water Cooled - 4x Hot-Swap Bays - 2x Gigabit LAN - Redundant PSU

S1102-02

Call our Solutions Specialists - 01283 576162

Great news, we have this product available for special order on a 5 day lead time.

To learn more about this product complete the form below and one of our team will get right back to you.

Looking for Compatible Products?

More from this brand

Product Description

Form Factor	1U
Dimensions	438.5mm(17.26") Wx 43.5mm(1.71")H x 660mm(26")D
Processor	Single AMD Ryzen™ 7000 Series and EPYC™ 4004 Series Processor, up to TDP 170W
Chipset	AMD B650
Memory	(4) DDR5 DIMM slots, 2DPC, ECC/non-ECC UDIMM - Max. Frequency 5200MT/s(1DPC) and 3600MT/s(2DPC) - Max. Capacity per DIMM: 48GB
Storage	(2) M.2 2280/22110 PCIe4.0 x4 ports (2) Internal 2.5" drive bays support SATA 2.0
Drive Bays	(4) Hot-swap 3.5”/2.5" drive bays support SATA 3.0
Networking	(2) 10GBase-T Ethernet Ports (Intel® X710AT2) *JLAN1,2 supports NCSI
Expansion Slot	(1) PCIe 4.0 x16 slot from CPU support FHHL PCIe card

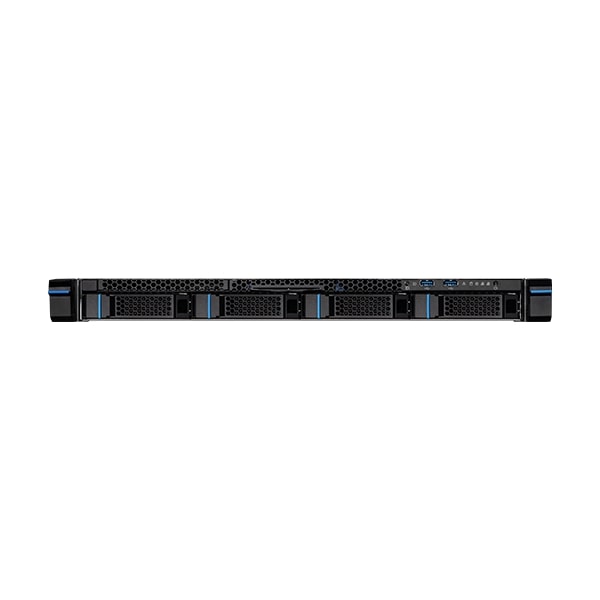

Front I/O	(4) Hot-swap 3.5” drive bays (2) USB3.2 Gen1 Type-A Ports (1) System Power Button (1) UID Button (1) UID LED (5) Status LEDs: Power/Fault/HDD/(2)LAN

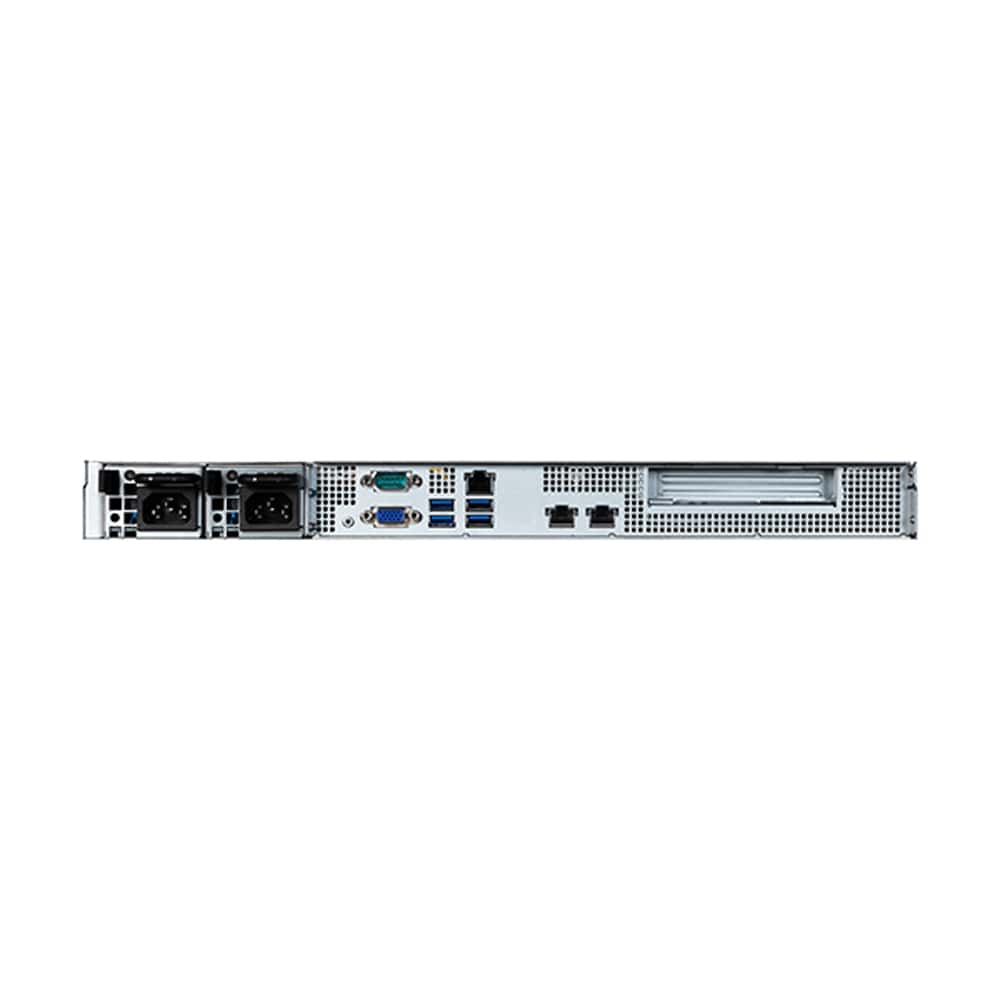

Rear I/O	(2) 10GBase-T Ethernet Ports (1) 1000Base-T Dedicated Server Management Port (4) USB3.2 Gen1 Type-A Ports (1) VGA D-Sub Port (1) COM DB9 Port (1) UID LED Button
Server Management	(1) 1000Base-T Dedicated Server Management Port (Realtek RTL8211FD-CG) ASPEED AST2600 with AMI MegaRAC based firmware supporting IPMI 2.0 and DMTF Redfish API
Cooling	(1) Closed loop liquid cooling module for max. 170W CPU (7) 4028 system FANs
Power Supply	(1+1) 450W Redundant PSU 80+ Platinum
Environment	System Operating Temperature : 0°C ~ 35°C Non-operating Temperature : -20°C ~ 70°C Non-operating Relative Humidity : 5% ~ 85% (non-condensing)
Certification	CE, FCC (Class A)
Security	TPM 2.0
Socket	(1) AMD Socket AM5
RAID	N/A
Package Contents	(1) 1U Barebone S1102-02 (1) Quick guide (1) Slide rail Kit (1) Closed loop liquid cooling module(assembled inside chassis) (4) Power cables
Parts List	(1) Quick guide: G52-S3362X2-Q13 (1) Slide rail Kit: E21-S336020-C27 (1) Closed loop liquid cooling module: E34-F000091-AQ0 (4) Power cables: (2)K33-3001002-I45 for NA, (2)K33-3001005-I45 for EU
Optional parts	TPM2.0 module: TPM20-IR
TPM	(1) TPM header with SPI interface
