| SYS-1029GQ-TRT |

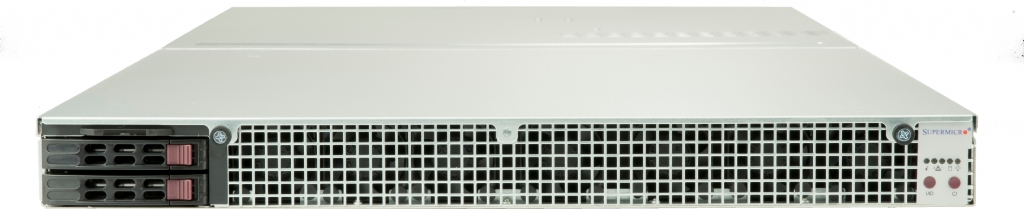

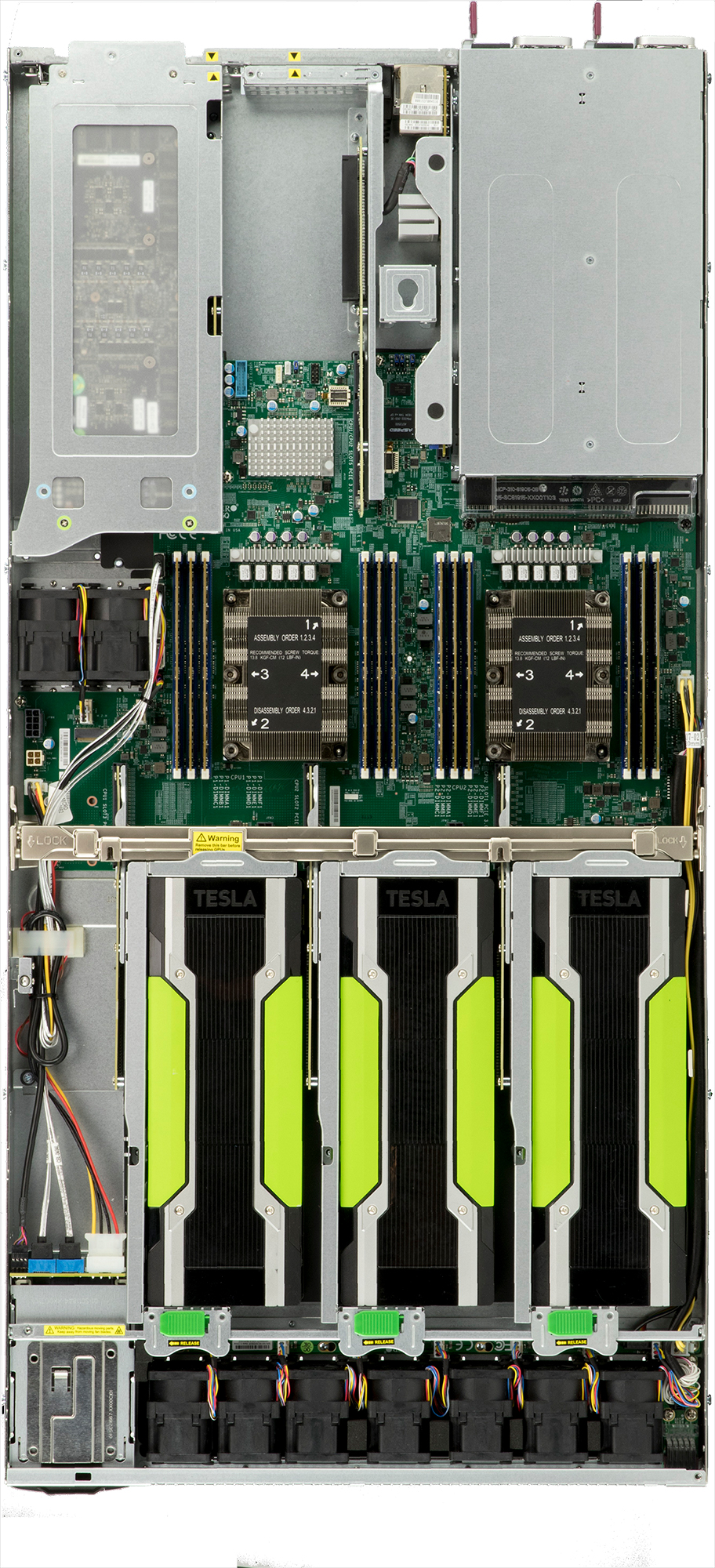

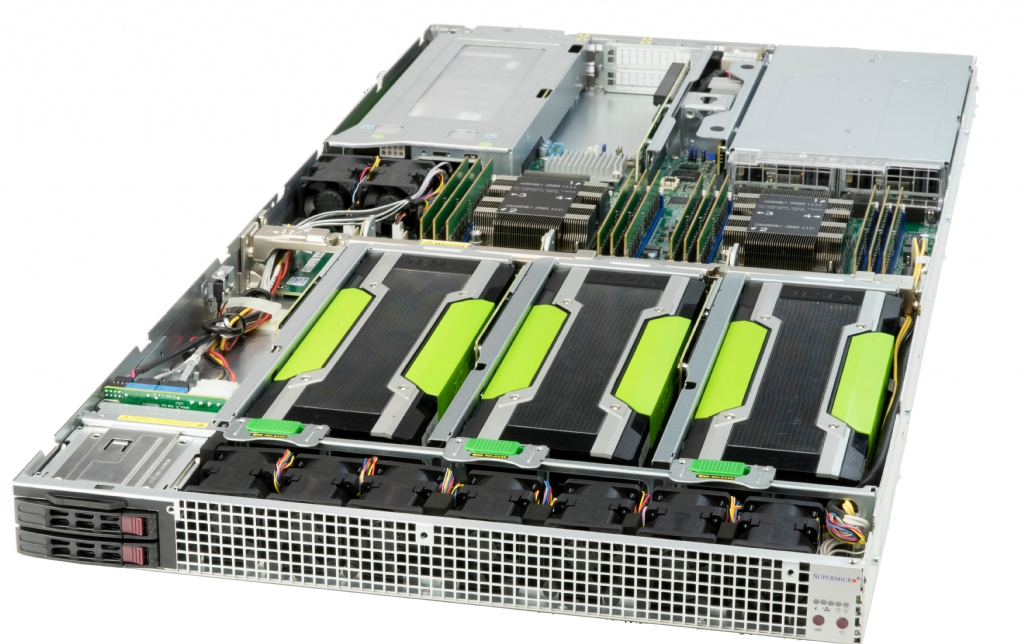

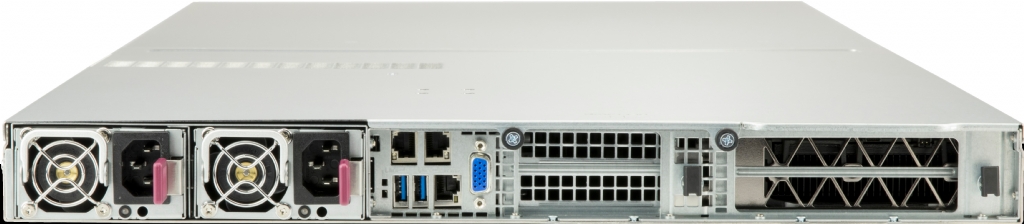

- SuperServer 1029GQ-TRT (Black)
|
| |
|
| CPU |
- Dual Socket P (LGA 3647)
- Intel® Xeon® Scalable Processors,
3 UPI up to 10.4GT/s
- Support CPU TDP up to 165W
|
| Cores |
- Up to 28 Cores with Intel® HT Technology
|
| |
|
| Memory Capacity |
- 12 DIMM slots
- Up to 1.5TB ECC 3DS LRDIMM, 1.5TB ECC RDIMM, DDR4 up to 2666MHz
|
| Memory Type |
- 2666/2400/2133MHz ECC DDR4 SDRAM
|
| |
|
| Chipset |
|
| SATA |
- SATA3 (6Gbps) with RAID 0, 1, 5, 10
|
| Network Connectivity |
- Intel® X540 Dual Port 10GBase-T
- Virtual Machine Device Queues reduce I/O overhead
- Supports 10GBASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
|
| IPMI |
- Support for Intelligent Platform Management Interface v.2.0
- IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
|
| Graphics |
|
| |
|
| SATA |
|
| LAN |
- 2 RJ45 10GBase-T ports
- 1 RJ45 Dedicated IPMI LAN port
|
| USB |
|
| Video |
|
| Serial Header |
|
| |
|
| BIOS Type |
|
| |
|
| Software |
|
| Power Configurations |
- ACPI / APM Power Management
|
| |
|
| CPU |
- Monitors for CPU Cores, Chipset Voltages, Memory.
- 4+1 Phase-switching voltage regulator
|
| FAN |
- Fans with tachometer monitoring
- Status monitor for speed control
- Pulse Width Modulated (PWM) fan connectors
|
| Temperature |
- Monitoring for CPU and chassis environment
- Thermal Control for fan connectors
|
|
 |
|
|
| Form Factor |
|
| Model |
|
| |
|
| Height |
|
| Width |
|
| Depth |
- 35.2" (894mm)
- 39.3" (997mm) with rails
|
| Package |
- 24" (H) x 8" (W) x 46" (D)
|
| Weight |
- Net Weight: 45 lbs (20.4 kg)
- Gross Weight: 58 lbs (26.31 kg)
|
| Available Color |
|
| |
|
| Buttons |
- Power On/Off button
- System Reset button
|
| LEDs |
- Power LED
- Hard drive activity LED
- Network activity LEDs
- System Overheat LED / Fan fail LED /
UID LED
|
| |
|
| PCI-Express |
- 4 PCI-E 3.0 x16 (FHFL) slots
- 2 PCI-E 3.0 x16 (LP) slots
|
| |
|
| Hot-swap |
- 2 Hot-swap 2.5" SAS/SATA drive bays
|
| Fixed |
- 2 Internal 2.5" drive bays
|
| M.2 |
- Support 1x M.2 2242/2260/2280
- Support M.2 SATA and NVMe
|
|
| |
|
| Fans |
- 9 Heavy duty 4cm counter-rotating fans with air shroud & optimal fan speed control
|
| |
| 2000W Redundant Power Supplies with PMBus |
| Total Output Power |
|
Dimension
(W x H x L) |
|
| Input |
- 100-120Vac / 12.5-9.5A / 50-60Hz
- 200-220Vac / 10-9.5A / 50-60Hz
- 220-230Vac / 10-9.8A / 50-60Hz
- 230-240Vac / 10-9.8A / 50-60Hz
- 200-240Vac / 11.8-9.8A / 50-60Hz (UL/cUL only)
|
| +12V |
- Max: 83.3A / Min: 0A (100-120Vac)
- Max: 150A / Min: 0A (200-220Vac)
- Max: 165A / Min: 0A (220-230Vac)
- Max: 166.7A / Min: 0A (230-240Vac)
- Max: 166.7A / Min: 0A (200-240Vac) (UL/cUL only)
|
| 12Vsb |
|
| Output Type |
- 25 Pairs Gold Finger Connector
|
| Certification |
  UL/cUL/CB/BSMI/CE/CCC
Titanium Level
[ Test Report ] |
| |
|
| RoHS |
|
| Environmental Spec. |
- Operating Temperature:
10°C ~ 35°C (50°F ~ 95°F)
- Non-operating Temperature:
-40°C to 60°C (-40°F to 140°F)
- Operating Relative Humidity:
8% to 90% (non-condensing)
- Non-operating Relative Humidity:
5% to 95% (non-condensing)
|
|
|
|
|
 |
|
See Parts List
|
|
|
|
|
Part Number
|
Qty
|
Description
|
| Motherboard / Chassis |
MBD-X11DGQ
CSE-118GQETS-R2K05P2 |
1
1 |
Super X11DGQ Motherboard
CSE-118GQETS-R2K05P2 Chassis |
| Add-on Card / Module |
AOM-PIO-I2XT-P |
1 |
AOM-PIO-I2XT |
| Backplane |
BPN-SAS3-118GQE |
1 |
2-port 1U SAS3 12Gbps backplane, support up to 2x 2.5-inch SAS3/SATA3 HDD/SSD |
| Cable 1 |
CBL-0484L |
4 |
SATA,INT,ROUND,ST-ST,55CM,30AWG |
| Cable 2 |
CBL-PWEX-1026 |
3 |
GPU,2x4F/RA/CPU to 2x4F/CPU,P4.2, 35CM, 17AWG, 8A/pin, -25~85C, RoHS |
| Cable 3 |
CBL-PWEX-1027 |
1 |
GPU,2x4F/RA/CPU to 2x4F/CPU,P4.2, 14CM, 17AWG, 8A/pin, -25~85C, RoHS |
| Riser Card |
RSC-G-A6 |
1 |
U RHS Active Rear Riser card with 1 PCI-E x16,HF,RoHS |
| Riser Card |
RSC-G-A66 |
1 |
1U LHS Active GPU Riser card with two PCI-E x16 Slots,HF,RoH |
| Riser Card |
RSC-GR-6-X |
3 |
1U LHS GPU riser card with one PCI-E x16 slot,HF,RoHS |
| Heatsink / Retention |
SNK-P0067PS |
2 |
1U Passive CPU Heat Sink for X11 Purley Platform Equipped with a Narrow Retention Mechanism |
| Power Supply |
PWS-2K05A-1R |
2 |
1U 2000W Redundant Titanium Power Supply W/PMbus 73.5x40x265mm,RoHS/REACH |
| Fans |
FAN-0163L4 |
8 |
40x40x56 mm 23.3K-20.3K RPM Counter-rotating Fan |
| Rail Set |
MCP-290-11809-0N |
1 |
Rail set, Quick/Quick, Auto Latch, travel 535mm Short Version, Post to Post 685mm |
|
|
|
|
|
| |
Part Number |
Qty |
Description |
| Intel/AMD/Quadro/M10 GPU Cables |
CBL-PWEX-1059
CBL-PWEX-1060 |
3
1 |
GPU,2x4F/RA/CPU to two (2x3F+2x1F)/PCIe, P4.2, 36CM, 17/20AWG, 8A/pin(17AWG), 6A/pin(20AWG)
GPU, 2x4F/RA/CPU to two (2x3F+2x1F)/PCIe, P4.2, 16CM, 17/20AWG, 8A/pin(17AWG), 6A/pin(20AWG) |
| Other GPUs Cables |
CBL-PWEX-1061
CBL-PWEX-1062 |
3
1 |
GPU, 2x4F/RA/CPU to two (2x3F+2x1F)/PCIe, P4.2, 34CM, 17/20AWG
GPU, 2x4F/RA/CPU to two (2x3F+2x1F)/PCIe, P4.2, 25CM, 17/20AWG |
| AOC-S3008L-L8i (SAS3) |
CBL-SAST-0699 |
1 |
Mini SAS HD to 4 SATA 12G |
| AOC-S3108L-H8IR-16DD (SAS3) |
CBL-SAST-0699 |
1 |
Mini SAS HD to 4 SATA 12G |
| AOC-S3108L-H8IR (SAS3) |
CBL-SAST-0699 |
1 |
Mini SAS HD to 4 SATA 12G |
| Super Cap for LSI 3108 |
BKT-BBU-BRACKET-05
BTR-TFM8G-LSICVM02 |
1
1 |
Mounting Bracket for LSI BBUs
LSI Super Cap |
| TPM |
AOM-TPM-9670H |
- |
SPI capable horizontal TPM 2.0 provisioned for client,RoHS |
| Intel VROC RAID Key |
AOC-VROCINTMOD
AOC-VROCSTNMOD
AOC-VROCPREMOD |
1
1
1 |
Intel VROC, RAID 0, 1, 5, 10 (Intel SSD Only)
Intel VROC Standard, RAID 0, 1, 10
Intel VROC Premium, RAID 0, 1, 5, 10 |
| Global Services & Support |
OS4HR3/2/1
OSNBD3/2/1 |
-
- |
3/2/1-year onsite 24x7x4 service
3/2/1-year onsite NBD service |
| Software |
SFT-OOB-LIC |
1 |
OOB Management Package (per node license) |
| Software |
SFT-DCMS-Single |
1 |
DataCenter Management Package (per node license) |
| Note: For Coprocessors, GPUs, VCA, FPGA cards not listed in table above please contact sales to discuss compatibility. |
|
|
|
