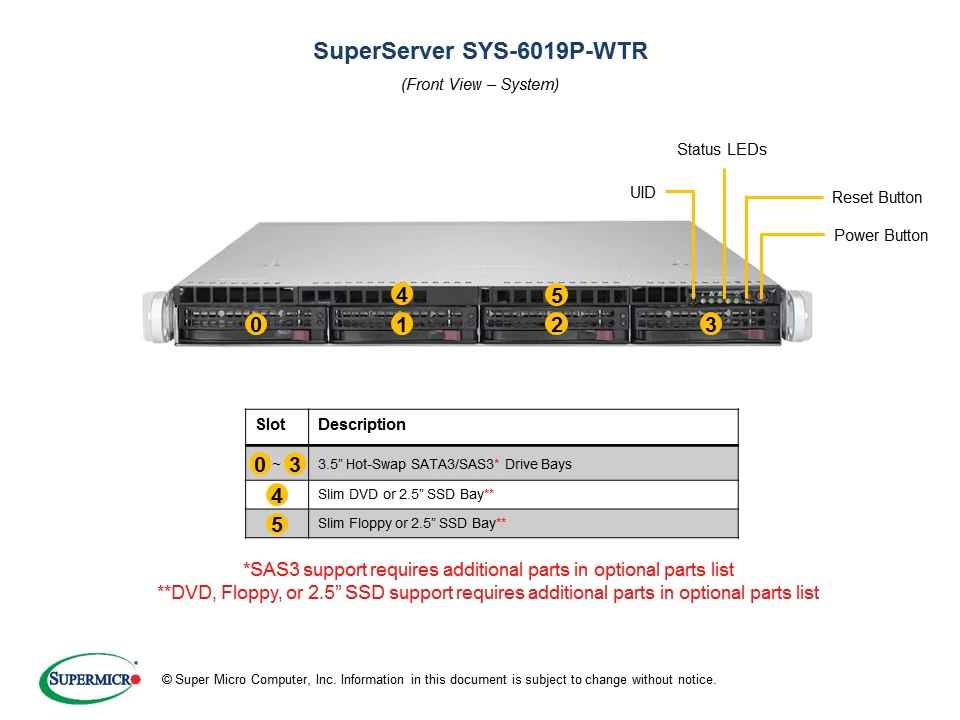

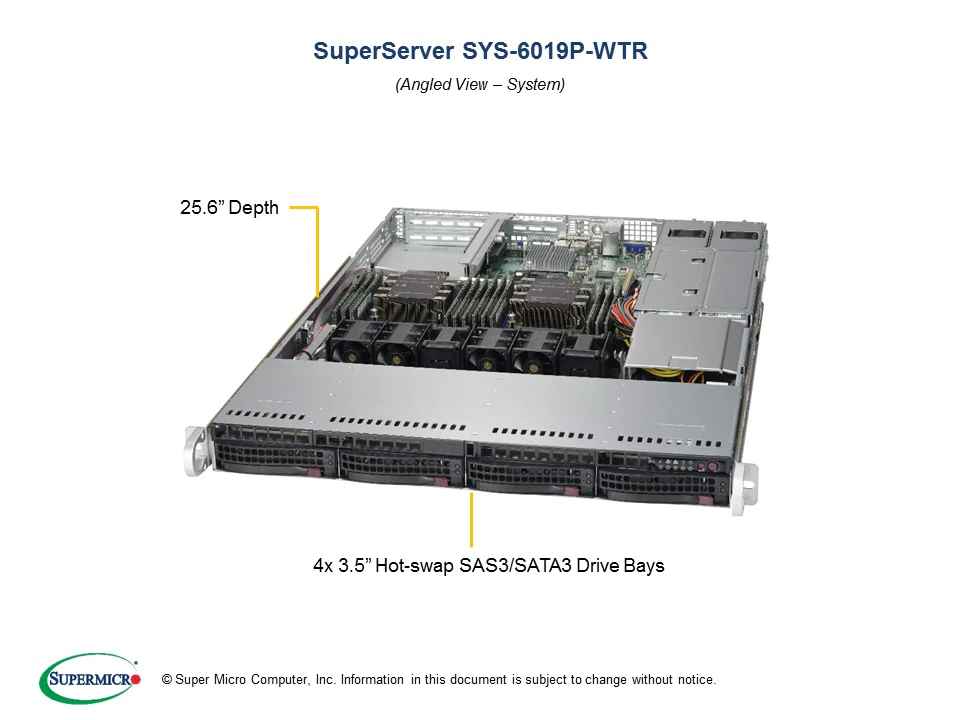

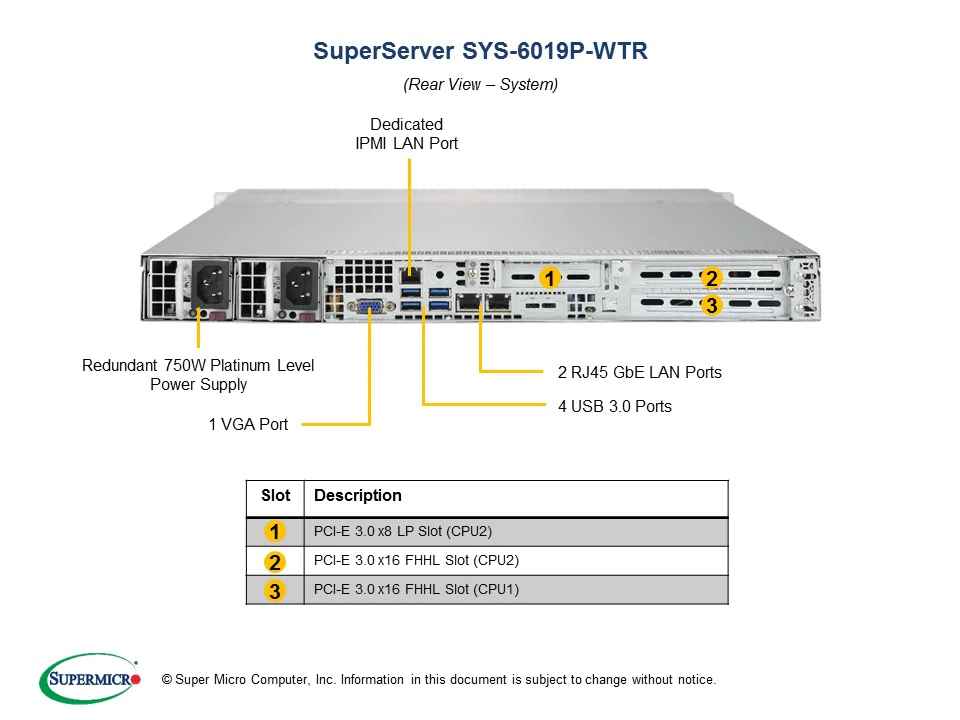

See Parts List
|
|
|
 |
|
Part Number
|
Qty
|
Description
|
| Motherboard / Chassis |
MBD-X11DDW-L
CSE-815TQC-R706WB2 |
1
1 |
Super X11DDW-L Motherboard
1U Chassis |
| Backplane |
BPN-SAS3-815TQ |
1 |
1U 4-Port 12Gbps Backplane Support 4x3.5 |
| Cable 1 |
CBL-SAST-0388L-02 |
1 |
MINI SAS-4 SATA,INT,75/75/90/90CM,90CM SB,30AWG |
| Parts |
MCP-150-00015-0B |
2 |
Rubber pad, 3.0mm H, 10x10mm |
| Air Shroud |
MCP-310-19019-0B |
2 |
SC113/SC116/SC815/SC515, DP X11DDW Mylar air shroud |
| Fan Holder |
MCP-320-00061-0B |
1 |
CR foam for air block in SC113/SC116/SC815 |
| Manual |
MNL-1943-QRG |
1 |
SYS-6019P-WT /WTR Quick Reference Guide,HF,RoHS |
| Riser Card |
RSC-R1UW-2E16 |
1 |
1U LHS WIO Riser card with two PCI-E x16 slots |
| Riser Card |
RSC-R1UW-E8R |
1 |
1U RHS WIO Riser card with one PCI-E x8 slot |
| Heatsink / Retention |
SNK-P0067PSMB |
2 |
1U Passive High Performance Front CPU Heat Sink w/ an 18-mm Wide Middle Air Channel for X11 Purley Platform Equipped w/ a Narrow Retention Mechanism/Bolster |
| Power Supply |
PWS-706P-1R |
2 |
1U 750W redundant power width 54.5mm(Platinum),HF,RoHS/REACH,PBF |
|
|
|
|
|
| |
Part Number |
Qty |
Description |
| 2.5" to 3.5" Converter Tray |
MCP-220-00043-0N |
- |
Black Hot-swap Gen-4 2.5" to 3.5" HDD tray |
| DVD-ROM / DVD-RW |
DVM-TEAC-DVD-SBT4
DVM-TEAC-DVDRW-SBT4
DVM-PLDS-DVDRW-SBT5 |
1
1
1
|
TEAC SLIM DVD ROM SATA DRIVE, HF, RoHS/REACH
TEAC SLIM DVD-RW SATA DRIVE, RoHS
PHILIPS SLIM BLACK DVD-RW SATA DRIVE, HF, RoHS/REACH
|
| DVD-ROM Accessory |
MCP-220-81502-0N |
1 |
Slim SATA DVD mounting kit |
Internal 2.5" HDD Tray
(FDD Slot) |
MCP-220-83601-0B |
1 |
Black FDD dummy tray support 1x 2.5" slim HDD |
Internal 2.5" HDD Tray
(DVD Slot) |
MCP-290-00036-0B |
1 |
Black DVD dummy tray support 1x 2.5" slim HDD |
USB/COM Port Tray
(DVD Slot) |
MCP-220-00114-0N |
1 |
Black 2x USB 3.0/COM port tray in slim DVD bay |
| Cable for internal HDD |
CBL-0489L
CBL-0082L |
2
1 |
SATA, INT, ROUND, ST-RA, 70CM, 30AWG
Y split , big 4 pin to two RA SATA power extension 15cm, 18AWG |
| CachVault(s) |
BTR-CV3108-1U1
BTR-TFM8G-LSICVM02 & BKT-BBU-BRACKET-05
BTR-TFM8G-LSICVM02 & MCP-240-00127-0N |
1
-
- |
CacheVault for Broadcom 3108 with SuperCap mounting in 1U 40x56 fan tray
CacheVault for Broadcom 3108; SuperCap mounting bracket for PCI-E location
CacheVault for Broadcom 3108; SuperCap mounting bracket for 2.5" HDD location |
SuperCap for
AOC-S2208L-H8IR |
BTR-0024LH-LSI00297 & BKT-BBU-BRACKET-05
BTR-0024LH-LSI00297 & MCP-240-00127-0N |
-
- |
SuperCap TFM to be used w/ Supermicro AOC-S2208L-H8IR; SuperCap mounting bracket for PCI-E location
SuperCap TFM to be used w/ Supermicro AOC-S2208L-H8IR; SuperCap mounting bracket for 2.5" HDD location |
| Cooling Fan (required if AOM is installed) |
FAN-0156L4 |
- |
40x40x56 mm 13K-11K RPM Counter-rotating Fan |
Storage Controller
Card(s) & Cables(s) |
AOM-S3108M-H8 &
1x CBL-SAST-0699
AOC-S3108L-H8IR-16DD
& 1x CBL-SAST-0699
AOC-S3008L-L8i &
1x CBL-SAST-0699
AOC-S3008L-L8e &
1x CBL-SAST-0699
AOC-S2308L-L8e &
1x CBL-SAST-0388L-02
AOC-S2308L-L8i &
1x CBL-SAST-0388L-02
AOC-S2208L-H8iR &
1x CBL-SAST-0388L-02 |
- |
Supermicro Low Profile 12Gb/s Eight-Port SAS
Internal Mezzanine RAID Adapter, RAID 0, 1, 5, 6, 10, 50, 60
Standard LP, 8 internal ports (12Gb/s) Gen-3, 16HDD;
RAID 0, 1, 5, 6, 10, 50, 60
Standard LP, 8 internal ports (12Gb/s) Gen-3, 63HDD;
RAID 0, 1, 10
Standard LP, 8 internal ports (12Gb/s) Gen-3, 122HDD;
HBA
Standard LP, 8 internal ports (6Gb/s) Gen-3, 122HDD;
HBA (Cable included in system)
Standard LP, 8 internal ports (6Gb/s) Gen-3, 63HDD;
RAID 0, 1, 10 (Cable included in system)
Standard LP, 8 internal ports (6Gb/s) Gen-3, 240HDD;
RAID 0, 1, 5, 6, 10, 50, 60 (Cable included in system) |
| Network Card(s) |
AOC-SGP-i2
AOC-SGP-i4
AOC-SG-i2
AOC-SG-i4
AOC-STG-b4S
AOC-STGN-i2S
AOC-STG-i2T
AOC-STG-i2 |
-
-
-
-
-
-
-
- |
Standard LP, 2x GbE RJ45, PCI-E x4, Intel® i350AM2
Standard LP, 4x GbE RJ45, PCI-E x4, Intel® i350
Standard LP, 2x GbE RJ45, PCI-E x4, Intel® 82575EB
Standard LP, 4x GbE RJ45, PCI-E x8, Intel® 82576EB
Standard LP, 4x 10GbE SFP+, PCI-E x8, Broadcom® BCM57840S
Standard LP, 2x 10GbE SFP+, PCI-E x8, Intel® 82599ES
Standard LP, 2x 10GbE RJ45, PCI-E x8, Intel® X540
Standard LP, 2x 10GbE CX4, PCI-E x8, Intel® 82598EB |
| Front Bezel |
CSE-PTFB-813-02
CSE-PTFB-813-02B |
1
1 |
Front Bezel w/ Round Venting Holes
Black Front Bezel w/ Round Venting Holes |
| TPM security module (optional, not included) |
AOM-TPM-9670V |
1 |
SPI capable TPM 2.0 with Infineon 9670 controller with vertical form factor |
| TPM security module (optional, not included) |
AOM-TPM-9671V |
1 |
SPI capable TPM 1.2 with Infineon 9670 controller with vertical form factor |
| Global Services & Support |
OS4HR3/2/1
OSNBD3/2/1 |
-
- |
3/2/1-year onsite 24x7x4 service
3/2/1-year onsite NBD service |
| Software |
SFT-OOB-LIC |
1 |
OOB Management Package (per node license) |
| Software |
SFT-DCMS-Single |
1 |
DataCenter Management Package (per node license) |
|
|
|
