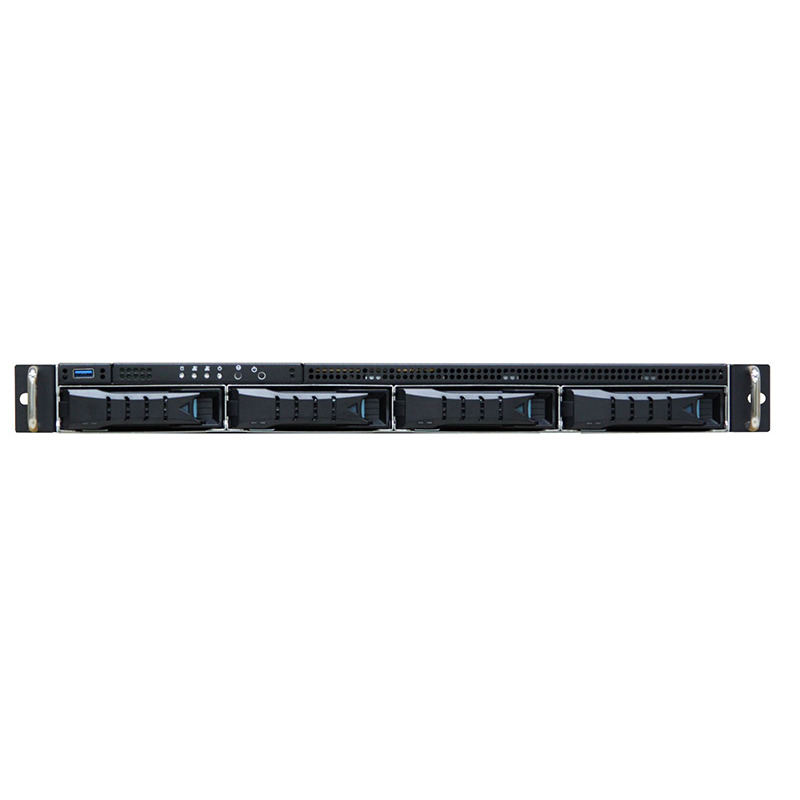

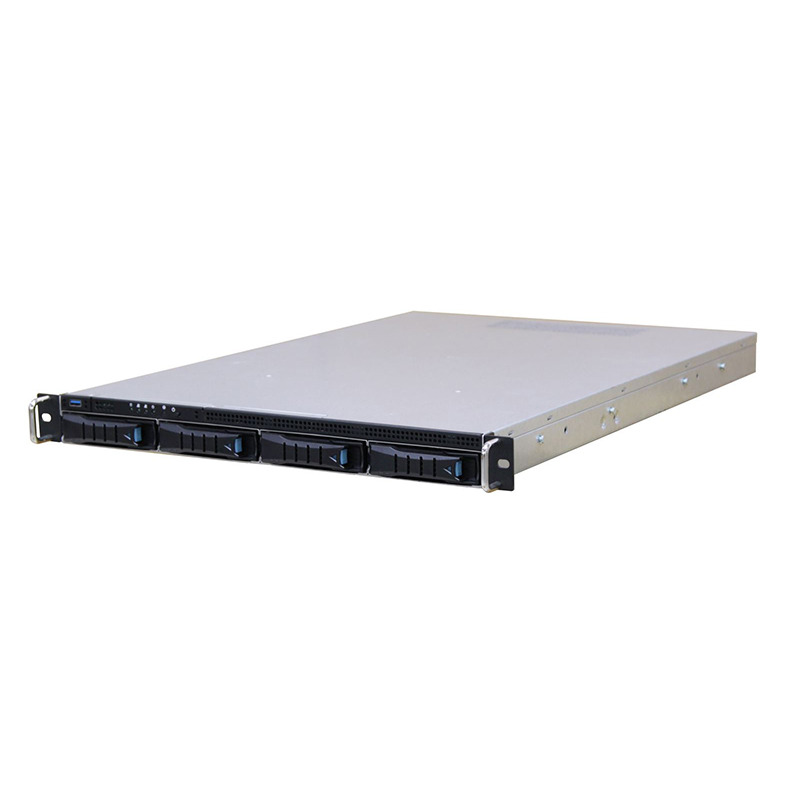

AIC 1U 12G storage server chassis supports external 4 x 12G 3.5" hot swap and internal 4 x 2.5" drive bays, with 450W 1+1 redundant PSU & Rails
RSC-1DT-BAR45-12GCall/Email/Live Chat our sales team for availability, we look forward to hearing from you.
Key Features
• Tool-less design supports quick installation and easy maintenance:
- Tool-less 2.5" drive trays
- Tool-less slide rail
• Supports 4 x 12G 3.5" hot swap drive bays
• Supports 450W redundant power supplies. (optional: single 500W)
• Support 1 full height expansion slot
• One front access USB 3.0 port
RSC-1DT is a T-series 1U SAS/SATA storage server chassis supports external 4 x 12G 3.5" hot swap and internal 4 x 2.5" drive bays. This environmentally friendly solution features high-efficiency power supply, SGCC pre-plated steel, tool-less ball-bearing mounting rail, and easy-swap PWM fans, offering a cost-effective solution ideally suited for a broad range of applications. (Power supply is included. Motherboard is not included.)
| Dimensions (W x D x H) |
| • mm: 483 x 680 x 43.5 • inches: 17 x 26.6 x 1.72 |
| Industry Standard |
| EIA-RS310D |
| Material |
| SGCC |
| Color |
| Front Panel: Black |
| Cooling |
| Middle: 4 x 40x56mm + 1 x 40x28mm PWM fans (Option: 5 x 40x56mm PWM fans) |
| Power Supply |
| Standard: 450W 1+1 redundant Option: 500W single PSU |
| Expansion Slot |
| 1 full height |
| Front Panel |
| System power on/off and system reset, 1 x USB 3.0 port |
| LED Indicators |
| • Power • HDD • LAN |
| System Board |
| Up to 12"(W) x 13"(D) EATX MB |
| Drive Bays |
| • External: 3.5" hot swap x 4 • Internal: 2.5" x 4 |
| Backplanes |
| 4-port with SFF-8643 connector supports 12G |
| Storage Temperature |
| 0°C(32°F) ~ 50°C(122°F) |
| Humidity |
| 5% ~ 95% non-condensing |
| Gross Weight (w/ PSU & Rail) |
| • kgs: 20 • lbs: 44 |
| Package Dimension (W x D x H) |
| • mm: 588 x 1050 x 263 • inches: 23.1 x 41.3 x 10.4 |
| Cubic Feet |
| 5.7 |
| Container Load Quantity |
| • 20’: 165 • 40’: 340 • 40’H: 410 |
| Mounting |
| Standard: 28” tool-less slide rail |
