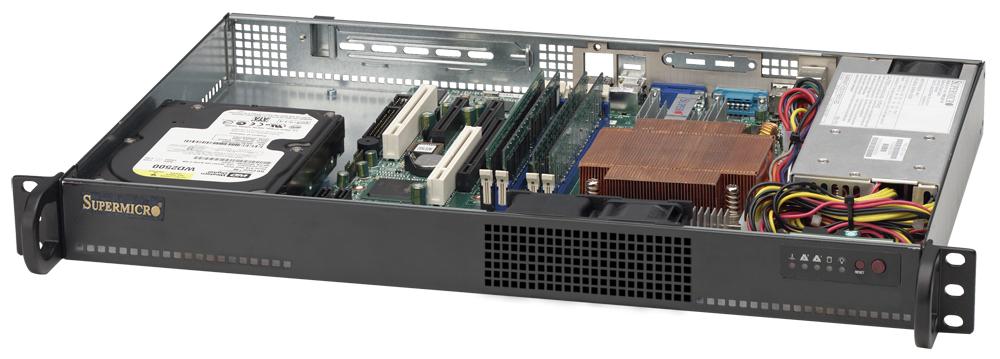

Supermicro SuperChassis 510-200B (Black)

CSE-510-200B

Sorry, but this product is no longer available to purchase online.

Please contact us to discuss alternative products which may be suitable.

Looking for Compatible Products?

More from this brand

Product Description


Product SKUs

CSE-510-200B	SuperChassis 510-200B (Black)



Form Factor

11.3"-Depth Mini 1U chassis support for maximum motherboard size - 9.6" x 9.6"


Processor Support

Single processor support: Intel® Core 2 Duo, Xeon 3000 Series (up to 65W), Intel® Celeron® 400 series, Intel® Atom™ 200/300 series


Dimensions

Height	1.7" (43mm)
Width	17.2" (437mm)
Depth	11.3" (287mm)
Gross Weight	11 lbs (5.0kg)
Available Colors	Black


Expansion Slots

• 1x full-height half-length PCI expansion slot (Optional) (Riser Card Required)


Drive Bays

Internal Bay	1x 3.5" Internal Drive Bay (Standard) OR 4x 2.5" Internal Drive Support (Optional) SAS or enterprise SATA HDD only recommended


Front Panel

Buttons	Power On/Off button System Reset button
LEDs	Power LED Hard drive activity LED 2x Network activity LEDs System Overheat LED


System Cooling

Fans	2x 8500 RPM Cooling Fan



Operating Environment (System)

Operating Temperature Range	5°C ~ 35°C (41°F ~ 95°F)
Non-Operating Temperature Range	-40°C ~ 60°C (-40°F ~ 140°F)
Operating Relative Humidity Range	8% ~ 90% (non-condensing)
Non-Operating Relative Humidity Range	5% - 95% (non-condensing)


Power Supply

200W Low Noise High-Efficiency AC-DC power supply w/ PFC
AC Voltage	100 - 240V, 50-60Hz, 4-2 Amp Max
+5V	8.0 Amp
+5V standby	2.0 Amp
+12V	16.0 Amp
-12V	0.5 Amp
+3.3V	8.0 Amp
Certification	Certified


Regulatory (Power Supply)

Power Supply Safety / EMC	USA - UL listed, FCC Canada - CUL listed CCC Certification EN 60950/IEC 60950-Compliant Europe/CE Mark Germany - TUV Certified
