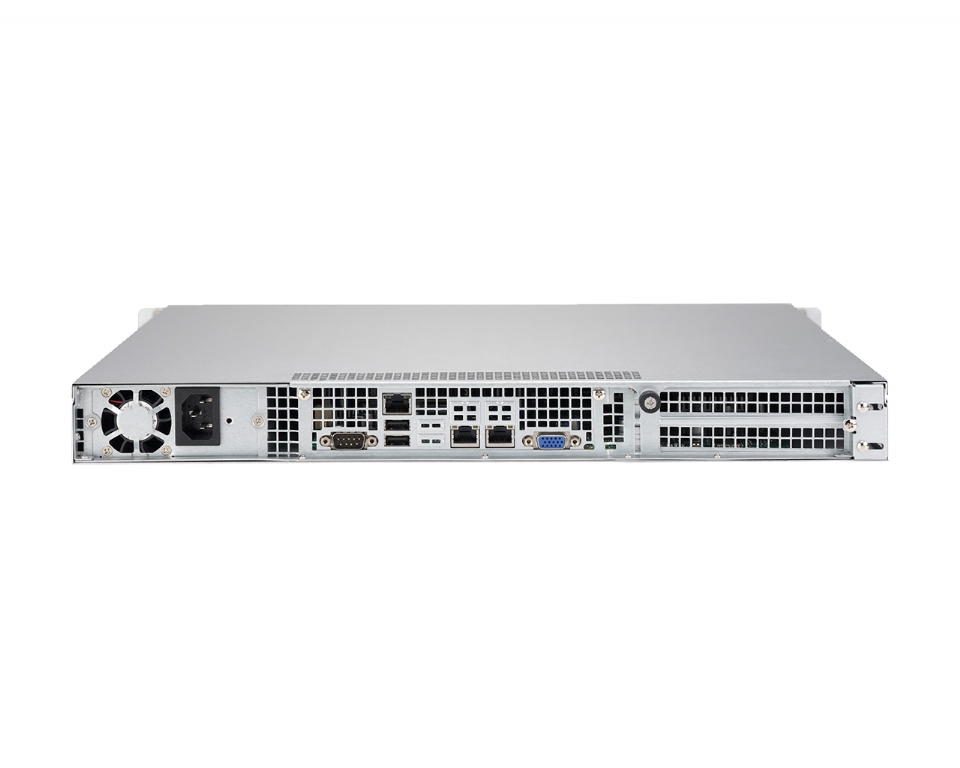

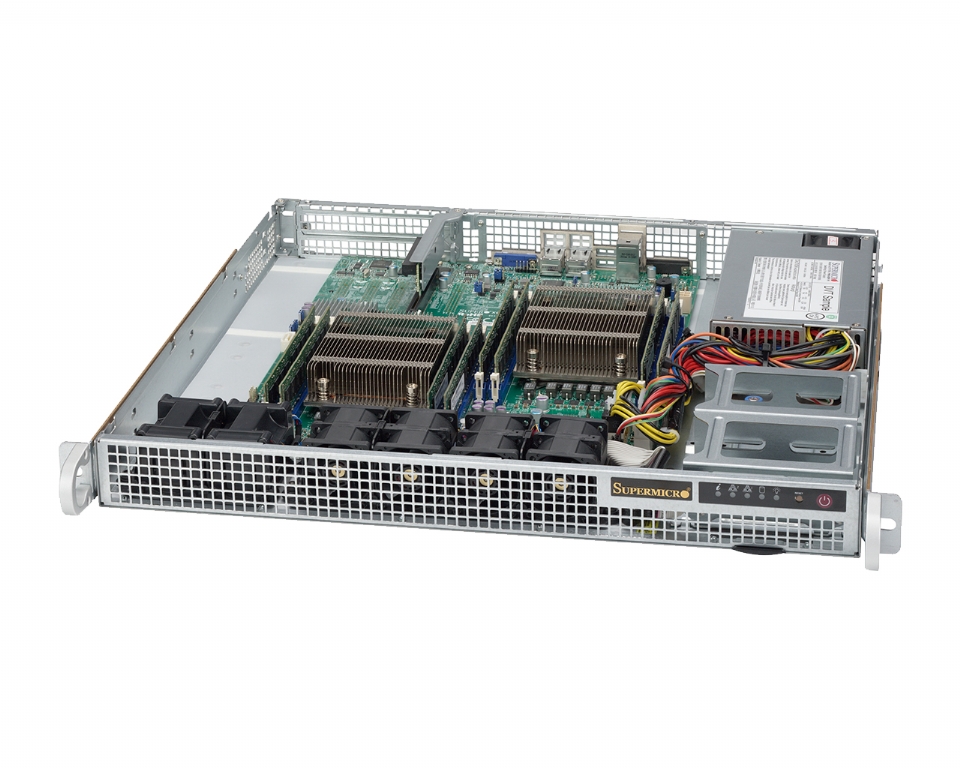

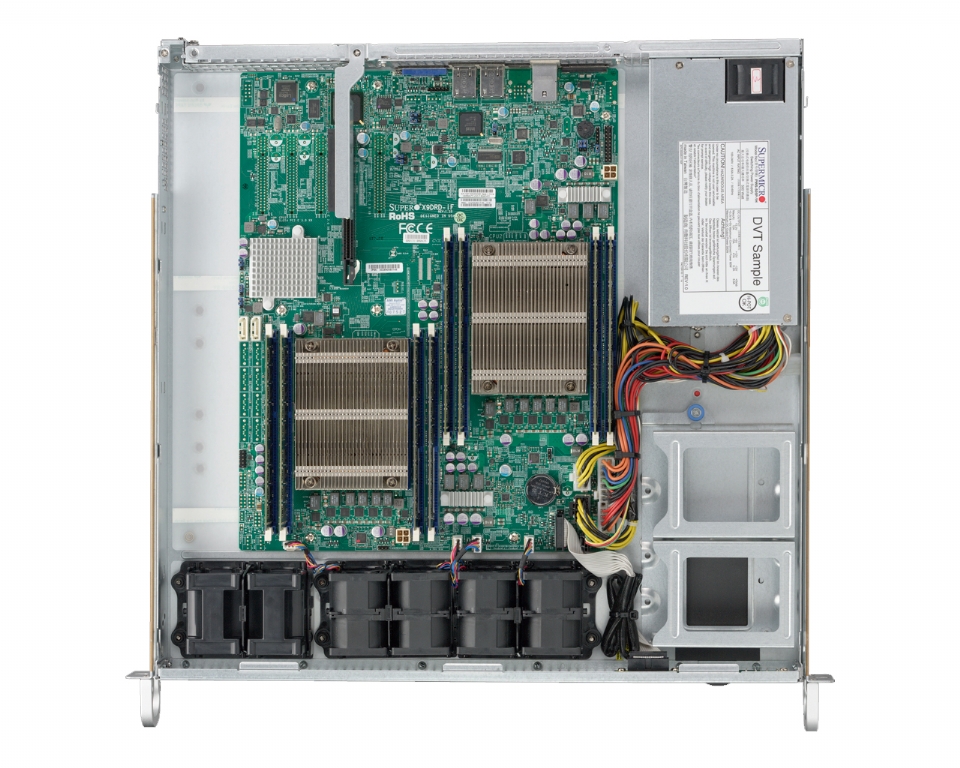

Supermicro SuperChassis 514-505

CSE-514-505

Sorry, but this product is no longer available to purchase online.

Please contact us to discuss alternative products which may be suitable.

Looking for Compatible Products?

More from this brand

Product Description

Product SKUs

CSE-514-505	SuperChassis 514-505


Form Factor

Support STD and WIO MB


Processor Support

Dual and Single Intel® and AMD processors


Dimensions

Height	1.7" (43 mm)
Width	17.2" (437 mm)
Depth	16.9" (429 mm)
Gross Weight	16 lbs (7.26 kg)
Packaging (W x H x L)	27" (686 mm) x 8" (203 mm) x 24" (610 mm)
Available Color	No Paint


Expansion Slots

Up to 2 full height expansion slot(s)


Drive Bays

Optional Upto 4 x 2.5" fixed with bracket Upto 1 x 3.5" fixed drive bay


Front Panel

Buttons	Power On/Off button System Reset Button
LEDs	2 Network Activity LEDs Fan Fail/System Over Heat LED HDD activity LED Power Status LED


Motherboard (for CSE- 514-505)

X10DRL-i	X10DRL-CT
X10DRD-iNTP	X10DRD-iTP
X10DRD-LTP	X10DRL-iT
X10DRL-C	X10DRD-iNT
X10DRD-iT	X10DRD-i
X10DRD-LT	X10DRD-L
X11SSW-F	X10SDV-TP8F
X10SDV-7TP8F	X10SDV-7TP4F
X10SDV-2C-TP8F	X10SDV-2C-TP4F
X10SDV-4C+-TP4F	X10SDV-4C-7TP4F
X10SDV-2C-7TP4F	X10SRM-TF
X10SRM-F	X11SSW-4TF
X11SSW-TF


Servers (for CSE- 514-505)

6018R-MD

Systems Cooling

Fans	4 x 40x56mm PWM fan(s) Optional 2 x fans for AOC cooling


Operating Environment (System)

Operating Temperature Range	5°C - 35°C (41°F - 95°F)
Non-Operating Temperature Range	-40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range	8% - 90% (non-condensing)
Non-Operating Relative Humidity Range	5% - 95% (non-condensing)


Power Supply
1U 500W Multi-output power supply w/ PMbus, 80Plus Platinum
Power Efficiency	93%
Total Output Power and Input	500W with Input 100 - 240Vac
AC Input Frequency	50-60Hz
Dimensions (L x W x H)	180 x 100 x 40 mm
Output Type	24pin ATX
-12V	Max: 0.2A / Min: 0A
+12V	Max: 41A / Min: 0.5A (100Vac - 240Vac)
+5V	Max: 15A / Min: 0.2A
+3.3V	Max: 12A / Min: 0.2A
+5Vsb	Max: 3A / Min: 0A
Certification	Platinum Certified


Regulatory (Power Supply)

Power Supply Safety / EMC	BSMI CCC CE/EMC FCC class A UL/CB UL/CUL


Standard Parts List

	Part Number	Qty	Description
Cable(S)	CBL-0156L	1	CBL,FRONT CNTL,16 TO 16 PIN,RA,RND TUBE,40CM,28AWG
Cable(S)	CBL-0160L	1	NEMA5-15P to C13 US power cord 16AWG 6ft, PBF (default for high watt)
Fan(s)	FAN-0156L4	4	40x40x56 mm 13K-11K RPM Counter-rotating Fan,RoHS/REACH
Front Panel	MCP-280-51201-0N	1	Front control board (FP512) for SC512 (surface-mounted LED)
Cooling Fan & Accessory	MCP-320-81801-0B	3	SC818G 2x 4056 fan tray,HF,RoHS,PBF
Cooling Fan & Accessory	MCP-340-00035-0B	2	Dummy fan 40x56mm for 40x56 counter-rotating fan (cost-effective)
Part(s)	MCP-260-00078-0N	1	1U I/O shield for X10 and X9 Server MB with 5X5mm vent hole and EMI Gasket,RoHS/REACH,PBF
Power Supply & Accessory	PWS-505P-1H	1	1U 500W Multi-output, Platinum level w/ PMbus 24pin, W100xL180xH40mm,RoHS/REACH
Mounting Rail(s)	MCP-290-00102-0N	1set	Outer rail, quick-release type, 25.6
Mounting Rail(s)	MCP-290-00108-0N	1set	Inner rail, front, short, quick-release type
Rear Window	MCP-240-51402-0N	1	rear window for SC514 single PWS chassis


Optional Parts List

	Part Number	Qty	Description
Rail	MCP-290-00056-0N	-	Quick-release outer rail for square hole short-depth rack (19"~26.4")
Fan Kit	CBL-0296L	-	4 pin to 4 pin fan extension cord, for PWM fan. 23cm. 24AWG
Chassis parts	MCP-120-00078-0N	-	Optional shorter 1U riser card bracekt for X9DRL-7F/EF
Chassis parts	MCP-240-51403-0N	-	Riser card bracket for WIO MB in SC514-441,505,HF,RoHS/REACH
Tray(s)	MCP-220-51401-0N	-	Dual 2.5" fixed HDD bracket for SC514,515(MCP-220-51402-0N required)
Tray(s)	MCP-220-51402-0N	-	3.5in fixed HDD tray for SC514,515
Tray(s)	MCP-220-00044-0N	-	Dual 2.5" fixed HDD bracket
Rail	MCP-290-00016-0N	-	1U open rack bracket set for CSE-PT51L,MCP-290-00054-0N
IO shield	MCP-260-00041-0N	-	1U I/O shield for X9 socket R server MB with Gasket
