Key Features
• Tool-less design, support quick installation and maintenance (HDD )
• High-density storage server solution in 2U
• 3 drawers to load up to 24 hot swap drives
• Tool-less 3.5” & 2.5” drive trays
• Silicon gaskets to absorb vibration from the sides of the drives

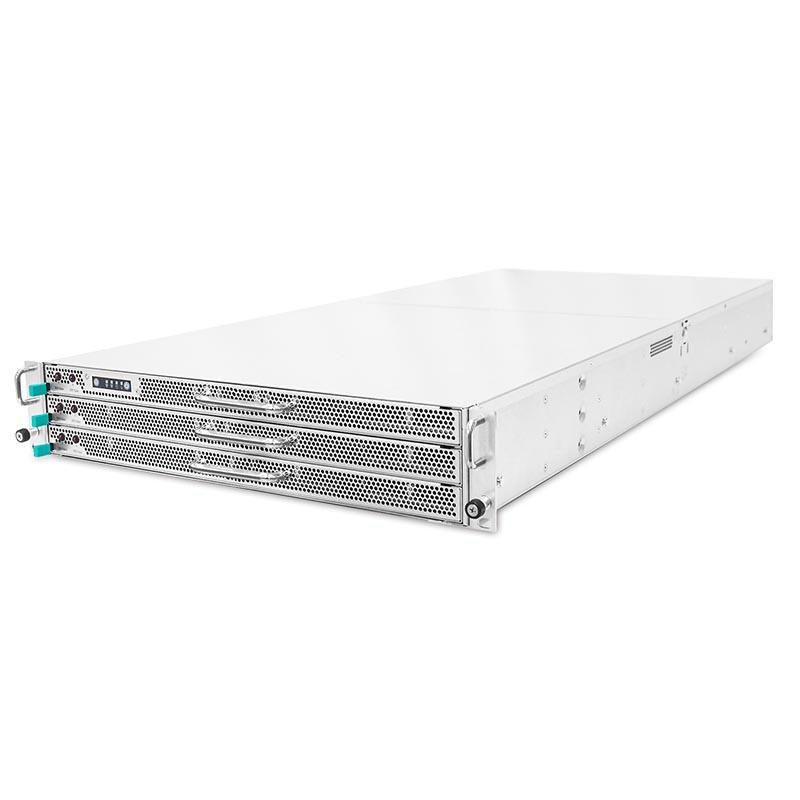

As the manager or operator of a data center, it is important to maintain tight control over costs while providing the maximum uptime for your customers. For that reason, AIC has developed the RSC-2MS, a 2U 24-Bay storage server chassis. It enables data center services companies that run object storage applications a more efficient and economical solution. The tool-less design makes installation and maintenance quick and easy. Rubbers on the drive tray and silicon gaskets protect against vibrations. Its high-density, space-saving design saves you money. Its drives can be hot swapped at a moment’s notice, resulting in less downtime. Even though RSC-2MS was initially designed for data centers, the aforementioned features make it a good solution for media production as well. (Power supply is included. Motherboard is not included.)
Key Features
• Tool-less design, support quick installation and maintenance (HDD )
• High-density storage server solution in 2U
• 3 drawers to load up to 24 hot swap drives
• Tool-less 3.5” & 2.5” drive trays
• Silicon gaskets to absorb vibration from the sides of the drives
Dimensions (W x D x H) |
• mm : 438 x 838 x 88 • inches : 17.2 x 33 x 3.46 |
Industry Standard |
EIA-RS310D |
Material |
SGCC |
Color |
No coating |
Cooling |
4 x 60x38mm PWM fans |
Power Supply |
800W 1+1 redundant PSU PMBus 1.2 80+ Platinum |
Expansion Slots |
7 low profile |
Front Panel |
System power switch and system reset switch |
LED Indicators |
• System Power • HDD • LAN 1 • LAN 2 |
System Board |
Up to 12” x 10.5” ATX M/B |
Drive Bays |
• Internal : 24 x 3.5” hot swap • Internal : 2 x 2.5” hot swap (7mm SSD) |
Backplanes |
6 x 4-port SATA/SAS backplanes with SFF-8643 connectors |
Storage Temperature |
0°C(32°F) ~ 50°C(122°F) |
Humidity |
5% ~ 95% non-condensing |
Gross Weight (w/ PSU & Rail) |
• kgs: 31 • lbs: 68.35 |
Package Dimension (W x D x H) |
• mm: 605 x 1140 x 318 • inches: 23.8 x 35 x 12.5 |
Cubic Feet |
7.9 |
Container Load Quantity |
• 20’ : 126 • 40’ : 266 • 40’ H : 304 |
Mounting |
Standard : 33'' slide rail |
