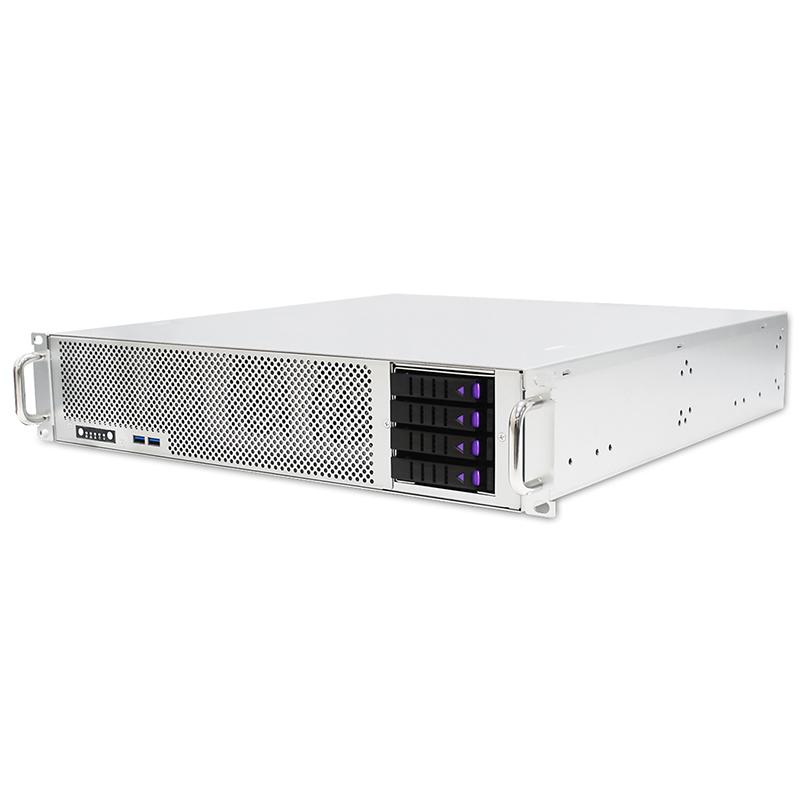

2U Short Chassis with Swappable Front or Rear IO Access-800Wx2 Red't platinum PSU with 7x low profile slots rear window

Key Features

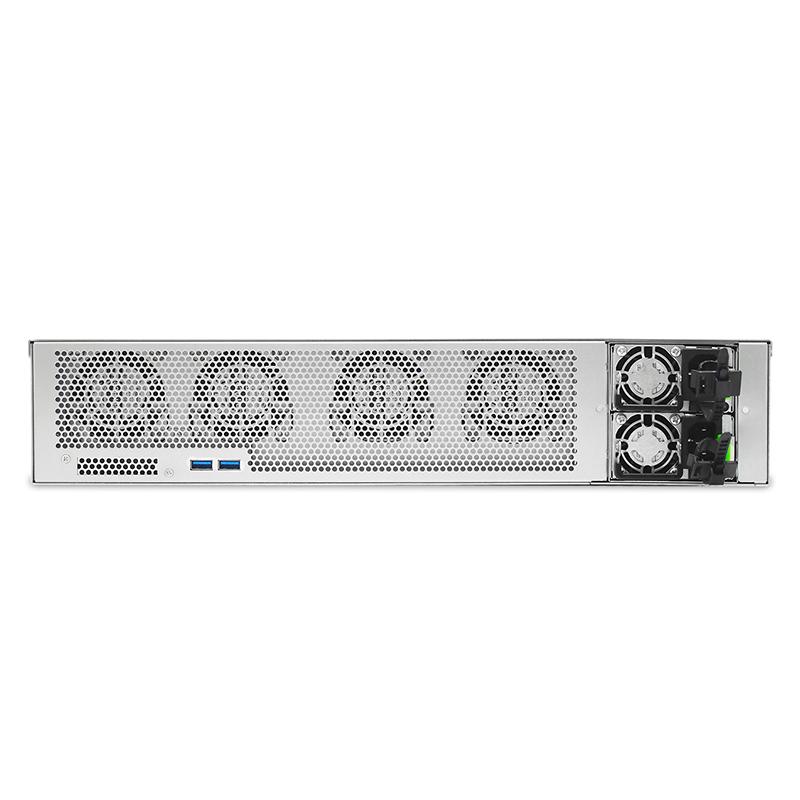

• Flexible front I/O and rear I/O application options
• 4 x easy swap fans for superior cooling
• Supports up to 4 x 2.5” external hot swap drive bays
• Includes a redundant PSU 80+ Platinum
• Two front access USB 3.0 ports
• Short-depth design for space critical applications
• Supports 2 post or 4 post rack deployment

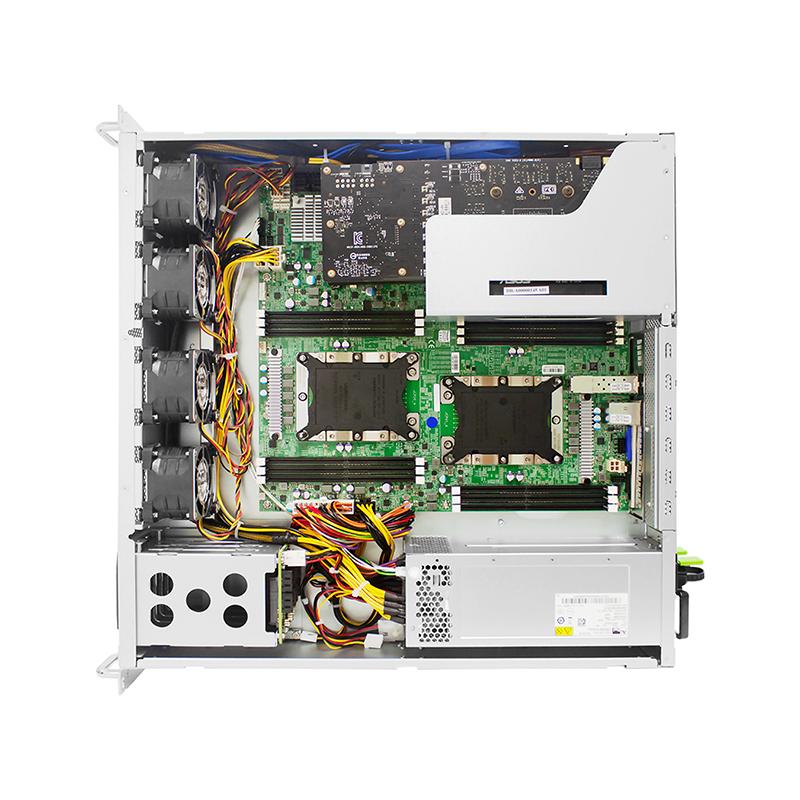

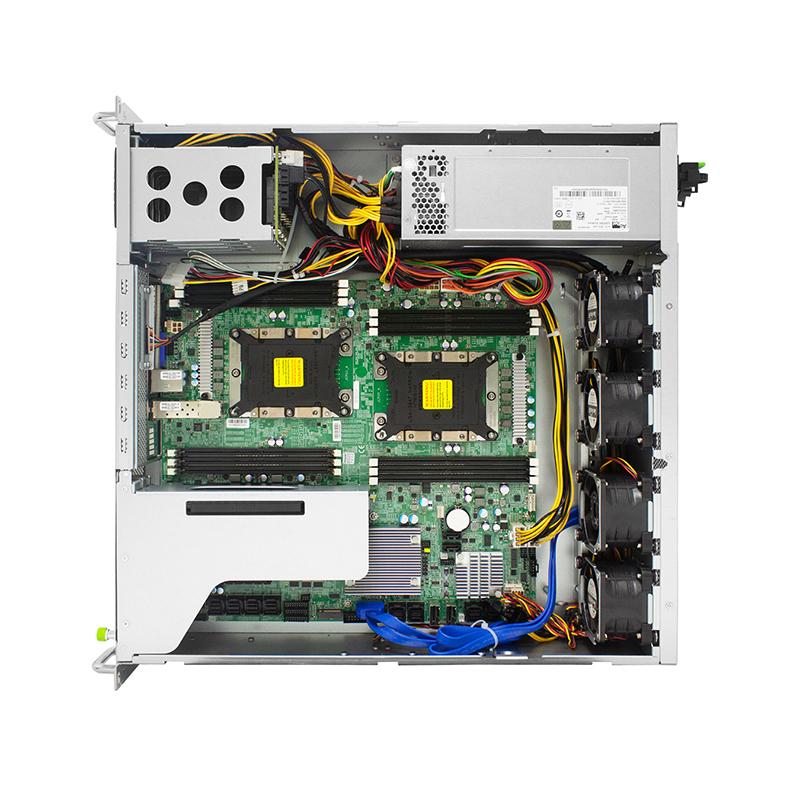

The IPC-C2E-BAR8-LP chassis is AIC's first model focused on the Edge-Computing appliance sector. Its flexibility to support both front and rear I/O is its biggest feature enabling it to be used in many scenarios. The clever design of the chassis allows for certain adjustments/changes to be made in the field to suit the enviroment during installation by field engineers. The 450mm short depth makes it easy to install into many different cabinets and racks.

Dimensions (W x D x H) (with chassis ears)
• mm : 438 x 450 x 88
• inches : 17.2 x 17.7 x 3.5

Industry Standard
EIA-RS310D

Material
Heavy-duty preplated SPGC cold-rolled steel

Color
Front Panel : Silver

Cooling
Standard :
• 4 x 60x38mm easy swap fans

Power Supply
Standard:
• 800W 1+1 redundant PSU 80+ Platinum

Expansion Slots
Standard:• 7 x low profile slots
Options;

• 1 x PCIe x16 Gen3 single slot + 1 x PCIe x8 Gen4 single slot
• 1 x PCIe x16 Gen4 dual slot + 1 x PCIe x8 Gen4 single slot

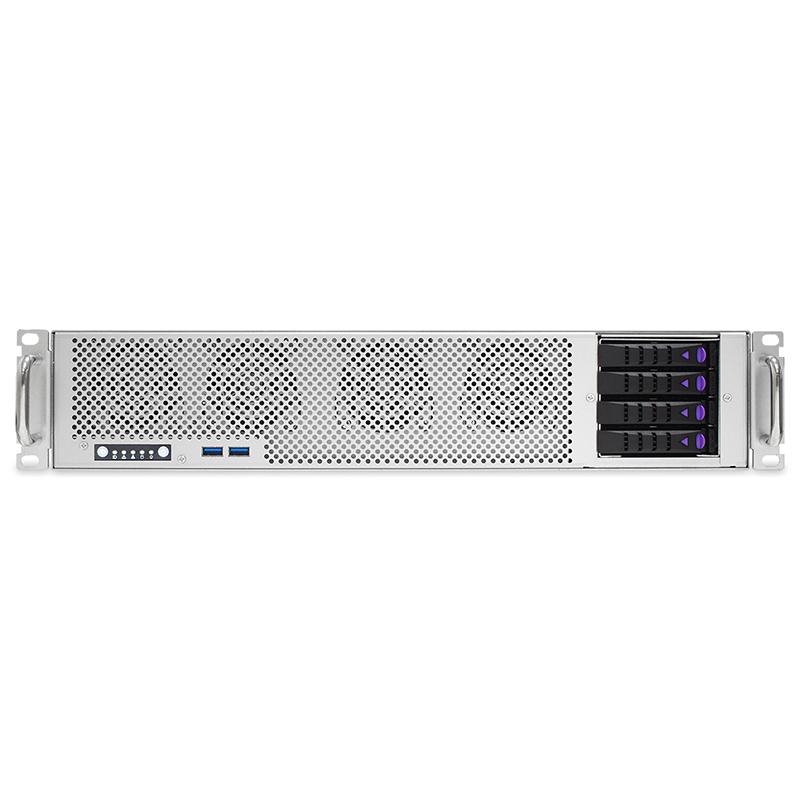

Front Panel
• System power on/off
• System reset
• 2 x USB ports

LED Indicators
• Power status
• LAN activity
• Drive activity

System Board
Up to 12”(W) x 13”(D) EATX compliant MB

Drive Bays
External : 4 x 2.5”

Backplane
2pcs dual ports SATA BP to support 4 x SATA

Storage Temperature
0ºC(32ºF) ~ 50ºC(122ºF)

Humidity
5%~95% non-condensing

Gross Weight (w/ PSU & Rail)
• kgs: 13
• lbs: 28.5

Package Dimension (W x D x H)
• mm : 655 x 580 x 244
• inches : 25.8 x 22.8 x 9.6

Cubic Feet
3.2

Container Load Quantity
• 20’ : 295
• 40’ : 625
• 40’ H : 720

Mounting
Optional :
• 20” slide rail--(IPC-SY057)

* All specifications are subject to change without notice.
