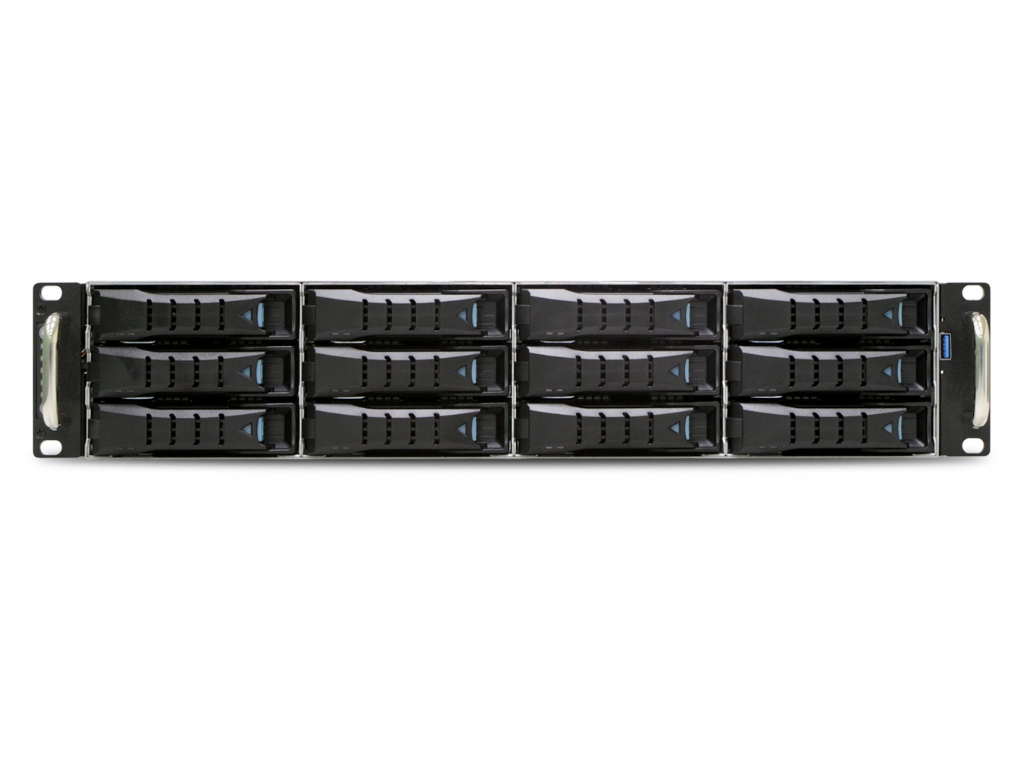

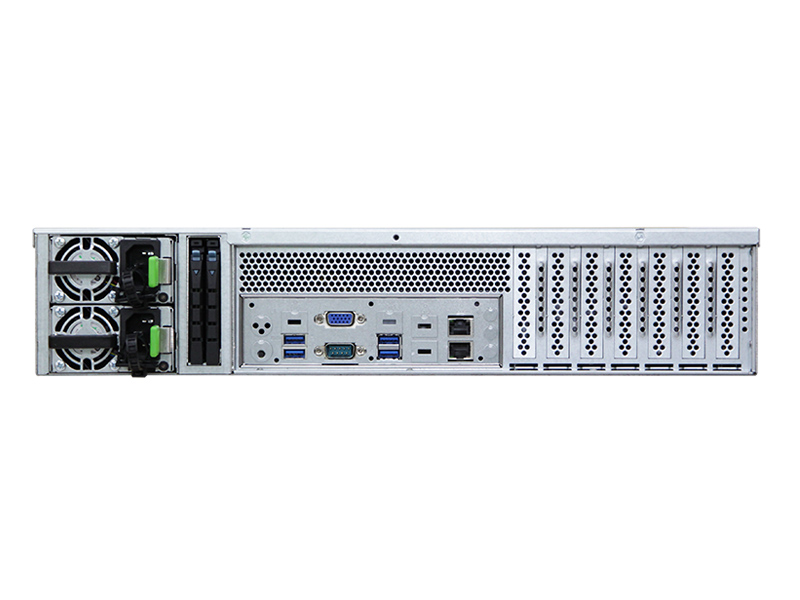

AIC 2U 12G Short Storage Server Chassis 12 x 3.5" Hot-Swap + 2 x 7mm 2.5" Rear Hot-Swap with 550W x2 Redundant PSU (Rails Included)

RSC-2ETS-R55-EOB-12G-LP

£1,306.80

ex. VAT

(£1,568.16

inc. VAT)

Great news, we have this product in stock at the moment for next working day delivery.

Want it delivered by 26th Nov 2024? Order by 4.30pm on Monday and get it delivered the next working day as standard.

Looking for Compatible Products?

Hour

Min

Sec

Order this product before 4.30pm today and get it delivered for only £9.20* on 26th Nov 2024.

* Shipping price is for UK Mainland. Other destinations are calculated at the checkout.

Frequently bought together

AIC 4U 12G Short Storage Server Chassis 24 x 3.5" Hot-Swap + 2 x 2.5" Rear Hot-Swap with 800W 1+1 Redundant PSU (Rails Included) * Expander On Board

£1,586.40 ex VAT

(£1,903.68 inc VAT)

Key Features

• Tool-less design supports quick installation and easy maintenance:
- Tool-less 3.5” & 2 x 7mm Rear OS drive trays
- Tool-less top covers
- Tool-less backplane
- Tool-less slide rails
• 12Gb/s SAS expander chip on backplane
• Supports power cycling on single drive
• Specially designed hot swap and low power consumption fans minimize rotational vibration and provide superior cooling
• 3.5” drive tray comes with 4 screw holes to adapt to 2.5” drive
• One front access USB 3.0 port
• Comes with an 80+ Platinum redundant PSU

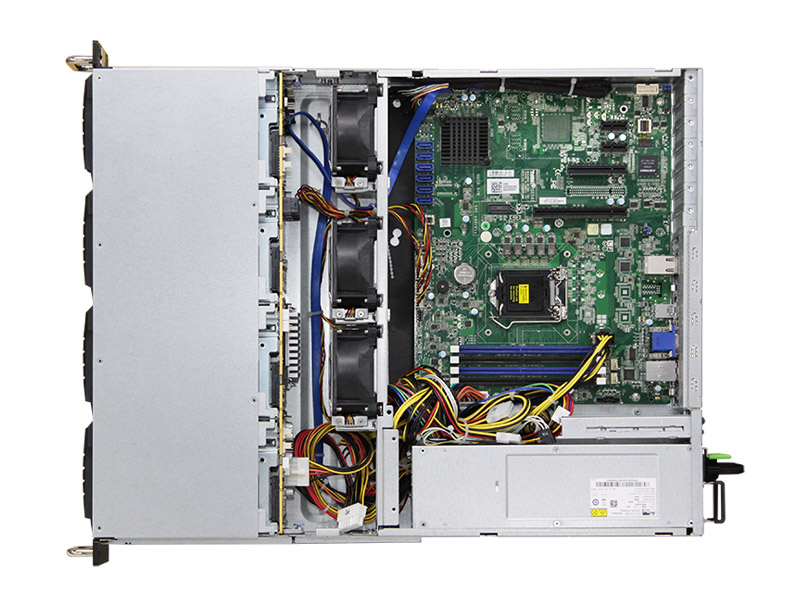

The IPC-C2ETS-R55-EOB-12G-LP is a T series 2U 12-bay SAS/SATA storage server chassis. With its tool-less 3.5" and 2.5" hard drive carriers, top covers and backplane, the IPC-C2ETS-R55- EOB-12G supports quick installation and easy maintenance. This tool-less design solution also features 3 x low-power consumption hot swap fans and shorter depth dimension, offering a cost-effective solution ideally suited for a broad range of applications.

Dimensions (W x D x H) (with chassis ears)
• mm : 483 x 560 x 88
• inches : 19 x 22 x 3.5

Industry Standard
EIA-RS310D

Material
Heavy-duty preplated SGCC cold-rolled steel

Color
Front Panel : Black

Cooling
Standard :
• Middle : 3 x 80x38mm PWM & low-power consumption hot swap fans

Power Supply
Standard :
• 550W 1+1 redundant PSU PMBus 1.2 80+ Platinum

Expansion Slots
7 low-profile

Front Panel
• Power on/off
• System reset
• 1 x USB 3.0 port

LED Indicators
• Power
• LAN
• Drive
• Alert

System Board
12”(W) x 9.6”(D) ATX MB

Drive Bays
• External : 12 x 3.5” hot swap + Rear : 2 x 7mm Rear OS drive trays

Backplane
1 x 12-port 12Gb SAS backplane with 28-PHY expander chip and 3 SFF-8643 connectors

Storage Temperature
0°C(32°F) ~ 50°C(122°F)

Humidity
5% ~ 95% non-condensing

Gross Weight (w/ PSU & Rail)
• kgs : 23.1
• lbs : 50.9

Package Dimension (W x D x H)
• mm : 590 x 885 x 288
• inches : 23.2 x 34.8 x 11.3

Cubic Feet
4.65

Container Load Quantity
• 20’ : 205
• 40’ : 420
• 40’ H : 505

Mounting
Standard : 28” tool-less slide rail
