The IPC-C2F-B-XP-LP chassis is designed with flexibility in mind. Four 5.25” bays allows user to install from DVD, CD, or different types of hot-swappable HDD canisters. A hot-swap redundant power supply is also supported for high availability. It is the ideal platform for entry-level File Server and Network Attached Storage applications.
Dimensions (W x D x H) (with chassis ears)
• mm : 482.6 x 685.8 x 88.8
• inches : 19 x 27 x 3.5
Industry Standard
EIA-RS310D
Material
Heavy-duty preplated SGCC cold-rolled steel
Color
Black
Cooling
Standard :
• Middle : 2 x 80x32mm + 1 x 40x28mm easy swap fans
Add-on :
• Middle : 3 x 40x28mm fans for upgrade
Power Supply
Please see Optional Product for details
Expansion Slots
• 7 low profile

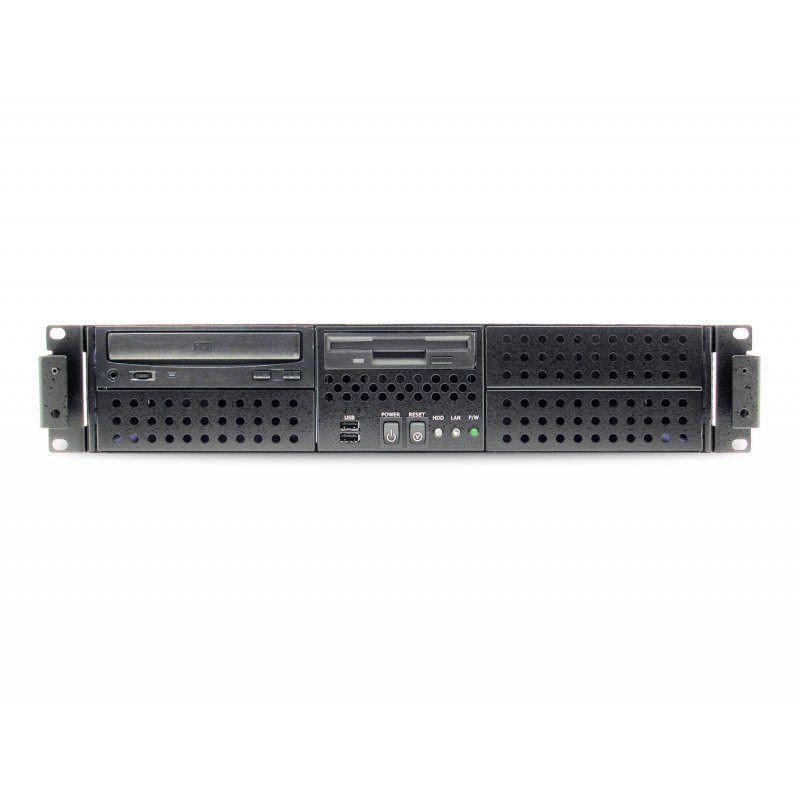

Front Panel
• Power on/off
• System reset
• 2 x USB ports
LED Indicators
• Power
• LAN
• Drive
System Board
Up to 12”(W) x 13”(D) E-ATX/SSI EEB 3.6 compliant MB
Drive Bays
• External : 4 x 5.25” & 1 x 3.5”
• Internal : 1 x 3.5”
Storage Temperature
0°C(32°F) ~ 50°C(122°F)
Humidity
5% ~ 95% non-condensing
Gross Weight (w/o PSU & Rail)
• kgs : 15
• lbs : 33
Package Dimension (W x D x H)
• mm : 588 x 852 x 259
• inches : 23.1 x 33.5 x 10.2
Cubic Feet
4.6
Container Load Quantity
• 20’ : 205
• 40’ : 425
• 40’ H : 510

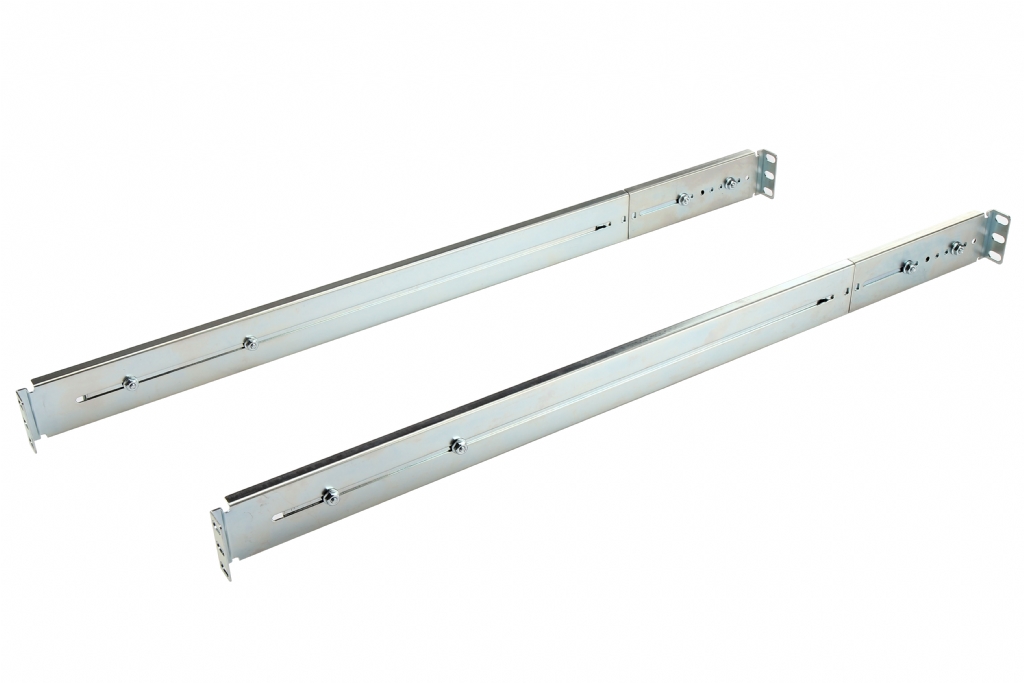

Mounting
Please see Optional Product for details
* All specifications are subject to change without notice.
