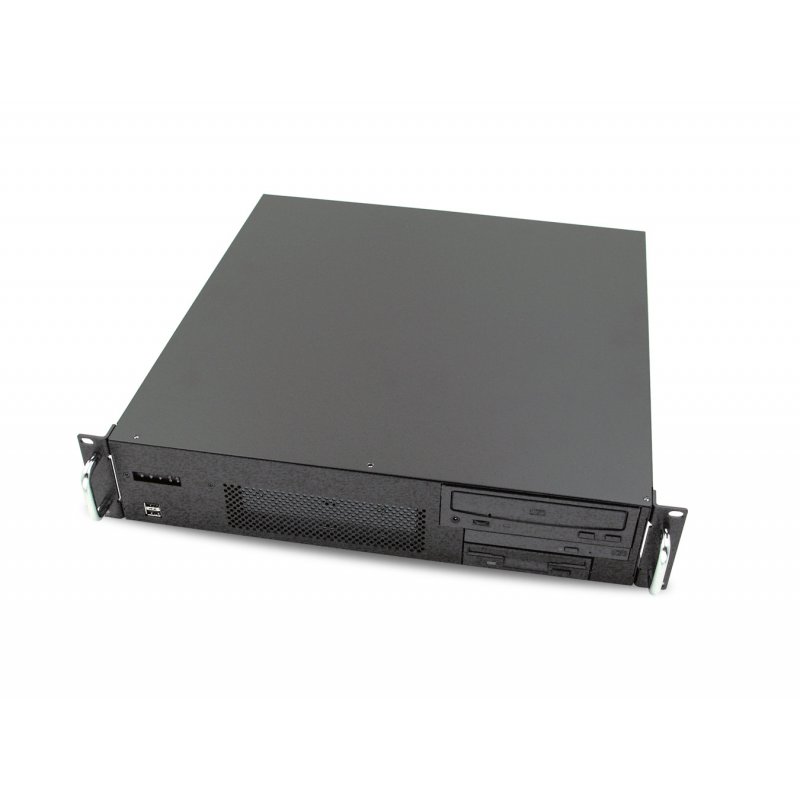

AIC 2U Rugged Short Chassis 1 x 5.25

Key Features

• Rugged design to meet most applications.
• Short depth design for space critical application
• Front access dual USB ports
• 2 x middle fans + 1 x rear blower fan for superior cooling
• 300 watt PSU Included
• Includes riser card mounting bracket
• Optimised For 3 x PCI Slots via Riser Card (Please See Optional Extras For Details)

Features And Benefits

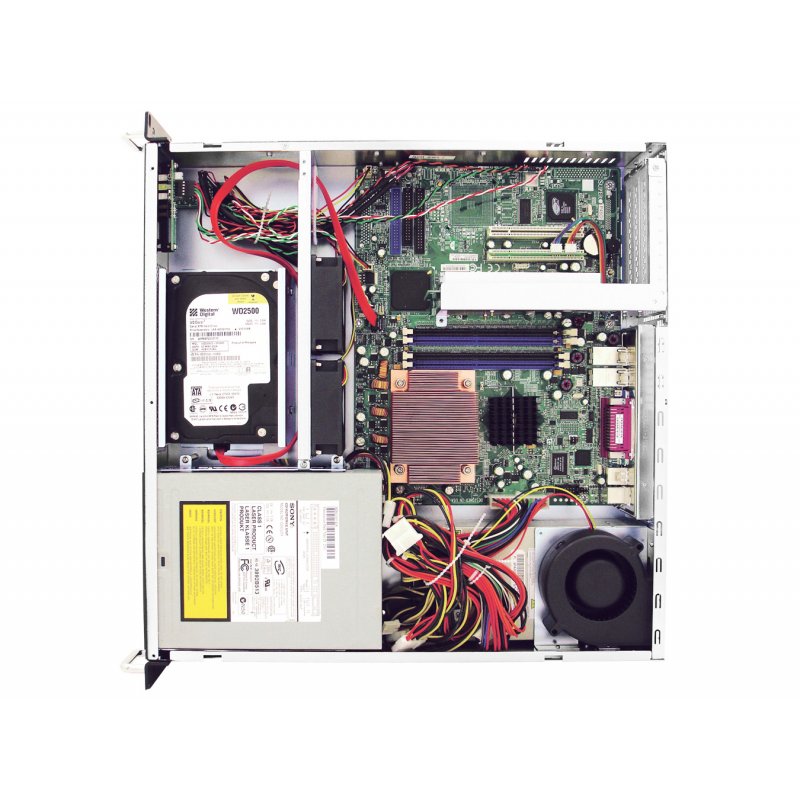

The IPC-C2A-BAS3-PCI chassis is designed specifically for Entry-level server, Computer Telephony and Appliance applications with 17” depth and excellent air flow. It supports a full range of single processor-based ATX size motherboards.

Dimensions (W x D x H) (with chassis ears)
• mm : 482.6 x 431.8 x 88.8
• inches : 19 x 17 x 3.5

Industry Standard
EIA-RS310D

Material
Heavy-duty SGCC cold-rolled steel

Color
Black

Cooling
• Middle : 2 x 80x25mm fans
• Rear : 1 x 97mm blower

Power Supply
Please see Optional Product for details *Industrial PSU Only

Expansion Slots
• 3 full height via Riser Card (please see Optional Product for details)

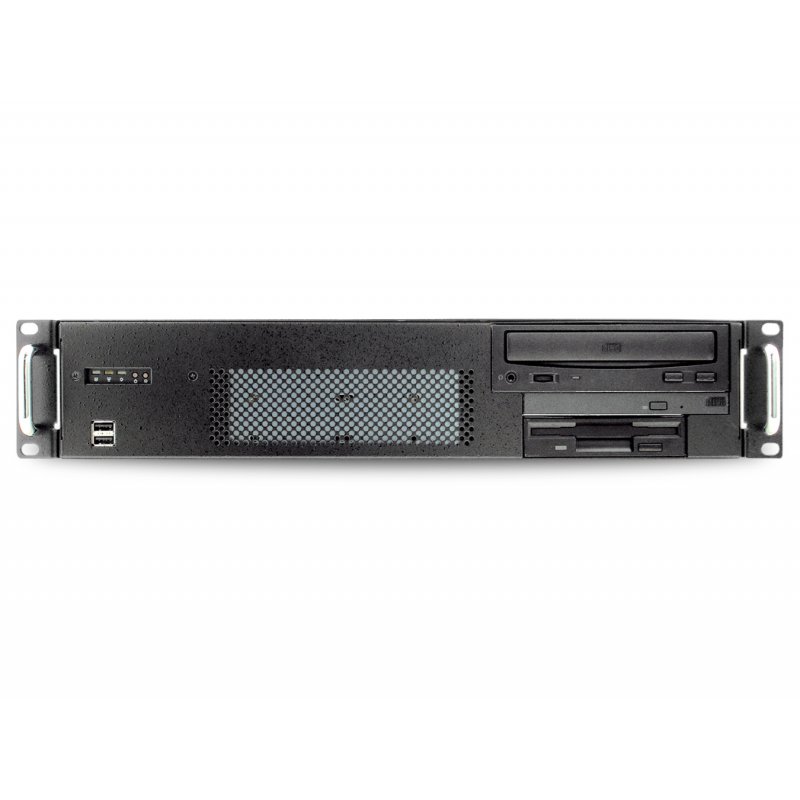

Front Panel
• Power on/off
• System reset
• 2 x USB ports

LED Indicators
• Power
• LAN
• Drive

System Board
Up to 12”(W) x 9.6”(D) ATX compliant MB

Drive Bays
• External : 1 x 5.25”, 1 x 3.5” & 1 x Slim DVD-ROM
• Internal : 3 x 3.5”

Storage Temperature
0°C(32°F) ~ 50°C(122°F)
Humidity
5% ~ 95% non-condensing

Gross Weight (w/ PSU; w/o Rail)
• kgs : 12.7
• lbs : 28

Package Dimension (W x D x H)
• mm : 588 x 598 x 248
• inches : 23.1 x 23.5 x 9.8

Cubic Feet
2.8

Container Load Quantity
• 20’ : 340
• 40’ : 695
• 40’ H : 940

Mounting
Please see Optional Product for details
* All specifications are subject to change without notice.
