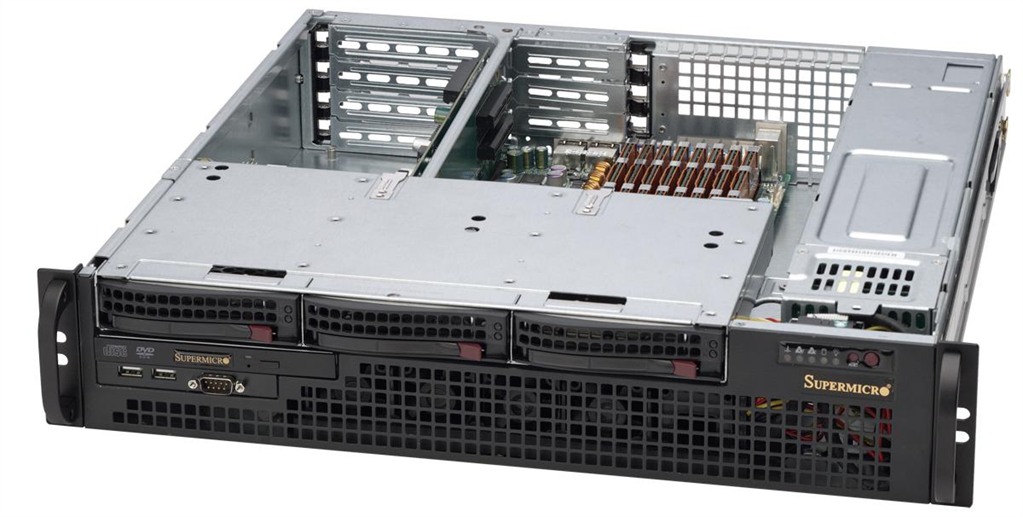

Supermicro SuperChassis 825MTQ-R700UB (Black)

CSE-825MTQ-R700UB

Sorry, but this product is no longer available to purchase online.

Please contact us to discuss alternative products which may be suitable.

Looking for Compatible Products?

More from this brand

Product Description


Product SKUs

CSE-825MTQ-R700UB	SuperChassis 825MTQ-R700UB (Black)


Form Factor

2U chassis support for motherboard size - 12" x 13", 13.68" x 13" E-ATX


Processor Support

Supports dual, single Intel® / AMD processors


Dimensions

Height	3.5" (89mm)
Width	17.2" (437mm)
Depth	17.7" (450mm)
Gross Weight	35 lbs (15.9kg)
Available Colors	Black


Expansion Slots (with UIO card)

• 4x Full-height Expansion Slots • 3x Low-profile Expansion Slots


Drive Bays

Hot-swap	3x 3.5" SAS / SATA Hot-swap drive trays SAS or enterprise SATA HDD only recommended


SAS / SATA Backplane

1x SAS / SATA backplane w/ Enclosure Management


Peripheral Drives

DVD-ROM	Slim DVD-ROM drive


Front Panel

Buttons	• Power On/Off button • System Reset button
LEDs	• Power LED • Hard drive activity LED • 2x Network activity LEDs • System Overheat LED • Power fail LED
Ports	2x USB Ports + DB9 COM Port


System Cooling

Fans	4x 4cm Counter-rotating Fans



Operating Environment (System)

Operating Temperature Range	5°C ~ 35°C (41°F ~ 95°F)
Non-Operating Temperature Range	-40°C ~ 60°C (-40°F ~ 140°F)
Operating Relative Humidity Range	8% ~ 90% (non-condensing)
Non-Operating Relative Humidity Range	5% - 95% (non-condensing)


Power Supply

700W (1 + 1) Redundant AC-DC high-efficiency power supply w/ PFC
AC Voltage	100 - 240V, 60-50Hz, 10 - 4 Amp
+5V standby	4 Amp
+12V	57 Amp
With Power Distributor	+5V: 30 Amp +3.3V: 24 Amp -12V: 0.6 Amp


Regulatory (Power Supply)

Power Supply Safety / EMC	USA - UL listed Canada - CUL listed Germany - TUV Certified EN 60950/IEC 60950-Compliant CB Report CCC Certification


Standard Parts List

	Part Number	Qty	Description
Chassis	CSE-825MTQ-R700UB	1	2U Compact Chassis (Black)
Backplane	BPN-SAS-825MTQ-O-P	1	BPN-SAS-825MTQ-O-P
Power Supply	PWS-702A-1R	2	700W 1U REDUNDANT POWER SUPPLY MODULE
Power Distributor	PDB-PT825-8820	1	SC825 20PIN REDUNDANT POWER DISTRIBUTOR


Optional Parts List

	Part Number	Qty	Description
Heatsink / Retention	1U Heatsink	-	Please refer to our Thermal Components Matrix
Mounting Rails	MCP-290-00058-0N	-	19" to 26.6" rail set, Quick Release, Tool-less
Peripheral Drives	FPD-TEAC-S(B) MCP-220-82503-0B MCP-220-00007-01 MCP-290-00040-0B MCP-290-00041-0B	- - - - -	Slim TEAC Floppy Drive (B = Black) Slim Floppy Drive Kit Black USB/COM port tray FDD or USB Dummy Cover (0B = Black) DVD-ROM Drive Dummy Cover (0B = Black)
Peripheral Drives	DVM-TEAC-824B DVM-TEAC-DVD-SBT2 DVM-PNSC-DVD-SBT2	- - -	Black slim IDE DVD (8x DVD, 24x CDR), TEAC Black slim SATA DVD (8x DVD, 24x CDR), TEAC Black slim SATA DVD (8x DVD, 24x CDR), Panasonic
Trays	MCP-290-00036-0B	-	Black DVD dummy tray support 1x 2.5" slim HDD
Power	CSE-PT0130L	-	Dummy Power Supply
Front Bezel ( Compatibility Table )	MCP-210-82502-0B	-	Front Bezel Cover, Black (optional)
LCD/OLED Solutions	-	-	Please reference the LCD/OLED Display Solutions for details
Adaptor HDD carrier	MCP-220-00043-0N	-	Adaptor HDD carrier to install 2.5" HDD in 3.5" HDD tray
