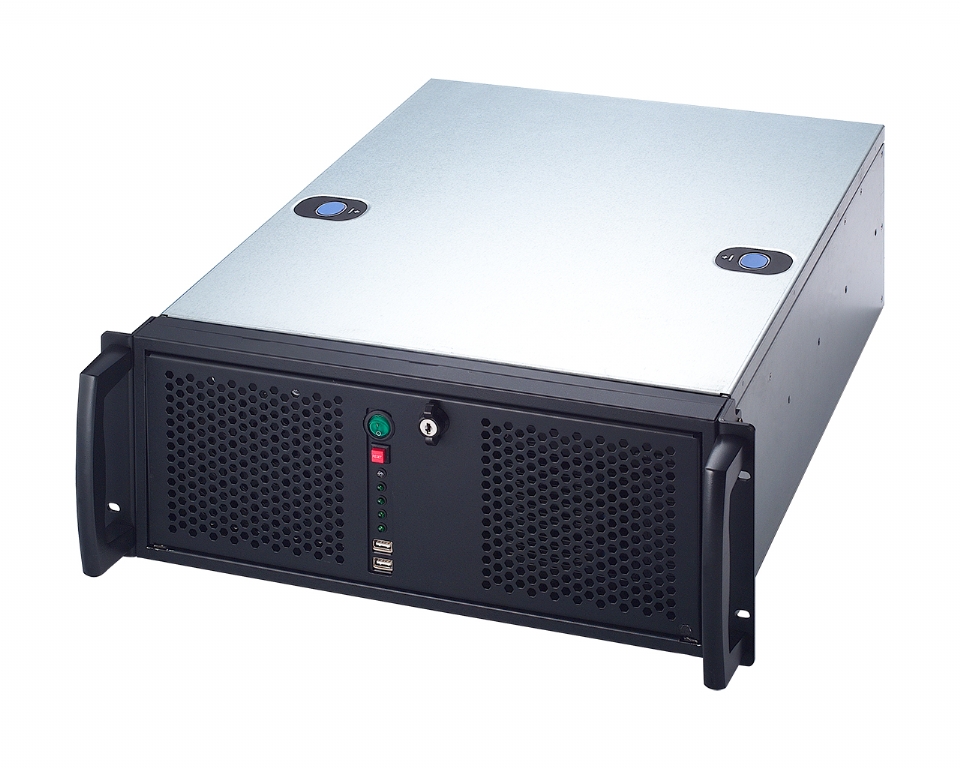

Chenbro RM42200 4U Rackmount Chassis

RM42200-F1
Chenbro RM42200 4U Rackmount Chassis
Call our Solutions Specialists - 01283 576162
Great news, we have this product available for special order on a 5 day lead time.

To learn more about this product complete the form below and one of our team will get right back to you.

I want to receive the latest offers and updates about new technology releases for Server Case via email.
Submit
Looking for Compatible Products?
Product Description

Features & Benefits

  • Supports M/B up to 12” x 10.5”
  • Optional 15-slot rear window for industry backplane
  • Available for rackmount and stand-alone installation
  • Rotatable 5.25” cage to keep device in horizontal position

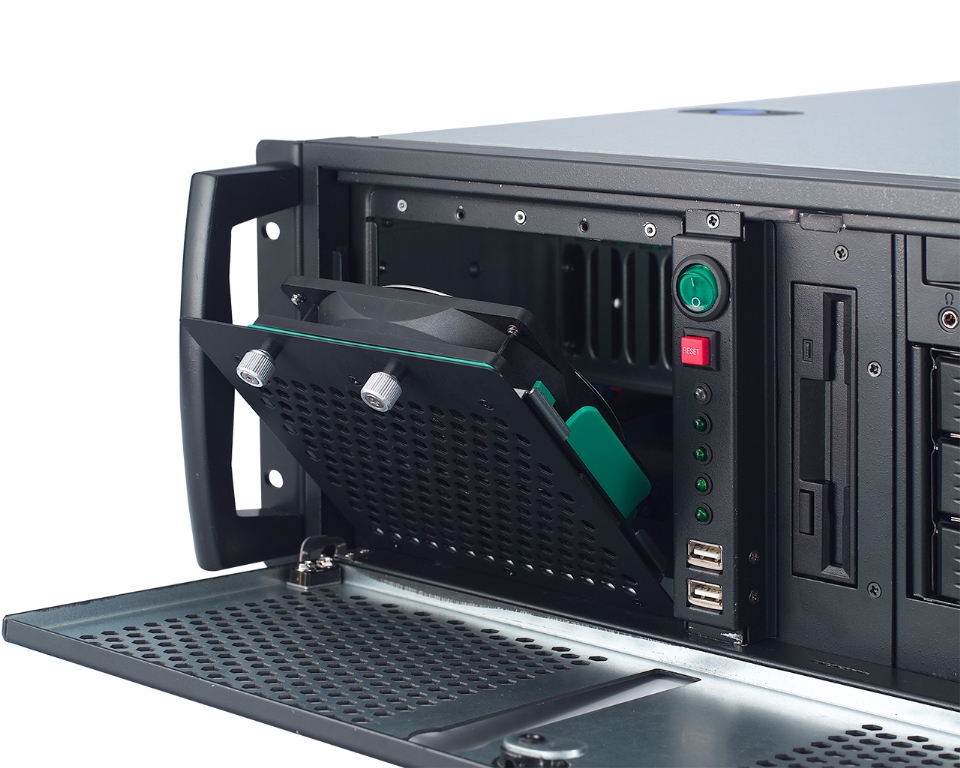

  • Dedicated front 120mm fan for add-on card cooling
  • Card retainer to hold low profile and full height add-on cards
  • User friendly design on front key lock and lifting handle (stand-alone)
  • Supports PS/2 single or mini-redundant PSU



Specifications

Technical Details
Case Form Factor 4U Rackmount
Motherboard Compatibility Mini-ITX, Micro ATX, Standard ATX (12" x 10.5")
Drive Bays

External 5.25"

3
External 3.5" 2
Internal 3.5" 3
Internal 2.5" 0
Hotswap 3.5" 0
Hotswap 2.5" 0
Slim Optical 0
Slim FDD 0
Hot-Swap Backplane Not Applicable
Expansion Slots Full Height 7
Low Profile 0
Cooling 1x Front Mounted 120mm PWM Included
2x Rear Mounted 80mm Optional
Power Supply Form Factor Standard ATX or 4U Mini Redundant
Front Panel Connectors, Switches & Indicators Power Switch YES
Reset Switch YES
USB 2.0 2
USB 3.0 0
Serial 0
Indicators Power, LAN, and HDD LEDs
Colour Silver
Material SGCC
Dimensions & Weights
Packaging Single Box
Dimensions 522 x 430 x 176 (mm), 20.5” x 16.9” x 6.9”
Weight 13.4kg (Approx)
What's Included
  • 1 x Chassis
  • 1 x Accessory Box
Reviews

Customer Reviews

There are currently no reviews against this product. Be the first to write a review!

Write a Review

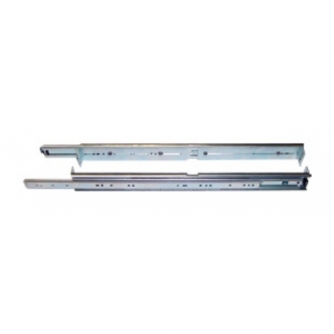

Compatible Products
Downloads

Product downloads

Please see below our available downloads for this product. If there is a download that isn't listed please contact us. Please also have a look at our Installation/Setup Instructions page.
